3-644463-9

点击放大查看

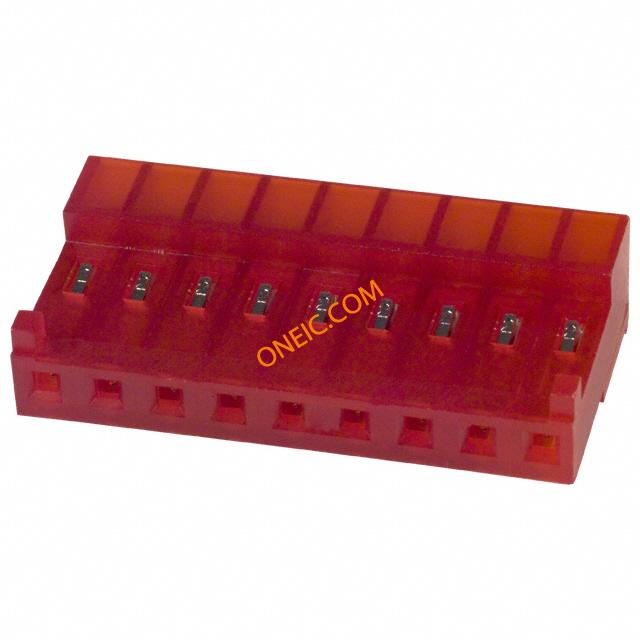

3-644463-9

制造商
TE Connectivity Ltd.
描述Conn IDC Connector RCP 9 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 9POS 22AWG MTA156 Headers & Wire Housings 9P CONN ASSY 22 AWG RED Conn IDC Connector RCP 9 POS 3.96mm IDT RA Cable Mount Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA156 CONN ASSY 22AWG RED
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
UL档案号E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
材料阻燃等级UL 94V-2

电气参数

额定电压600 VAC供电电压600
连接器阻抗IDC最大额定电流7 A

机械参数

颜色Red间距3.96 mm
高度9.02 mm [ .355 in ]长度35.66 mm [ 1.404 in ]
包装方式Bulk导线类型Discrete or Ribbon Cable
壳体颜色白色电缆类型分离式导线, 绞线
导线线规22 AWG端接方式IDT
触头类型Female Socket安装类型Free Hanging (In-Line)
连接器类型Receptacle接触镀层Tin Over Nickel
触点时序Without安装样式Wire
排数1壳体镀层Nickel
外壳材料（壳体）标准插入件材料铜合金
触头材料Copper Alloy壳体材料Nylon
包装数量250面板安装类型不带
电缆端接方式IDC端接样式IDC
第一触头极性Socket (Female)触点数9
端接表面处理带有接触件端接Locking Lance
绝缘直径2.41 mm [ .095 in ]位数9
兼容外壳尺寸（如TM-700等）MTA .156 头安装孔直径带有
接触件表面处理 - 配合锡典型触点布局同轴
接触镀层厚度80µin (2.03µm)静电放电屏蔽带有
护套（绝缘）厚度.762 µm, 30 µin

产品信息

备注肋之间的条纹可能会减少类型IDC Connector
连接器性别RCP系列MTA-156
产品特性Closed End, Polarizing Key可密封否
产品子类型Connector Assemblies

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]
