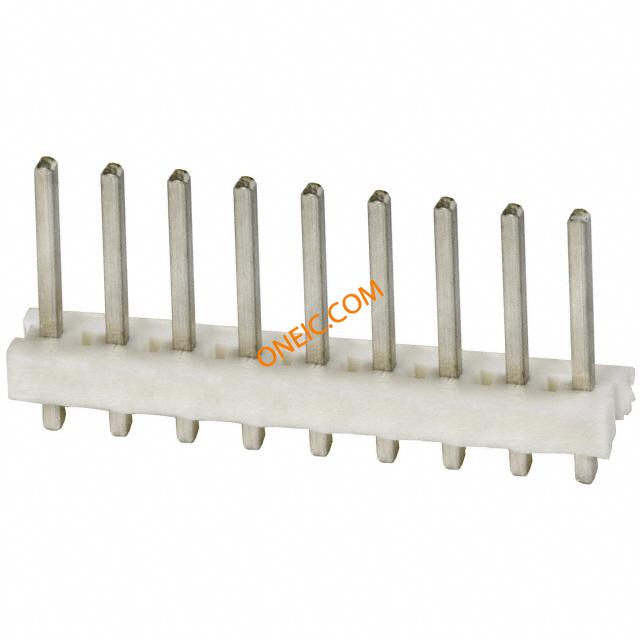

640383-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Unshrouded Header HDR 9 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 9POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 9 Way 1 Row Straight PCB Header, Solder Termination, 7A Conn Unshrouded Header HDR 9 POS 3.96mm Solder ST Thru-Hole Product Highlights:Connector9 PositionsConnector Type = Header - PinMTA-156 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Header,MTA156,straight,3.96mm,9way TE Connectivity MTA-156 系列 3.96mm节距 9路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 09P MTA156 HDR ASSY STR SQ SN |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| UL阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600 V ac | 供电电压 | 600 |
| 最大额定电流 | 7A | ||
机械参数
| 颜色 | Natural | 间距 | 3.96 mm |
| 长度 | 35.66 mm [ 1.404 in ] | 密封型 | Not Sealed |
| 包装方式 | Bulk | 方向 | 直 |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Tin Over Nickel | 触点时序 | Without |
| 安装样式 | 不带 | 引脚数 | 9 |
| 排数 | 1 | 封装形式 | Plug |
| 壳体镀层 | Nickel | 插入件材料 | 铜合金 |
| 触头材料 | Copper Alloy | 壳体材料 | 聚酯 - GF |
| 包装数量 | 1000 | 面板安装类型 | 通孔 - 焊接 |
| 主要材料 | Connector | 端接排数 | 焊接 |
| 端接样式 | 公端 | 触点数 | 9 |
| 位数 | 9 | 兼容外壳尺寸（如TM-700等） | MTA .156 连接器组件或 SL .156 连接器组件 |
| 安装孔直径 | 不带 | 接触件表面处理 - 配合 | 锡 |
| 典型触点布局 | 直插式 | 接触长度 - 配合 | 0.400" (10.16mm) |
| 端子柱长度 | 3.56 mm [ .14 in ] | 接触镀层厚度 | 3.81 – 8.89 µm [ 150 – 350 µin ] |
| 静电放电屏蔽 | 不带 | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | MTA-156 | 覆盖范围 | 无覆盖 |
| CAD图纸 | 3D CAD Model | 制造商全称 | MTA-156Series |
| 产品子类型 | 公端 | 应用细节 | Power |
| 加载位置数 | All | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
| 封装热阻 | 1.6 mm [ .063 in ] | ||
