点击放大查看

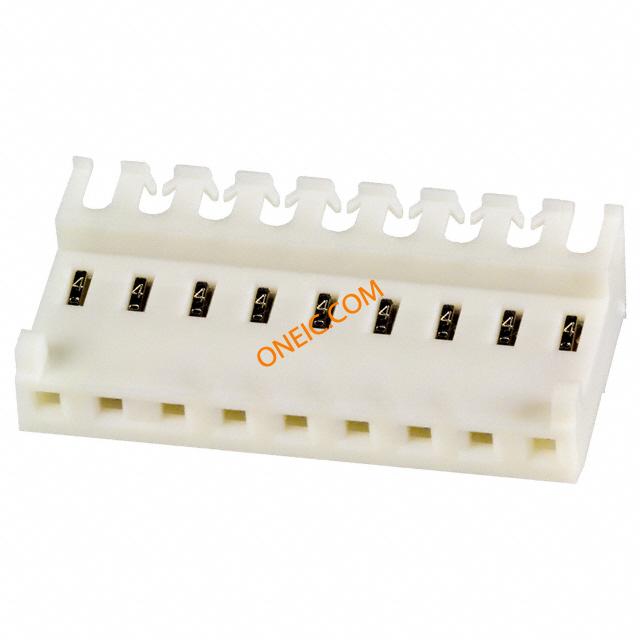

3-644472-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector RCP 9 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 9POS 24AWG MTA156 |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 颜色 | White | 间距 | 3.96 mm |
| 包装方式 | Bulk | 导线类型 | Discrete or Ribbon Cable |
| 导线线规 | 24 AWG | 端接方式 | IDT |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 接触镀层 | Tin Over Nickel |
| 排数 | 1 | 电缆端接方式 | IDC |
| 触点数 | 9 | 位数 | 9 |
| 接触镀层厚度 | 80µin (2.03µm) | ||
产品信息
| 类型 | IDC Connector | 连接器性别 | RCP |
| 产品特性 | Feed Through, Polarizing Key | ||
