点击放大查看

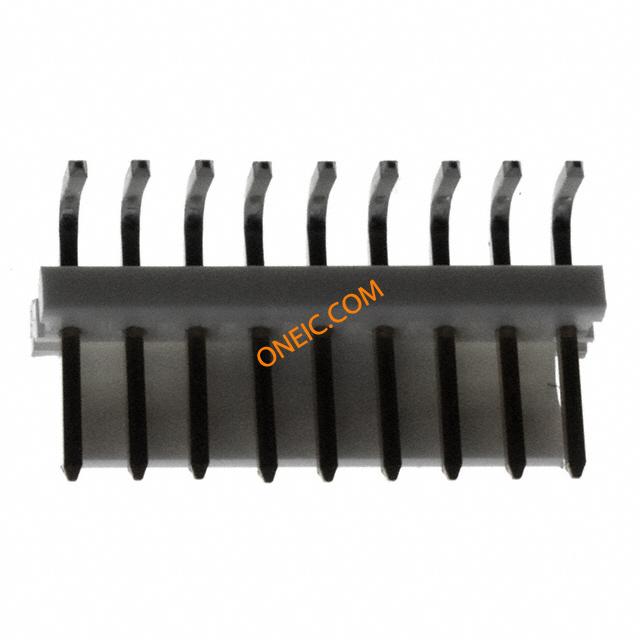

3-641210-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board HDR 9 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .156 9POS 30AU Headers & Wire Housings 09P MTA156 HDR FLRA FB 30AU LF Conn Wire to Board HDR 9 POS 3.96mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA156 HDR FLRA FB 30AU LF |
| 分类 |
商业参数
| 其他名称 | A31694 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA分类 | 已认证 |
| UL阻燃等级 | UL 94V-0 | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 600 V | 开关功能 | Friction Lock |
| 供电电压 | 600 | 最大额定电流 | 7 A |
机械参数
| 颜色 | Natural | 间距 | 3.96 mm |
| 高度 | 10.8 mm [ .425 in ] | 长度 | 35.66 mm [ 1.404 in ] |
| 密封型 | 不密封 | 包装方式 | Bulk |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Gold Over Nickel | 触点时序 | Without |
| 紧固类型 | Friction Lock | 安装样式 | 不带 |
| 引脚数 | 9 | 排数 | 1 |
| 外壳材料（壳体） | 镍 | 插入件材料 | 铜合金 |
| 触头材料 | Copper Alloy | 壳体材料 | Polyester |
| 安装特性 | 不带 | 包装数量 | 500 |
| 面板安装类型 | 通孔 - 焊接 | 端接排数 | 3.18 mm [ .125 in ] |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 9 | 位数 | 9 |
| 外壳尺寸-插件 | 插头 | 执行器方向 | 前部 |
| 兼容外壳尺寸（如TM-700等） | MTA .156 连接器组件或 SL .156 连接器组件 | 安装孔直径 | 不带 |
| 接触件表面处理 - 配合 | 哑光 | 典型触点布局 | 直插式 |
| 接触长度 - 配合 | 0.400" (10.16mm) | 端子柱长度 | 3.18 mm |
| 接触镀层厚度 | 30µin (0.76µm) | 静电放电屏蔽 | 不带 |
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | MTA-156 | 产品子类型 | Headers |
| 应用细节 | Wire-to-Board | 加载位置数 | All |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
| 封装热阻 | 1.57 mm [ .062 in ] | ||
