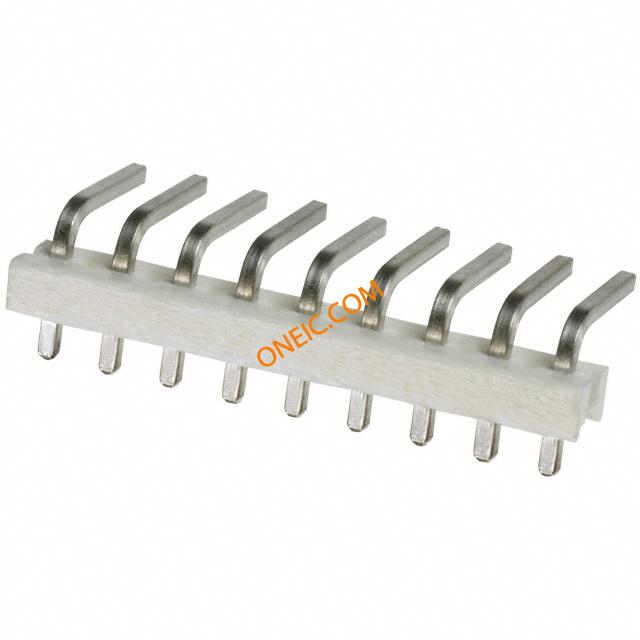

640385-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Unshrouded Header HDR 9 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 9POS .156 TIN Headers & Wire Housings FLAT HEADER R.A. 9P Square post tin Conn Unshrouded Header HDR 9 POS 3.96mm Solder RA Thru-Hole Product Highlights:Header9 PositionsPreloadedHeader Gender = PlugContact Gender = PinSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA156 HDR ASSY SQ R/A |
| 分类 |
商业参数
| 其他名称 | A19879 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 2000 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| UL阻燃等级 | UL 94V-0 | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 7 A | ||
机械参数
| 颜色 | Natural | 间距 | 3.96 mm |
| 长度 | 35.66 mm [ 1.404 in ] | 密封型 | Not Sealed |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Tin |
| 触点时序 | Without | 安装样式 | 不带 |
| 引脚数 | 9 | 排数 | 1 |
| 封装形式 | Plug | 壳体镀层 | Nickel |
| 插入件材料 | 铜合金 | 触头材料 | Copper Alloy |
| 壳体材料 | Polyester | 包装数量 | 2000 |
| 面板安装类型 | 通孔 - 焊接 | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 触点数 | 9 |
| 位数 | 9 | 兼容外壳尺寸（如TM-700等） | MTA .156 连接器组件或 SL .156 连接器组件 |
| 安装孔直径 | 不带 | 接触件表面处理 - 配合 | 锡 |
| 典型触点布局 | 直插式 | 接触长度 - 配合 | 0.390" (9.91mm) |
| 端子柱长度 | 3.18 mm | 接触镀层厚度 | 100 µm [ 2.54 µin ] |
| 静电放电屏蔽 | 不带 | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | MTA-156 | 产品子类型 | Headers |
| 应用细节 | Wire-to-Board | 加载位置数 | All |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
| 封装热阻 | 1.6 mm [ .063 in ] | ||
文档与媒体
相关型号
