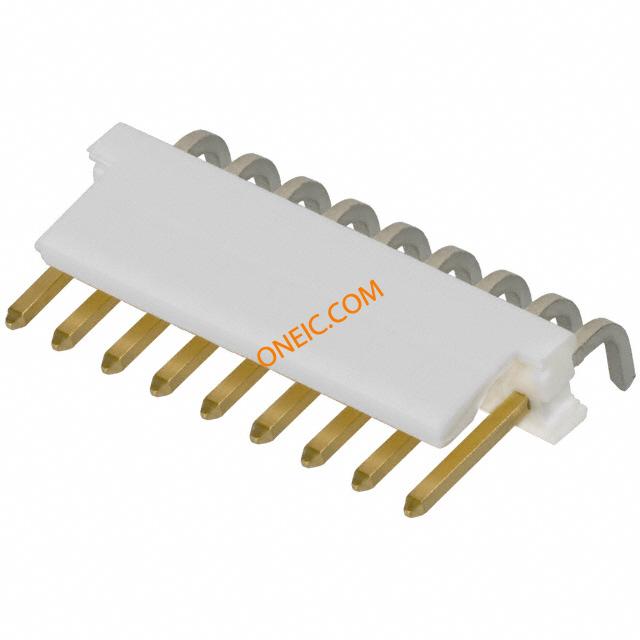

641210-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board HDR 9 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .156 9POS 30AU Headers & Wire Housings FRCTN LK HDR RA 9P Square post gold Conn Wire to Board HDR 9 POS 3.96mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA156 HRD FL RA FB 30AU |
| 分类 |
商业参数
| 其他名称 | A26191 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | UL等级 | 获得认可 |
| UL档案号 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 额定电压 | 600 V | 开关功能 | Friction Lock |
| 供电电压 | 600 | 接触电阻 | 3 mohm |
| 连接器阻抗 | 焊接 | 最大额定电流 | 7 A |
| 最小供电电压 | 600VAC | ||
机械参数
| 颜色 | Natural | 深度 | 18.72 mm |
| 间距 | 3.96 mm | 高度 | 7.62 mm |
| 长度 | 35.66 mm [ 1.404 in ] | 包装方式 | Bulk |
| 壳体颜色 | 自然 | 端接方式 | Solder |
| 触头类型 | Male Pin | 触点形状 | Square |
| 外壳颜色 | White | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Gold Over Nickel |
| 触点时序 | Without | 紧固类型 | Friction Lock |
| 安装样式 | Through Hole | 排数 | 1 |
| 壳体镀层 | Tin-Lead | 外壳材料（壳体） | 摩擦锁 |
| 插入件材料 | 铜合金 | 触头材料 | Copper Alloy |
| 壳体材料 | Polyester | 总长度 | 35.66 mm |
| 包装数量 | 500 | 面板安装类型 | 通孔 - 焊接 |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 9 | 端接表面处理 | 不带 |
| 位数 | 9 | 兼容外壳尺寸（如TM-700等） | MTA .156 连接器组件或 SL .156 连接器组件 |
| 触头长度-柱 | 3.18 mm [ .125 in ] | 安装孔直径 | 不带 |
| 接触件表面处理 - 配合 | 锡铅 | 典型触点布局 | 同轴 |
| 接触长度 - 配合 | 0.400" (10.16mm) | 表面贴装焊盘尺寸 | Without |
| 端子柱长度 | 3.18 mm | 接触镀层厚度 | 30µin (0.76µm) |
| 静电放电屏蔽 | 不带 | 直角致动器长度 | Front |
| 护套（绝缘）厚度 | 1.27 µm, 50 µin | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | MTA-156 | 可密封 | 否 |
| 产品子类型 | Headers | 应用细节 | Wire-to-Board |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55C to 105C | 封装热阻 | 1.6 mm [ .063 in ] |
文档与媒体
相关型号
3-644463-9
te connectivity / amp
Conn IDC Connector RCP 9 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 9POS 22AWG MTA156 Headers & Wire Housings 9P CONN ASSY 22 AWG RED Conn IDC Connector RCP 9 POS 3.96mm IDT RA Cable Mount Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA156 CONN ASSY 22AWG RED
3-644663-9
te connectivity / amp
Conn IDC Connector F 9 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 9POS 20AWG MTA-156 Headers & Wire Housings 09P MTA156 CONN ASSY 20AWG LF 09P MTA156 CONN ASSY 20AWG LF
3-644720-9
te connectivity / amp
Conn IDC Connector RCP 9 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 9POS 22AWG MTA-156 Headers & Wire Housings 09P MTA156 CONN ASSY 22AWG LF 09P MTA156 CONN ASSY 22AWG LF
3-641234-9
te connectivity / amp
Conn IDC Connector F 9 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 9POS 22AWG MTA-156
3-640599-9
te connectivity / amp
Conn IDC Connector F 9 POS 3.96mm IDT RA Cable Mount Headers & Wire Housings FEED THRU WO TAB 9P L.R. orange 18 AWG MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 9POS 18AWG MTA156 Conn IDC Connector F 9 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 9Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09PMTA156CONNASSY18AWGORA 09P MTA156 CONN ASSY 18AWG ORA
3-641174-9
te connectivity / amp
Conn IDC Connector F 9 POS 3.96mm IDT RA Cable Mount Headers & Wire Housings OBSOLETE CONN RCPT 9POS 20AWG MTA-156
3-641218-9
te connectivity / amp
Conn IDC Connector F 9 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 9POS 20AWG MTA-156 Headers & Wire Housings 09P MTA156 CONN ASSY 20AWG LF 09P MTA156 CONN ASSY 20AWG LF
3-641227-9
te connectivity / amp
Conn IDC Connector F 9 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 9POS 18AWG MTA-156 Headers & Wire Housings 09P MTA156 CONN ASSY 18AWG LF 09P MTA156 CONN ASSY 18AWG LF 09P MTA156 CONN ASSY 18AWG LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
3-641232-9
te connectivity / amp
Conn IDC Connector F 9 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 9POS 18AWG MTA-156
3-644472-9
te connectivity / amp
Conn IDC Connector RCP 9 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 9POS 24AWG MTA156
3-641171-9
te connectivity / amp
Conn IDC Connector F 9 POS 3.96mm IDT RA Cable Mount CONN RCPT 9POS 24AWG MTA-156
3-644466-9
te connectivity / amp
Conn IDC Connector RCP 9 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 9POS 20AWG MTA156 Headers & Wire Housings FEED THRU W TAB 9P L.R. yellow 20 AWG Conn IDC Connector RCP 9 POS 3.96mm IDT RA Cable Mount Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA156 CONN ASSY 20AWG YEL
3-644381-9
te connectivity / amp
Conn IDC Connector F 9 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 9POS 18AWG MTA-156 Headers & Wire Housings 09P MTA156 QUAD ASSY W/TBS C/E MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:9 PositionsWith ContactsHousing Gender = PlugContact Gender = ReceptacleConnector Style = Closed EndSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
3-641310-9
te connectivity / amp
Conn IDC Connector F 9 POS 3.96mm IDT RA Cable Mount T/R MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 9POS 26AWG .156 BLUE
3-644501-9
te connectivity / amp
Conn IDC Connector F 9 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 9POS 22AWG MTA-156 Headers & Wire Housings 09P MTA156 CONN ASSY 22AWG LF 09P MTA156 CONN ASSY 22AWG LF
3-644389-9
te connectivity / amp
Conn IDC Connector F 9 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 9POS 22AWG MTA-156 Headers & Wire Housings 09P MTA156 QUAD ASSY W/TB LF
3-644687-9
te connectivity / amp
Conn IDC Connector RCP 9 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 9POS 22AWG MTA-156

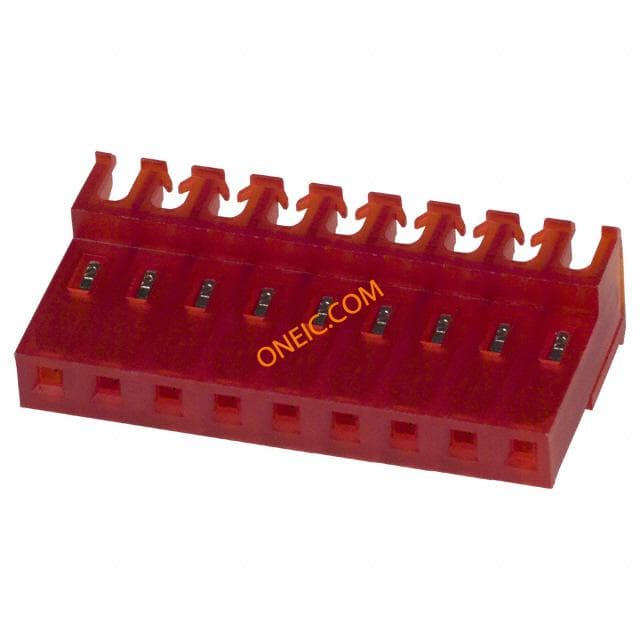

640606-9
