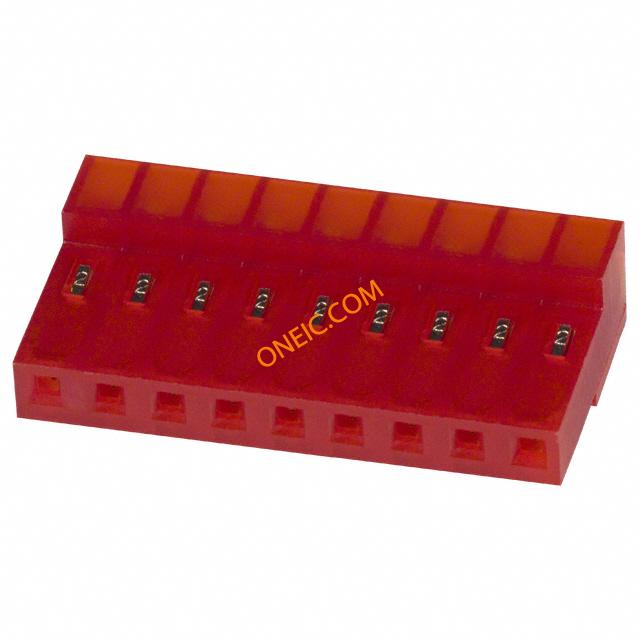

640433-9

点击放大查看

640433-9

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 9 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 9POS MTA-156 22AWG Headers & Wire Housings CLOSED W/O TABS 9P Red 22 AWG Conn IDC Connector F 9 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 9Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA156 CONN ASSY 22AWG RED
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

其他名称A26087产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量1

合规参数

RoHSContains lead / RoHS non-compliantUL等级获得认可
UL档案号E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
材料阻燃等级UL 94V-2

电气参数

额定电压600 VAC供电电压600
连接器阻抗IDC最大额定电流7 A

机械参数

颜色Red间距3.96 mm
高度9.02 mm [ .355 in ]长度35.66 mm [ 1.404 in ]
包装方式Bulk导线类型Discrete or Ribbon Cable
壳体颜色白色电缆类型分离式导线, 绞线
导线线规22 AWG端接方式IDT
触头类型Female Socket安装类型Free Hanging (In-Line)
连接器类型Receptacle接触镀层Tin-Lead Over Nickel
触点时序Without安装样式Wire
排数1外壳材料（壳体）标准
插入件材料铜合金触头材料Copper Alloy
壳体材料Nylon包装数量250
面板安装类型不带电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
触点数9端接表面处理带有
接触件端接Locking Lance绝缘直径2.41 mm [ .095 in ]
位数9兼容外壳尺寸（如TM-700等）MTA .156 头
安装孔直径不带接触件表面处理 - 配合锡铅
典型触点布局同轴表面贴装焊盘尺寸Without
接触镀层厚度80µin (2.03µm)静电放电屏蔽带有

产品信息

备注肋之间的条纹可能会减少类型IDC Connector
连接器性别F系列MTA-156
产品特性Closed End可密封否
产品子类型Connector Assemblies
