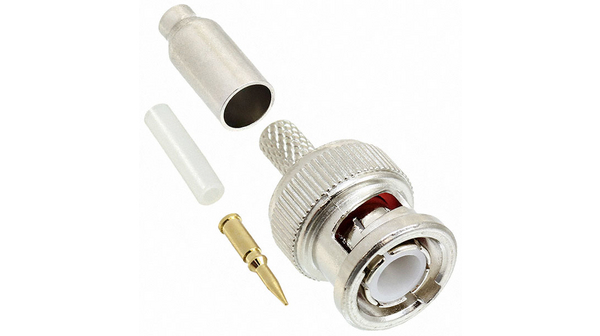

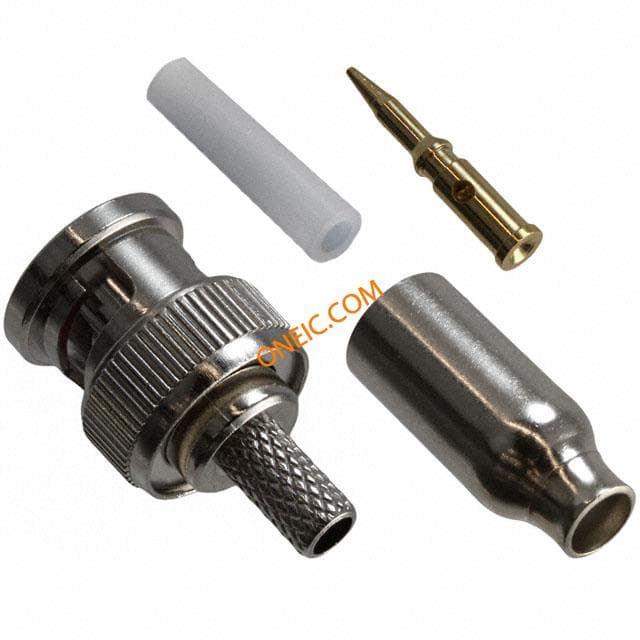

5-1634500-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn ZDC/BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold Over Nickel Individual RF Connectors Str Plg Hex Nickel 50Ohm BNC RF Connectors BNC Ni-pl straight plug, 50 ohm, RG174 RF Connectors / Coaxial Connectors Str Plg Hex Nickel 50Ohm Conn ZDC/BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold Over Nickel Individual Product Highlights:ConnectorConnector Type = ZDC/BNCPlugTerminate To Coaxial CableCoaxial Cable Termination Type = CrimpSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 PLUG, BNC, CRIMP, 50R, RG174A/U CONN BNC PLUG STR 50OHM CRIMP BNCSTRPLGHEX50OHMNICKELPLATEDRG174A/U,188A/U,316/U,URM95,KX3B,KX22 Plug; BNC; male; straight; 50Ω; KX22,KX3,RG174,RG188,RG316,URM95 BNC cable connector, straight 50 Ohm, 5-1634500-1, TE Connectivity TE Connectivity 直 50Ω 电缆安装 BNC 连接器 插头, 压接 端接, RG174 A/U, RG188 A/U, RG316/U电缆, 镀镍本体 BNC Str Plg Hex 50Ohm Nickel Plated RG17 |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | A116685 |
| 产品类别 | RF Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | ||
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 最大频率 | 4 GHz |
| 工作电压 | :500V | 接触电阻 | :1.5mohm |
| 击穿电压 | :1500V | 绝缘电阻 | :5000Mohm |
| 阻抗 - 不平衡/平衡 | :RG174 | ||
机械参数
| 尺寸 | Standard | 深度 | 13.7 mm |
| 重量 | 0.01 | 包装方式 | Bulk |
| 电缆类型 | RG-174A, RG-188A, RG-316, KX22A, KX38, URM95 | 本体表面处理 | Nickel |
| 电缆组 | RG-174A, 188A, 316, KX3B, KX22A, URM-95 | 方向 | Straight |
| 端接方式 | Crimp | 基体材料 | Zinc Alloy |
| 外壳颜色 | Silver | 安装类型 | Cable Mount |
| 外壳镀层 | Nickel | 行程角度 | Straight |
| 连接器类型 | Plug | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Bayonet Lock | 外壳涂层 | Nickel |
| 安装样式 | Cable | 壳体镀层 | Nickel |
| 连接器样式 | BNC | 触头材料 | Brass |
| 壳体材料 | Zinc | 总长度 | 24.7 mm |
| 包装数量 | 1 | 主要材料 | BNC |
| 连接器 - 电缆 | plug | 端接样式 | Crimp |
| 屏蔽层端接方式 | Crimp | 接触件端接 | Crimp |
| 介电材料 | Polymethylpentene (PMP) | 绝缘材料 - 类型 | Polymethylpentene |
| 绝缘材料 - 材质 | :Zinc | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Brass | 供应商器件封装 | Straight |
| 触点材料 - 镀层 | gold plated | 第一连接器安装类型 | :Cable |
产品信息
| SPG | 1 | 类型 | ZDC/BNC |
| 连接器性别 | PL | 系列 | :- |
| 极性 | Normal | 连接类型 | Coaxial Cable |
| 单元数量 | 1 | 射频系列/标准 | 1634500 |
环境参数
| 插拔次数 | :50 | 工作温度 | - 55 C to + 85 C |
