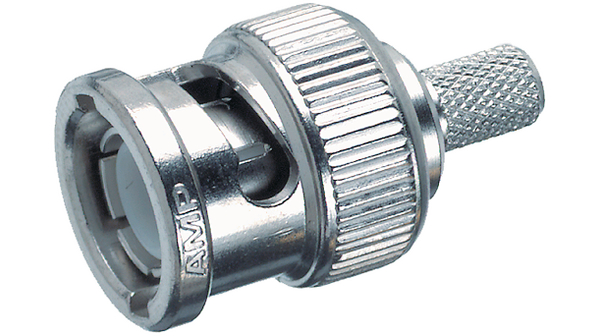

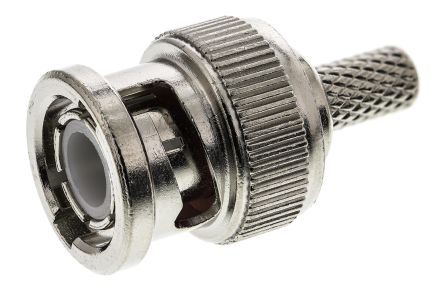

5-1634500-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn ZDC/BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold Over Nickel Individual BNC RF Connectors BNCSTRPLGHEX50OHMNCKPLTDRG58C/ BNC Ni-pl straight plug, 50 ohm, RG58 RF Connectors / Coaxial Connectors Str Plg Hex Nickel 50Ohm Conn ZDC/BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold Over Nickel Individual Product Highlights:ConnectorConnector Type = ZDC/BNCPlugTerminate To Coaxial CableNot StackedSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 RF COAXIAL, BNC, PLUG, CRIMP, 50OHM CONN BNC PLUG STR 50 OHM CRIMP BNCSTRPLGHEX50OHMNICKELPLTDRG58C/U,141A/U,URM43,76,BELDEN9907,KX15 Plug; BNC; male; straight; 50Ω; KX15,RG141,RG58C/U, URM43,URM76 Cable plug BNC straight 50 Ohm, 5-1634500-2, TE Connectivity TE Connectivity 直 50Ω 电缆安装 BNC 连接器 插头, 压接 端接, RG141 A/U, RG303/U, RG58 C/U电缆, 镀镍本体 BNC Str Plg Hex 50Ohm Nickel Pltd RG58C/ |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | A108184 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 最大频率 | 4GHz |
| 工作电压 | :500V | 接触电阻 | :1.5mohm |
| 击穿电压 | :1500V | 绝缘电阻 | :5000Mohm |
| 阻抗 - 不平衡/平衡 | :RG58 | ||
机械参数
| 尺寸 | Standard | 重量 | 0.01 |
| 包装方式 | Bulk | 电缆类型 | RG-58C, RG-141A, Belden 9907, KX15, URM43, URM76 |
| 本体表面处理 | Nickel | 电缆组 | RG-58 |
| 方向 | Straight | 端接方式 | Crimp |
| 基体材料 | Zinc Alloy | 外壳颜色 | Silver |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Plug, Male Pin | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Bayonet Lock | 外壳涂层 | Nickel |
| 安装样式 | CableMount | 壳体镀层 | :Nickel |
| 连接器样式 | BNC | 触头材料 | Brass |
| 包装数量 | 1 | 主要材料 | BNC |
| 连接器 - 电缆 | plug | 端接样式 | Crimp |
| 屏蔽层端接方式 | Crimp | 接触件端接 | Solder |
| 介电材料 | Polymethylpentene (PMP) | 绝缘材料 - 材质 | :Zinc |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Brass |
| 供应商器件封装 | Straight | 触点材料 - 镀层 | gold plated |
| 第一连接器安装类型 | :Cable | ||
产品信息
| SPG | 1 | 类型 | ZDC/BNC |
| 连接器性别 | PL | 系列 | :- |
| 极性 | Normal | 连接类型 | Coaxial Cable |
| 单元数量 | 1 | 射频系列/标准 | 1634500 |
环境参数
| 插拔次数 | :50 | 工作温度 | -55°C ~ 85°C |
文档与媒体
