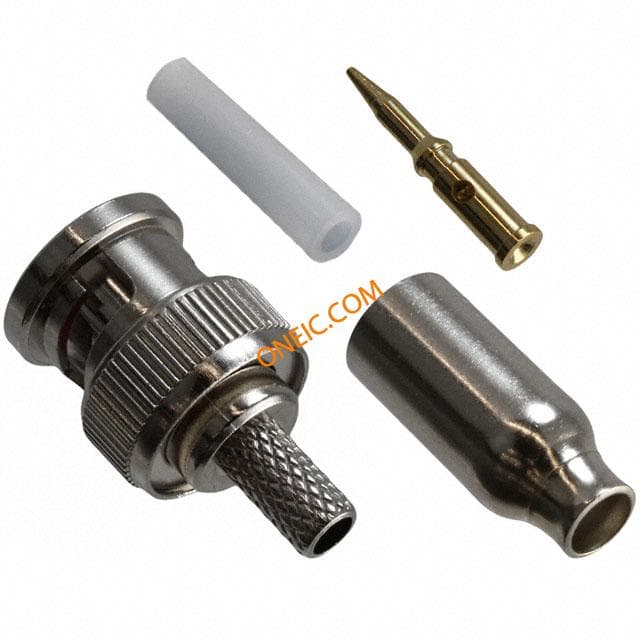

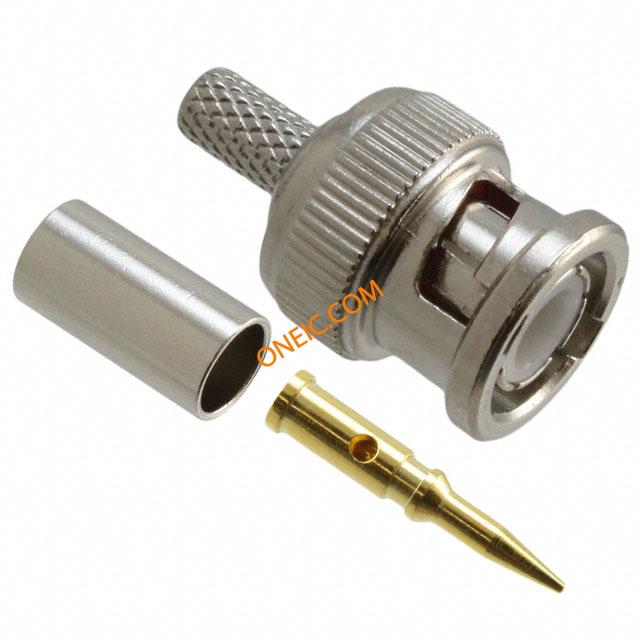

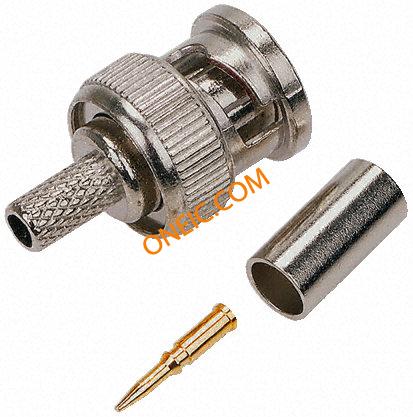

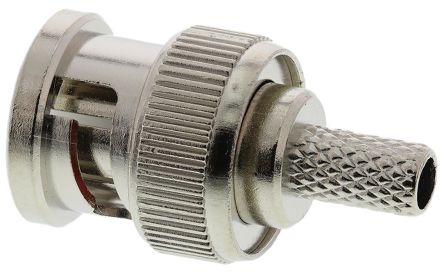

5-1634500-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn ZDC/BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold Over Nickel Tray BNC RF Connectors CONN BNC PLUG STR 50 OHM CRIMP BNC,strt,plug,hex,50ohm,nickel,RG58C RF Connectors / Coaxial Connectors Str Plg Hex Nickel 50Ohm Conn ZDC/BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold Over Nickel Tray Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 PLUG, BNC, CRIMP, 50R, RG58C/U TRAY BNCSTRPLGHEX50OHMNICKELPLTDRG58C/U,141A/U,URM43,76,BELDEN9907,KX15 TE Connectivity 直 50Ω 电缆安装 BNC 连接器 插头, 压接 端接, RG141 A/U, RG303/U, RG58 C/U电缆, 镀镍本体 BNC Str Plg Hex 50Ohm Nickel Pltd RG58C/ |
| 分类 |
商业参数
| 产品 | Connectors | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | ||
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500 V | 最大频率 | 4GHz |
| 工作电压 | :500V | 接触电阻 | :1.5mohm |
| 击穿电压 | :1500V | 绝缘电阻 | 5000 MOhms |
| 阻抗 - 不平衡/平衡 | :RG58 | ||
机械参数
| 尺寸 | Standard | 重量 | 0.01 |
| 包装方式 | Tray | 电缆类型 | Belden 9907, KX15, RG-58C, RG-141A, URM43, URM6 |
| 本体表面处理 | Nickel | 电缆组 | RG-58C, 141A, Belden 9907 |
| 方向 | Straight | 端接方式 | Crimp |
| 基体材料 | Zinc Alloy | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Plug, Male Pin |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Bayonet Lock |
| 外壳涂层 | Nickel | 安装样式 | Cable |
| 壳体镀层 | Nickel | 连接器样式 | BNC |
| 触头材料 | Brass | 总长度 | 24.7 mm |
| 主要材料 | BNC | 端接样式 | Crimp |
| 屏蔽层端接方式 | Crimp | 接触件端接 | Crimp |
| 介电材料 | Polymethylpentene (PMP) | 绝缘材料 - 类型 | Polymethylpentene |
| 绝缘材料 - 材质 | :Zinc | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Brass | 供应商器件封装 | Straight |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | ZDC/BNC | 连接器性别 | PL |
| 系列 | :- | 极性 | Standard |
| 连接类型 | Coaxial Cable | 射频系列/标准 | 1634500 |
环境参数
| 插拔次数 | :50 | 工作温度 | - 55 C to + 85 C |
文档与媒体
相关型号
5-1634500-1
te connectivity / amp
Conn ZDC/BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold Over Nickel Individual RF Connectors Str Plg Hex Nickel 50Ohm BNC RF Connectors BNC Ni-pl straight plug, 50 ohm, RG174 RF Connectors / Coaxial Connectors Str Plg Hex Nickel 50Ohm Conn ZDC/BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold Over Nickel Individual Product Highlights:ConnectorConnector Type = ZDC/BNCPlugTerminate To Coaxial CableCoaxial Cable Termination Type = CrimpSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 PLUG, BNC, CRIMP, 50R, RG174A/U CONN BNC PLUG STR 50OHM CRIMP BNCSTRPLGHEX50OHMNICKELPLATEDRG174A/U,188A/U,316/U,URM95,KX3B,KX22 Plug; BNC; male; straight; 50Ω; KX22,KX3,RG174,RG188,RG316,URM95 BNC cable connector, straight 50 Ohm, 5-1634500-1, TE Connectivity TE Connectivity 直 50Ω 电缆安装 BNC 连接器 插头, 压接 端接, RG174 A/U, RG188 A/U, RG316/U电缆, 镀镍本体 BNC Str Plg Hex 50Ohm Nickel Plated RG17
5-1634511-2
te connectivity / amp
Conn ZDC/BNC RCP 0Hz to 4GHz 75Ohm Crimp ST Cable Mount Gold Tray BNC RF Connectors CONN BNC JACK STR 50 OHM CRIMP BNC Ni-pl straight jack, 50 ohm, RG58 RF Connectors / Coaxial Connectors Str Jk Hex 50 Ohm Nickel Conn ZDC/BNC RCP 0Hz to 4GHz 75Ohm Crimp ST Cable Mount Gold Tray Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 JACK, 50R, RG58C/U, STRAIGHT BNCSTRJKHEX50OHMNICKELPLTDRG58C/U,141A/U,URM43,76,KX15BULK Plug; BNC; female; straight; 50Ω; KX15,RG141,RG58C/U, RG76; crimped Cable socket BNC straight 50 Ohm, 5-1634511-2, TE Connectivity TE Connectivity 直 50Ω 电缆安装 BNC 连接器, 插口, 压接 端接, RG141 A/U, RG58 C/U电缆, 镀镍本体 BNC Str Jk Hex 50Ohm Nickel Pltd RG58C/U
5-1634511-3
te connectivity / amp
Conn ZDC/BNC F 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold Over Nickel Over Copper Individual BNC RF Connectors BNCSTRJKHEX50OHMNCKPLTDRG58C/U RF Connectors / Coaxial Connectors Str Jk Hex 50 Ohm Nickel Conn ZDC/BNC F 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold Over Nickel Over Copper Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 CONN BNC JACK STR 50 OHM CRIMP BNCSTRJKHEX50OHMNICKELPLTDRG58C/U,141A/U,URM43,76,KX15 BNC Str Jk Hex 50Ohm Nickel Pltd RG58C/U
5-1634500-0
te connectivity / amp
Conn ZDC/BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold Over Nickel Tray BNC RF Connectors CONN BNC PLUG STR 50 OHM CRIMP BNC,strt,plug,hex,50ohm,nickel,RG17 RF Connectors / Coaxial Connectors Str Plg Hex Nickel 50Ohm Conn ZDC/BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold Over Nickel Tray Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 PLUG, BNC, CRIMP, 50R, RG174A/U TRY BNCSTRPLGHEX50OHMNICKELPLATEDRG174A/U,188A/U,316/U,URM95,KX3B,KX22 TE Connectivity 直 50Ω 电缆安装 BNC 连接器 插头, 压接 端接, RG174 A/U, RG188 A/U, RG316/U电缆, 镀镍本体 BNC Str Plg Hex 50Ohm Nickel Plated RG17
5-1634500-2
te connectivity / amp
Conn ZDC/BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold Over Nickel Individual BNC RF Connectors BNCSTRPLGHEX50OHMNCKPLTDRG58C/ BNC Ni-pl straight plug, 50 ohm, RG58 RF Connectors / Coaxial Connectors Str Plg Hex Nickel 50Ohm Conn ZDC/BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold Over Nickel Individual Product Highlights:ConnectorConnector Type = ZDC/BNCPlugTerminate To Coaxial CableNot StackedSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 RF COAXIAL, BNC, PLUG, CRIMP, 50OHM CONN BNC PLUG STR 50 OHM CRIMP BNCSTRPLGHEX50OHMNICKELPLTDRG58C/U,141A/U,URM43,76,BELDEN9907,KX15 Plug; BNC; male; straight; 50Ω; KX15,RG141,RG58C/U, URM43,URM76 Cable plug BNC straight 50 Ohm, 5-1634500-2, TE Connectivity TE Connectivity 直 50Ω 电缆安装 BNC 连接器 插头, 压接 端接, RG141 A/U, RG303/U, RG58 C/U电缆, 镀镍本体 BNC Str Plg Hex 50Ohm Nickel Pltd RG58C/
