点击放大查看

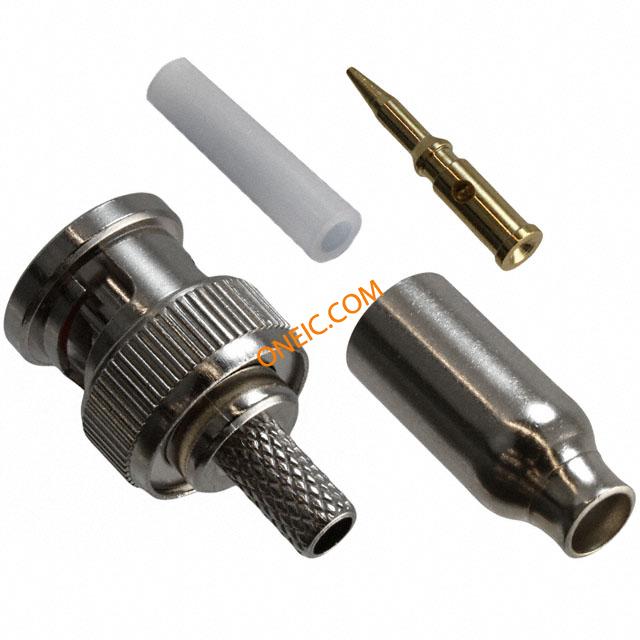

5-1634500-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn ZDC/BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold Over Nickel Tray BNC RF Connectors CONN BNC PLUG STR 50 OHM CRIMP BNC,strt,plug,hex,50ohm,nickel,RG17 RF Connectors / Coaxial Connectors Str Plg Hex Nickel 50Ohm Conn ZDC/BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold Over Nickel Tray Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 PLUG, BNC, CRIMP, 50R, RG174A/U TRY BNCSTRPLGHEX50OHMNICKELPLATEDRG174A/U,188A/U,316/U,URM95,KX3B,KX22 TE Connectivity 直 50Ω 电缆安装 BNC 连接器 插头, 压接 端接, RG174 A/U, RG188 A/U, RG316/U电缆, 镀镍本体 BNC Str Plg Hex 50Ohm Nickel Plated RG17 |
| 分类 |
商业参数
| 产品 | Connectors | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | ||
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 最大频率 | 4GHz | 工作电压 | :500V |
| 接触电阻 | :1.5mohm | 击穿电压 | :1500V |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 尺寸 | Standard | 重量 | 0.01 |
| 包装方式 | Tray | 电缆类型 | RG-174A, RG-188, RG-316, KX3B, KX22A, URM95 |
| 本体表面处理 | Nickel | 电缆组 | RG-174A, 188A, 316 |
| 方向 | Straight | 端接方式 | Crimp |
| 基体材料 | Zinc Alloy | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Plug, Male Pin |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Bayonet Lock |
| 外壳涂层 | Nickel | 安装样式 | Cable |
| 壳体镀层 | Nickel | 连接器样式 | BNC |
| 触头材料 | Brass | 总长度 | 24.7 mm |
| 主要材料 | BNC | 端接样式 | Crimp |
| 屏蔽层端接方式 | Crimp | 接触件端接 | Crimp |
| 介电材料 | Polymethylpentene (PMP) | 绝缘材料 - 类型 | Polymethylpentene |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Brass |
| 供应商器件封装 | Straight | 第一连接器安装类型 | :Cable |
产品信息
| 类型 | ZDC/BNC | 连接器性别 | PL |
| 系列 | :- | 极性 | Standard |
| 连接类型 | Coaxial Cable | 射频系列/标准 | 1634500 |
环境参数
| 插拔次数 | :50 | 工作温度 | 0C to 85C |
文档与媒体
相关型号

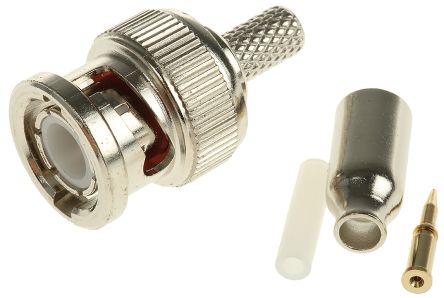

5-1634500-1
