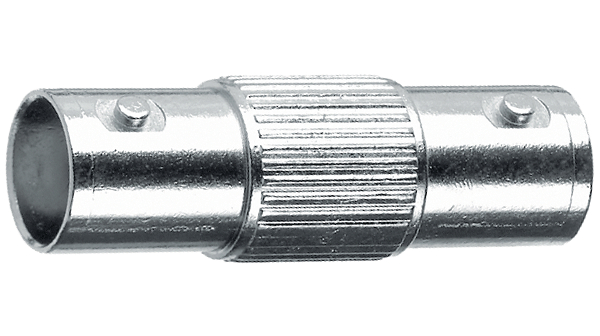

5-1634534-1
| 制造商 | TE Connectivity Ltd. |

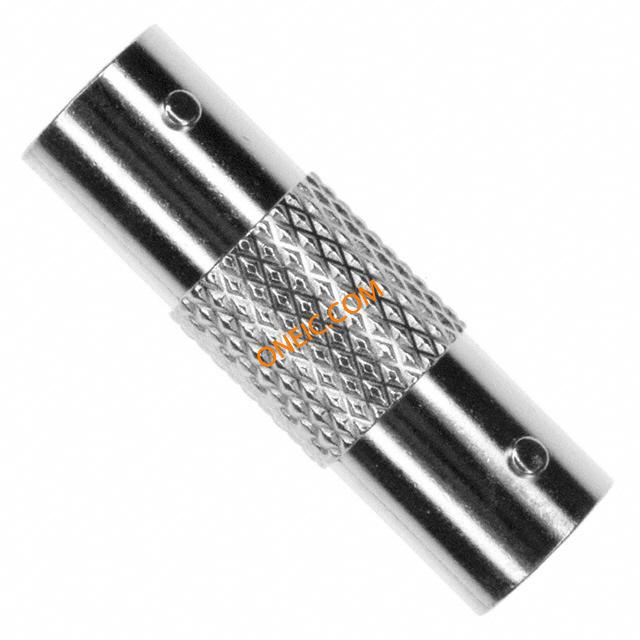

| 描述 | Conn ZDC/BNC Adapter RCP/RCP 0Hz to 4GHz 50Ohm ST Gold Over Nickel Over Copper Individual BNC RF Connectors CONN ADPT JACK-JACK BNC 50 OHM BNC Ni-pl jack to jack adaptor, 50 ohm RF Adapters - In Series Str Adp JK-JK Nickel 50Ohm Conn ZDC/BNC Adapter RCP/RCP 0Hz to 4GHz 50Ohm ST Gold Over Nickel Over Copper Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 ADAPTER, BNC JACK, BNC JACK, 50OHM BNCSTRADPJJ50OHMNICKELPLTD Coupler; BNC socket x2; straight; 50Ω; polymethylpentene (PMP) CONN ADAPT JACK-JACK BNC 50 OHM BNC adapter, female/female 50 Ohm, 5-1634534-1, TE Connectivity TE Connectivity 直 50Ω 射频适配器 , 0 → 4GHz, BNC 插座 到 BNC 插座 BNC Str Adp JJ 50Ohm Nickel Pltd |
| 分类 |
商业参数
| 产品类别 | RF Adapters - In Series | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | ||
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 转换速率 | Same Series | 最大频率 | :2GHz |
| 频率范围 | DC to 4 GHz | 工作电压 | :500V |
| 接触电阻 | :1.5mohm | 击穿电压 | :1500V |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 深度 | 11.04 mm | 高度 | Not Required mm |
| 长度 | 32.5mm | 重量 | 0.01 |
| 直径 | 10.3 mm | 包装方式 | Bulk |
| 本体表面处理 | Nickel | 方向 | Straight |
| 基体材料 | Zinc Alloy | 安装类型 | Straight |
| 外壳镀层 | Nickel | 行程角度 | Straight |
| 连接器类型 | :BNC Coaxial | 接触镀层 | Gold Over Nickel Over Copper |
| 外壳涂层 | Nickel | 壳体镀层 | Nickel Over Copper |
| 触头材料 | Phosphor Bronze | 壳体材料 | Zinc |
| 总长度 | 32.5 mm | 包装数量 | 1 |
| 主要材料 | Adapter | 介电材料 | Polymethylpentene (PMP) |
| 绝缘材料 - 类型 | Polymethylpentene | 第一连接器极性 | Jack (Female) |
| 第二连接器性别 | Jack (Female) | 绝缘材料 - 材质 | polymethylpentene (PMP) |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Phosphor Bronze |
| 供应商器件封装 | Straight | 触点材料 - 镀层 | gold plated |
| 第一连接器安装特征 | :Jack | ||
产品信息
| SPG | 1 | 类型 | ZDC/BNC Adapter |
| 样式 | Straight | 连接器性别 | RCP/RCP |
| 结构（如双向、串接等） | BNC socket x2 | 适配器类型 | Jack to Jack |
| 中心极性 | Female to Female | 适配器系列 | BNC to BNC |
| 单元数量 | 1 | 射频系列/标准 | 1634534 |
| 其他规格 | coupler | 转换端（适配器端） | BNC Jack, Female Socket |
| 转换自（适配器端） | BNC Jack, Female Socket | ||
环境参数
| 插拔次数 | :50 | 工作温度 | :+85°C |
文档与媒体
相关型号
1-1337494-0
te connectivity / amp

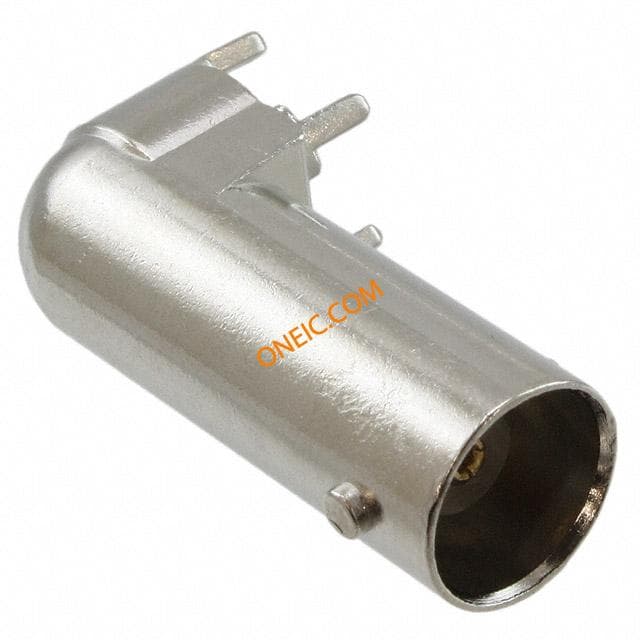

Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK R/A 50 OHM PCB ZDC/BNC R/A shielded PCB socket, 50 ohm RF Connectors / Coaxial Connectors R/A Shld PCB Skt Nickel 50Ohm Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJackTerminate To Printed Circuit BoardBody Style = ElbowSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, PCB, R/A, 50R, SHIELD BNCR/ASHLDPCBSKT50OHMNICKELPLTD Socket; BNC; female; angled 90°; 50Ω; THT; polyetylene; gold plated BNC appliance socket, right angle 50 Ohm, 1-1337494-0, TE Connectivity TE Connectivity Greenpar 直角 50Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC R/A Shld PCB Skt 50Ohm Nickel Pltd
5-1634530-1
te connectivity / amp
Conn BNC Adapter RCP/RCP 0Hz to 4GHz 50Ohm ST Panel Mount Gold Individual RF Adapters - In Series BH JACK-JACK Nickel 50Ohm CONN ADAPT JACK-JACK BNC 50 OHM BNC adapter 50ohm Ni plated Conn BNC Adapter RCP/RCP 0Hz to 4GHz 50Ohm ST Panel Mount Gold Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 ADAPTOR, BNC JACK-JACK, 50R BNCBHADPJJ50OHMNICKELPLTD TE Connectivity 直 50Ω 射频适配器 , 0 → 4GHz, BNC 插座 到 BNC 插座 BNC BH Adp JJ 50Ohm Nickel Pltd
5-1634532-1
te connectivity / amp
Conn ZDC/BNC Adapter RCP/PL/RCP 0Hz to 4GHz 50Ohm T Style Gold Over Nickel Over Copper Individual BNC RF Connectors CONN T-ADAPTOR BNC J-P-J 50 OHM BNC Ni-pl T adaptor RF Adapters - Tee T Adpt JK-PL-JK NKL GLD 50Ohm Conn ZDC/BNC Adapter RCP/PL/RCP 0Hz to 4GHz 50Ohm T Style Gold Over Nickel Over Copper Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 ADAPTER, BNC, T, JACK-PLUG-JACK, 50OHM BNCTADPTJPJ50OHMNICKELGOLDPLTD BNC T-adapter, female/male/female 50 Ohm, 5-1634532-1, TE Connectivity TE Connectivity T 形 50Ω 射频适配器 , 0 → 4GHz, BNC 插头 到 BNC 2 x 插座 BNC T Adpt JPJ 50Ohm Nickel Gold Pltd
5-1634513-1
te connectivity / amp
Conn ZDC/BNC RCP 0Hz to 2GHz 75Ohm Solder RA Thru-Hole Gold Individual BNC RF Connectors CONN BNC JACK R/A 50 OHM PCB BNC PCB socket 50ohm 28.0 RF Connectors / Coaxial Connectors SOCKET ELBOW 50 OHM Conn ZDC/BNC RCP 0Hz to 2GHz 75Ohm Solder RA Thru-Hole Gold Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJackTerminate To Printed Circuit BoardPCB Mount Angle = Right AngleSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 BNCLPPCBSKT50OHM28.0 TE Connectivity 直角 50Ω 通孔 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC LOW PROFILE ELBOW SOCKET 50 OHMS
5-1634511-2
te connectivity / amp

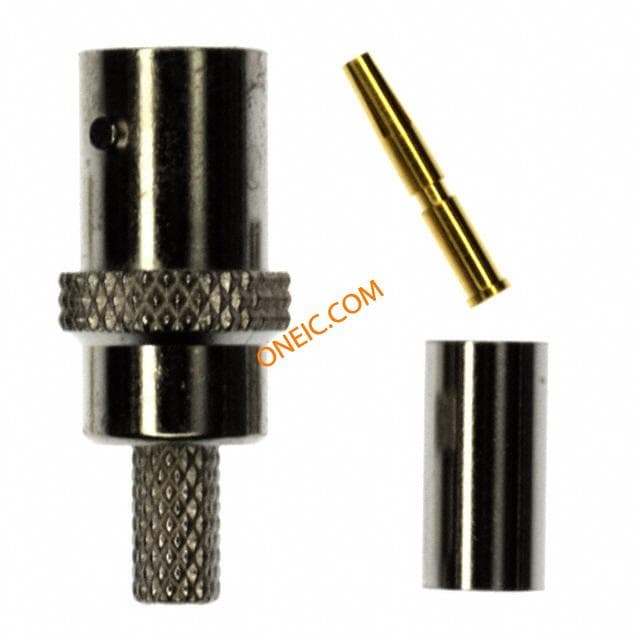

Conn ZDC/BNC RCP 0Hz to 4GHz 75Ohm Crimp ST Cable Mount Gold Tray BNC RF Connectors CONN BNC JACK STR 50 OHM CRIMP BNC Ni-pl straight jack, 50 ohm, RG58 RF Connectors / Coaxial Connectors Str Jk Hex 50 Ohm Nickel Conn ZDC/BNC RCP 0Hz to 4GHz 75Ohm Crimp ST Cable Mount Gold Tray Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 JACK, 50R, RG58C/U, STRAIGHT BNCSTRJKHEX50OHMNICKELPLTDRG58C/U,141A/U,URM43,76,KX15BULK Plug; BNC; female; straight; 50Ω; KX15,RG141,RG58C/U, RG76; crimped Cable socket BNC straight 50 Ohm, 5-1634511-2, TE Connectivity TE Connectivity 直 50Ω 电缆安装 BNC 连接器, 插口, 压接 端接, RG141 A/U, RG58 C/U电缆, 镀镍本体 BNC Str Jk Hex 50Ohm Nickel Pltd RG58C/U
5-1634516-1
te connectivity / amp
Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Crimp ST Panel Mount Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK STR 50 OHM CRIMP BNC Ni-pl bulkhead jack, 50 ohm, RG58 RF Connectors / Coaxial Connectors RG58 BH J Hex Nickel 50Ohm Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Crimp ST Panel Mount Gold Over Nickel Over Copper Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJackTerminate To Coaxial CableCoaxial Cable Termination Type = CrimpSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 JACK, BULKHEAD, 50R, RG58C/U BNCRMBHJHEX50OHMNICKELPLTDRG58C/U,141A/U,URM43,76,KX15 BNC appliance socket, straight 50 Ohm, 5-1634516-1, TE Connectivity TE Connectivity 直 50Ω 面板安装 BNC 连接器, 插口, 压接 端接, RG141 A/U, RG58 C/U电缆, 镀镍本体 BNC RM BHJ Hex 50Ohm Nickel Pltd RG58C/U
5-1634504-1
te connectivity / amp
Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder ST Panel Mount Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK STR 50 OHM SOLDER BNC Ni-pl insul bulkhead socket, 50 ohm RF Connectors / Coaxial Connectors BH Skt 50Ohm Nickel Gold Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder ST Panel Mount Gold Over Nickel Over Copper Individual Product Highlights:Connector - RFJackHousing Gender = JackTerminate To WireBody Style = StraightSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 RF COAXIAL, BNC, JACK, BULKHEADER, 50OHM BNCINSBHSKT50OHMNICKELGOLDPLTD Socket; BNC; female; insulated; straight; 50Ω; soldering; polyester BNC appliance socket, straight 50 Ohm, 5-1634504-1, TE Connectivity TE Connectivity Greenpar 直 50Ω 面板安装 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins BHSkt 50Ohm Nickel Gold Pltd
5-1634535-1
te connectivity / amp

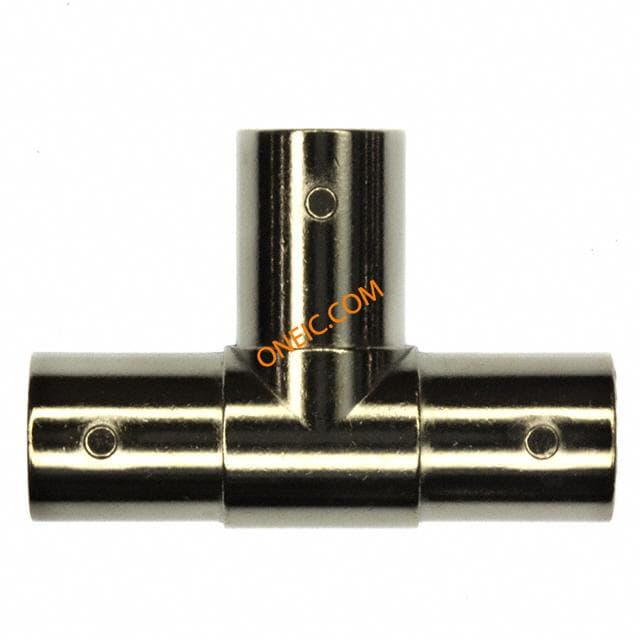

Conn BNC RCP/RCP/RCP 0Hz to 4GHz 50Ohm T Style Gold Individual CONN T-ADAPTOR BNC J-J-J 50 OHM BNC T adapter 50ohm Ni plated RF Adapters - Tee T Adp JK-JK-JK Nickel 50Ohm Conn BNC RCP/RCP/RCP 0Hz to 4GHz 50Ohm T Style Gold Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 ADAPTOR, BNC, T, 50R BNCTADPJJJ50OHMNICKELPLTD T adapter; BNC socket x3; 50Ω; polymethylpentene (PMP) CONN ADAPT JACK-JACK BNC 50 OHM BNC T-adapter, female/female/female 50 Ohm, 5-1634535-1, TE Connectivity TE Connectivity T 形 50Ω 射频适配器 , 0 → 4GHz, BNC 插座 到 BNC 2 x 插座 BNC TAdp JJJ 50Ohm Nickel Pltd
