点击放大查看

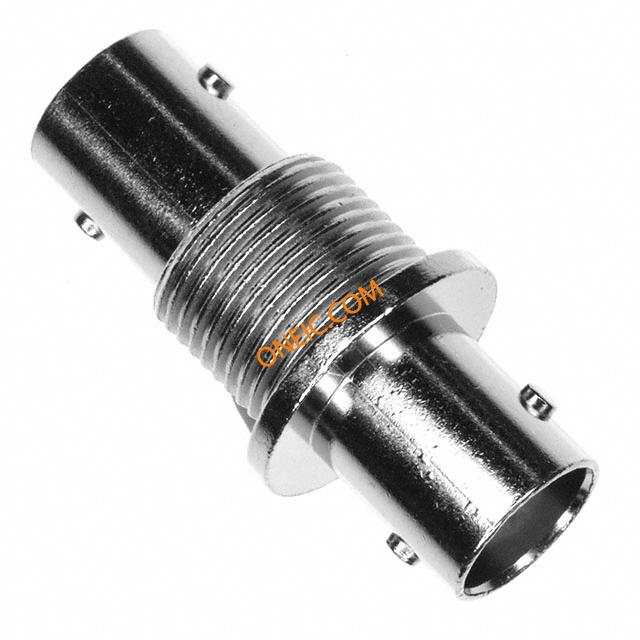

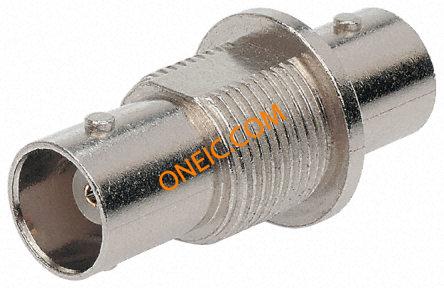

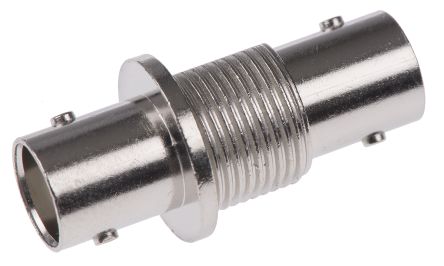

5-1634530-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn BNC Adapter RCP/RCP 0Hz to 4GHz 50Ohm ST Panel Mount Gold Individual RF Adapters - In Series BH JACK-JACK Nickel 50Ohm CONN ADAPT JACK-JACK BNC 50 OHM BNC adapter 50ohm Ni plated Conn BNC Adapter RCP/RCP 0Hz to 4GHz 50Ohm ST Panel Mount Gold Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 ADAPTOR, BNC JACK-JACK, 50R BNCBHADPJJ50OHMNICKELPLTD TE Connectivity 直 50Ω 射频适配器 , 0 → 4GHz, BNC 插座 到 BNC 插座 BNC BH Adp JJ 50Ohm Nickel Pltd |
| 分类 |
商业参数
| 产品类别 | RF Adapters - In Series | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | 海关税号 | 85369010 |
| 抗辐射加固 | No | ||
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 转换速率 | Same Series | 频率范围 | DC to 4 GHz |
机械参数
| 深度 | 15.62 mm | 高度 | Not Required mm |
| 长度 | 32.6mm | 重量 | 0.0018 |
| 包装方式 | Bulk | 本体表面处理 | Nickel |
| 方向 | Straight | 基体材料 | Zinc |
| 安装类型 | Panel Mount | 外壳镀层 | Nickel |
| 行程角度 | Straight | 连接器类型 | :Inter Series Coaxial |
| 接触镀层 | Gold | 外壳涂层 | Silver |
| 安装样式 | Panel | 壳体镀层 | Nickel |
| 触头材料 | Phosphor Bronze | 壳体材料 | Zinc |
| 总长度 | 32.6 mm | 主要材料 | Adapter |
| 介电材料 | Polymethylpentene (PMP) | 绝缘材料 - 类型 | Polymethylpentene |
| 第一连接器极性 | Jack (Female) | 第二连接器性别 | Jack (Female) |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Phosphor Bronze |
| 供应商器件封装 | Bulkhead | 第一连接器安装特征 | :Socket |
产品信息
| 类型 | BNC Adapter | 样式 | Straight |
| 连接器性别 | RCP/RCP | 适配器类型 | Straight |
| 中心极性 | Female to Female | 适配器系列 | BNC to BNC |
| 射频系列/标准 | 1634530 | 转换端（适配器端） | BNC Jack, Female Socket |
| 转换自（适配器端） | BNC Jack, Female Socket | ||
环境参数
| 工作温度 | -55C to 85C | ||
