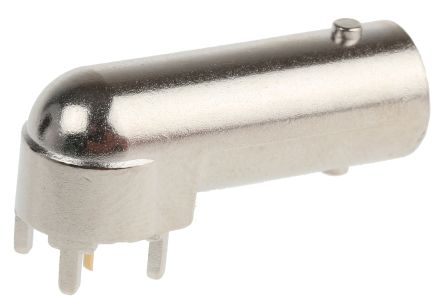

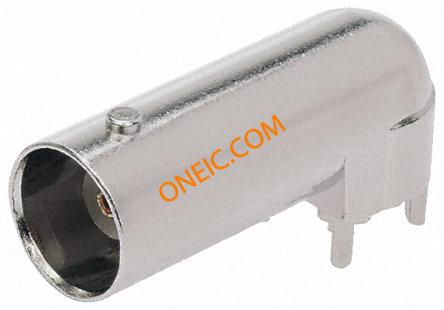

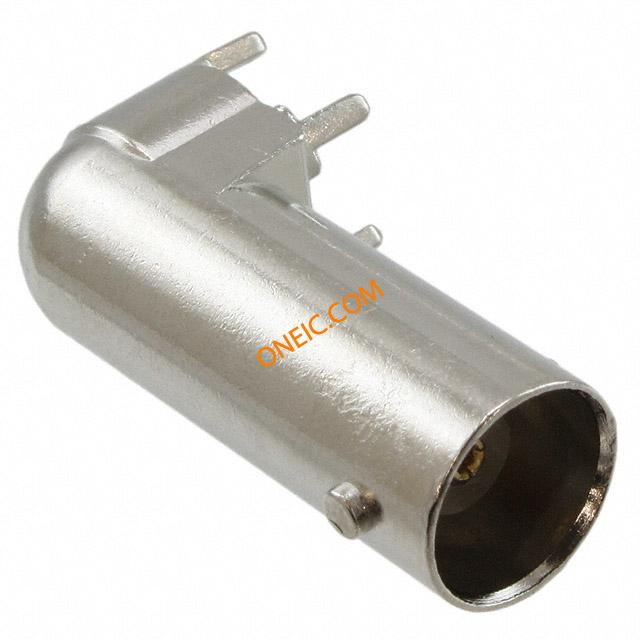

5-1634513-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn ZDC/BNC RCP 0Hz to 2GHz 75Ohm Solder RA Thru-Hole Gold Individual BNC RF Connectors CONN BNC JACK R/A 50 OHM PCB BNC PCB socket 50ohm 28.0 RF Connectors / Coaxial Connectors SOCKET ELBOW 50 OHM Conn ZDC/BNC RCP 0Hz to 2GHz 75Ohm Solder RA Thru-Hole Gold Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJackTerminate To Printed Circuit BoardPCB Mount Angle = Right AngleSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 BNCLPPCBSKT50OHM28.0 TE Connectivity 直角 50Ω 通孔 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC LOW PROFILE ELBOW SOCKET 50 OHMS |
| 分类 |
商业参数
| 产品 | Connectors | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 频率 | 0 to 2 GHz | 阻抗 | 75 Ohm |
| 最大频率 | 2GHz | 阻抗（最大）（Zzt） | 50Ω |
机械参数
| 尺寸 | Standard | 形状 | 圆形 |
| 包装方式 | Bulk | 本体表面处理 | Nickel |
| 方向 | Right Angle | 端接方式 | Solder |
| 基体材料 | Zinc Alloy | 安装类型 | Through Hole |
| 行程角度 | RightAngle | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 外壳涂层 | Nickel | 安装样式 | PCBMount |
| 壳体镀层 | 镍 | 连接器样式 | BNC |
| 触头材料 | Phosphor Bronze | 安装特性 | 压紧柱体 |
| 包装数量 | 100 | 主要材料 | BNC |
| 端接排数 | 焊接 | 端接样式 | Solder |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder |
| 介电材料 | Polymethylpentene (PMP) | 绝缘材料 - 类型 | 不带 |
| 位数 | 1 | 中心触点表面处理 | 金 |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Phosphor Bronze |
| 供应商器件封装 | Right Angle | 外管直径（最大） | 14.529 mm [ .572 in ] |
| 执行器距PCB垂直高度 | 11 mm [ .433 in ] | ||
产品信息
| 备注 | 小尺寸。 | 类型 | ZDC/BNC |
| 等级 | 商业 | 连接器性别 | RCP |
| 产品特性 | Board Guide | 极性 | Normal |
| 可密封 | 否 | 连接类型 | PCB |
| 射频系列/标准 | 1634513 | ||
环境参数
| 工作温度 | - 55 C to + 85 C | 封装热阻 | 3.2 mm [ .126 in ] |
