点击放大查看

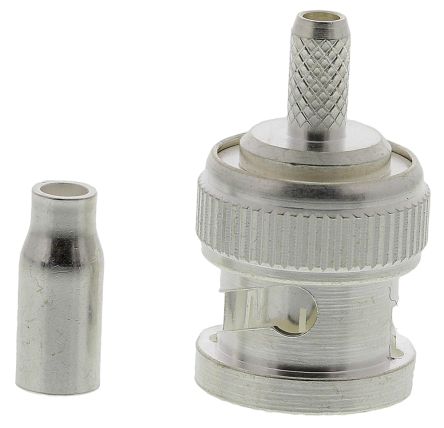

1-1337430-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Silver Individual BNC RF Connectors CONN BNC PLUG STR 50 OHM SOLDER BNC straight plug,crimp, Ag, RG174,RG188 Conn BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Silver Individual Product Highlights:ConnectorConnector Type = BNCPlugTerminate To Coaxial CableNot StackedSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 PLUG, BNC, STRAIGHT, RG174 Greenparcrimpstraight,Ag,plug-RG174 TE Connectivity 直 50Ω 电缆安装 BNC 连接器 插头, 压接 端接, RG174 A/U, RG188 A/U, RG316/U电缆, 镀银本体 BNC Str Plg Hex 50Ohm Silver Pltd RG174A |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 最大频率 | 4GHz |
| 工作电压 | :500V | 击穿电压 | :1500V |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 重量 | 0.01038 | 包装方式 | Bulk |
| 电缆类型 | :RG174 | 本体表面处理 | Silver |
| 电缆组 | RG-174A, 188A, 316 | 端接方式 | Crimp |
| 基体材料 | Brass | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Plug, Male Pin |
| 接触镀层 | Silver | 紧固类型 | Bayonet Lock |
| 安装样式 | CableMount | 壳体镀层 | :Silver |
| 连接器样式 | BNC | 触头材料 | Brass |
| 主要材料 | BNC | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 中心触点镀层工艺 | Silver | 中心触点材料 | Brass |
| 供应商器件封装 | :Straight Plug | 第一连接器安装类型 | :Cable |
产品信息
| 类型 | BNC | 连接器性别 | PL |
| 系列 | :- | 连接类型 | RG/U Cable |
| 射频系列/标准 | 1337430 | ||
环境参数
| 插拔次数 | :500 | 工作温度 | -65°C ~ 165°C |
文档与媒体
相关型号

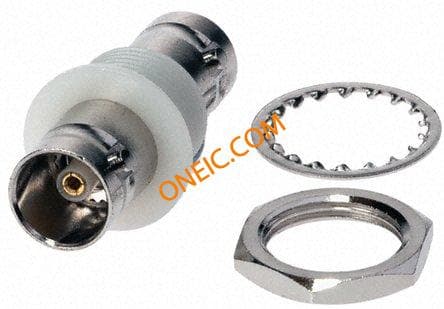

1-1337454-0
te connectivity / amp
Conn BNC Adapter RCP/RCP 0Hz to 4GHz 50Ohm ST Panel Mount Gold BNC RF Connectors CONN BNC INS BH ADP JACK-JACK BNC,insulated,adaptor,jack-jack,50ohm RF Connectors / Coaxial Connectors BH ADP JACK-JACK Conn BNC Adapter RCP/RCP 0Hz to 4GHz 50Ohm ST Panel Mount Gold Product Highlights:AdapterConnector Type = BNCBody Style = StraightCommercial GradeConnector Impedance = 50 ?Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 ADAPTOR, BNC JACK-JACK, BULKHEAD BNC,strt,T-adaptor,plug-jack-jack,50ohm CONN ADAPT JACK-JACK BNC 50 OHM BNC adapter, female/female 50 Ohm, 1-1337454-0, TE Connectivity TE Connectivity 直 50Ω 射频适配器 , 0 → 4GHz, BNC 插座 到 BNC 插座 BNC Ins BH Adp JJ 50Ohm Nickel Pltd
1-1478148-0
te connectivity / amp
Conn BNC RCP 0Hz to 4GHz 50Ohm Crimp ST Panel Mount Silver Individual BNC RF Connectors CONN BNC JACK STR 50 OHM SOLDER RF Connectors / Coaxial Connectors RM BHJ MC 50 Ohm JACK BNC, BULKHEAD, RG58 BNC RM BHJ MC 50Ohm Silver Pltd RG58C/U,
1-1478035-0
te connectivity / amp
Conn BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Silver Individual BNC RF Connectors CONN BNC JACK R/A 50 OHM PCB BNC jack,PCB,right angle, 50 Ohm,silver RF Connectors / Coaxial Connectors R/A PCB Skt 50 Ohm Conn BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Silver Individual Product Highlights:ConnectorConnector Type = BNCJackTerminate To Printed Circuit BoardBody Style = ElbowSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, PCB, ELBOW, 50R NiPtBNCrightanglePCBsocket,50ohm TE Connectivity Greenpar 直角 50Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀银本体 BNC R/A PCB Skt 50Ohm Silver P
1-1634505-0
te connectivity / amp
Conn ZDC/BNC RCP 50Ohm Solder ST Thru-Hole Gold Individual BNC RF Connectors CONN BNC JACK STR 50 OHM PCB BNC black insul straight socket, 50 ohm RF Connectors / Coaxial Connectors Str PCB Skt MP Black 50Ohm Conn ZDC/BNC RCP 50Ohm Solder ST Thru-Hole Gold Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJackTerminate To Printed Circuit BoardBody Style = StraightSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, INS, PCB, 50R, BLACK BNCINSSTRPCBSKT50OHMMPBLACK TE Connectivity Greenpar 直 50Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins Str PCB Skt 50Ohm Black

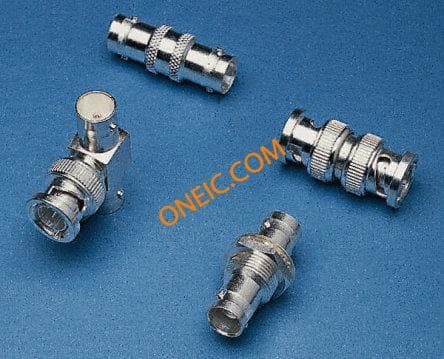

1-1337457-0
te connectivity / amp
Conn BNC Adapter RCP/RCP 0Hz to 4GHz 50Ohm ST Silver Individual BNC RF Connectors CONN BNC ADAPTER FEMALE/FEMALE Greenpar AgPt BNC skt-skt adaptor,50ohm RF Connectors / Coaxial Connectors BNC STR ADP JJ 50OHM SILVER PLTD Conn BNC Adapter RCP/RCP 0Hz to 4GHz 50Ohm ST Silver Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 ADAPTOR, BNC JACK-JACK, 50R GreenparAgPtBNCskt-sktadaptor,50ohm TE Connectivity 直 50Ω 射频适配器 , 0 → 4GHz, BNC 插座 到 BNC 插座 BNC Str Adp JJ 50Ohm Silver Pltd
1-1337446-0
te connectivity / amp
Conn BNC RCP 0Hz to 2GHz 75Ohm Solder Cup ST Panel Mount Silver Individual BNC RF Connectors CONN BNC JACK STR 75 OHM SOLDER AgPt BNC panel mount solder socket,50ohm RF Connectors / Coaxial Connectors BNC PNL SKT 50OHM SILVER PLTD Conn BNC RCP 0Hz to 2GHz 75Ohm Solder Cup ST Panel Mount Silver Individual Product Highlights:ConnectorConnector Type = BNCJackBody Style = PanelNot Surface MountableSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, PANEL, 50R AgPtBNCpanelmountsoldersocket,50ohm Socket; BNC; female; straight; 50Ω; soldering; teflon TE Connectivity Greenpar 直 50Ω 面板安装 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀银本体 BNC Pnl Skt 50Ohm Silver Pltd
1-1337463-0
te connectivity / amp
BNC PLG TERM 50OHM SILVER PLTD BNC RF Connectors CONN TERMINATOR BNC MALE 50 OHM BNC plug termination 50ohm 1GHz 0.5W RF Connectors / Coaxial Connectors BNC PLG TERM 50OHM SILVER PLTD Connector Accessories Plug BNC Terminator Individual Connector Accessories Plug BNC Terminator Individual Product Highlights:TerminatorConnector Type = BNCPlugBody Style = StraightNot Surface MountableSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 PLUG, BNC, TERM, 50R BNCplugtermination50ohm1GHz0.5W BNCTERMINATION50OHM Terminator; BNC; 50Ω; teflon; silver plated TE Connectivity 50Ω 直 BNC 射频终接器 插头, 电缆安装, 0 → 1GHz, 平均额定功率0.5W BNC Plg Term 50Ohm Silver Pltd
1-1337442-0
te connectivity / amp
Conn BNC RCP 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Silver Individual BNC RF Connectors CONN BNC JACK STR 50 OHM SOLDER Crimp BNC straight jack-RG58 cable,50ohm RF Connectors / Coaxial Connectors Str Jk Hex 50 Ohm Conn BNC RCP 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Silver Individual Product Highlights:ConnectorConnector Type = BNCJackTerminate To Coaxial CableNot StackedSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 JACK BNC, RG58, STRAIGHT CrimpBNCstraightjack-RG58cable,50ohm TE Connectivity 直 50Ω 电缆安装 BNC 连接器, 插口, 压接 端接, RG141 A/U, RG58 C/U电缆, 镀银本体 BNC Str Jk Hex 50Ohm Silver Pltd RG58C/U

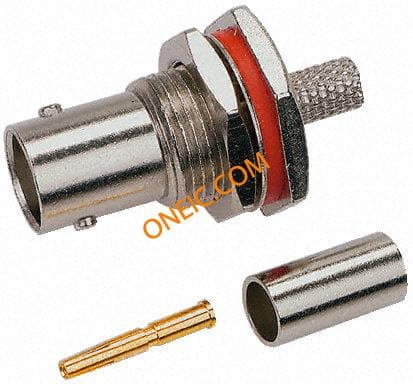

1-1337548-0
