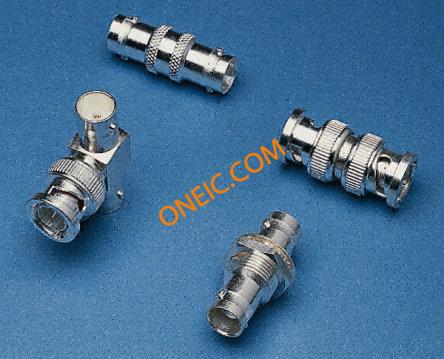

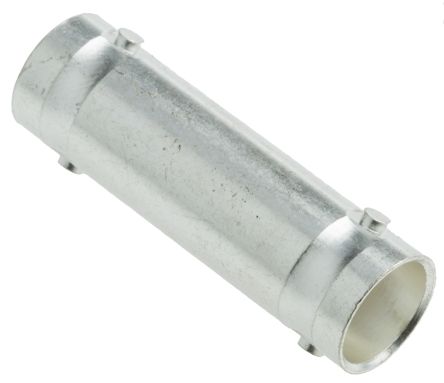

1-1337457-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn BNC Adapter RCP/RCP 0Hz to 4GHz 50Ohm ST Silver Individual BNC RF Connectors CONN BNC ADAPTER FEMALE/FEMALE Greenpar AgPt BNC skt-skt adaptor,50ohm RF Connectors / Coaxial Connectors BNC STR ADP JJ 50OHM SILVER PLTD Conn BNC Adapter RCP/RCP 0Hz to 4GHz 50Ohm ST Silver Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 ADAPTOR, BNC JACK-JACK, 50R GreenparAgPtBNCskt-sktadaptor,50ohm TE Connectivity 直 50Ω 射频适配器 , 0 → 4GHz, BNC 插座 到 BNC 插座 BNC Str Adp JJ 50Ohm Silver Pltd |
| 分类 |
商业参数
| 产品 | Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 转换速率 | Same Series | 最大频率 | 4GHz |
| 工作电压 | :500V | ||
机械参数
| 长度 | 32.5mm | 重量 | 0.01 |
| 材料（通用） | :Brass | 包装方式 | Bulk |
| 本体表面处理 | Silver | 基体材料 | Brass |
| 安装类型 | Straight | 连接器类型 | :Inter Series Coaxial |
| 接触镀层 | Silver | 壳体镀层 | :Silver |
| 触头材料 | Brass | 端接样式 | Solder |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 第二连接器性别 | :Jack |
| 中心触点镀层工艺 | Silver | 中心触点材料 | Brass |
| 供应商器件封装 | :Straight | 第一连接器安装特征 | :Jack |
产品信息
| 类型 | BNC Adapter | 样式 | Straight |
| 连接器性别 | RCP/RCP | 适配器类型 | Jack to Jack |
| 中心极性 | Female to Female | 适配器系列 | BNC to BNC |
| 射频系列/标准 | 1337457 | 转换端（适配器端） | BNC Jack, Female Socket |
| 转换自（适配器端） | BNC Jack, Female Socket | ||
环境参数
| 插拔次数 | 500 | 工作温度 | :165°C |
