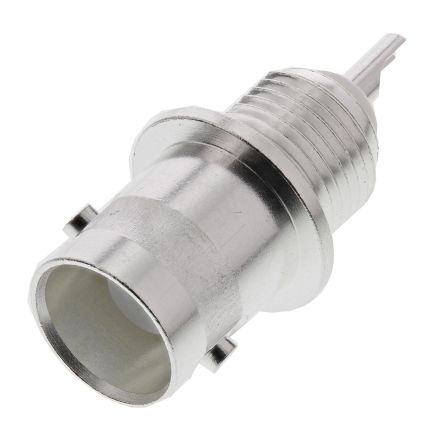

1-1337450-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn BNC RCP 0Hz to 4GHz 50Ohm Solder ST Panel Mount Silver Individual BNC RF Connectors CONN BNC JACK STR 50 OHM SOLDER BNC bulkhead tagged socket, 50 ohm RF Connectors / Coaxial Connectors BNC BHSKT+TAG 50OHM SILVER PLTD BNCbulkheadtaggedsocket,50ohm BNCBHSKT+TAG50OHM TE Connectivity 直 50Ω 面板安装 BNC 连接器, 插口, 焊接 端接, 镀银本体 BNC BHSkt + TAG 50Ohm Silver Pltd |
| 分类 |
商业参数
| 产品 | Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 安全类别 | UG-1094/U |
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 最大频率 | 4GHz |
| 连接器阻抗 | 焊接端子 | 阻抗（最大）（Zzt） | 50Ω |
机械参数
| 包装方式 | Bulk | 本体表面处理 | Nickel |
| 方向 | 直 | 端接方式 | Solder |
| 基体材料 | Brass | 外壳颜色 | White |
| 安装类型 | Panel Mount | 行程角度 | Straight |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Silver |
| 紧固类型 | Bayonet Lock | 法兰特征 | 黄铜 |
| 安装样式 | PanelMount | 壳体镀层 | 银 |
| 连接器样式 | BNC | 法兰直径 | 12.5 mm [ .492 in ] |
| 触头材料 | Brass | 包装数量 | 50 |
| 主要材料 | BNC | 端接排数 | 焊接 |
| 端接样式 | Solder | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder Cup | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 绝缘材料 - 类型 | 带有 | 位数 | 1 |
| 中心触点表面处理 | 银 | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Brass | 接触件表面处理 - 配合 | 银 |
| 面板开孔尺寸（外形） | 8.9 x 9.7 mm D 形 | 安装面板厚度 | 1.5 – 2.9 mm [ .059 – .114 in ] |
| 第一连接器安装类型 | Panel | 后壳材料及镀层 | 黄铜 |
| 外管直径（最大） | 14.529 mm [ .572 in ] | ||
产品信息
| 备注 | 带焊接凸片 | 类型 | BNC |
| 等级 | 专业 | 连接器性别 | RCP |
| 可密封 | 否 | 连接类型 | Coaxial Cable |
| 射频系列/标准 | 1337450 | ||
环境参数
| 工作温度 | -65°C ~ 165°C | ||
文档与媒体
