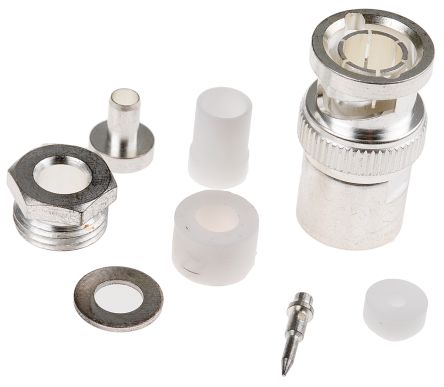

点击放大查看
1-1478401-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn BNC PL 0Hz to 4GHz 50Ohm Solder ST Cable Mount Silver Bag BNC RF Connectors CONN BNC PLUG STR 50 OHM SOLDER BNC Straight Plug clamp 50Ohm 58C/U,141A RF Connectors / Coaxial Connectors BNC STR PLG PS 50OHM SLVR RG58C/U, 141 Conn BNC PL 0Hz to 4GHz 50Ohm Solder ST Cable Mount Silver Bag Product Highlights:ConnectorConnector Type = BNCPlugTerminate To Coaxial CableCoaxial Cable Termination Type = Solder/ClampSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 PLUG, BNC, 50R, RG58 BNCStraightPlugclamp50Ohm58C/U,141A BNCSTRTCLAMPPLGRG58 Plug; BNC; male; straight; 50Ω; RG141,RG58C/U, URM43,URM76; teflon TE Connectivity 直 50Ω 电缆安装 BNC 连接器 插头, 焊接 端接, RG141 A/U, RG58 C/U电缆, 镀银本体 BNC Str Plg PS 50Ohm Silver RG58C/U, 141 |
| 分类 |
商业参数
| 产品 | Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 电压 | :500V | 频率 | 0 to 4 GHz |
| 阻抗 | 50 Ohm | 最大频率 | :4GHz |
| 工作电压 | :500V | 接触电阻 | :1.5mohm |
| 击穿电压 | :1500V | 绝缘电阻 | :5000Mohm |
| 阻抗 - 不平衡/平衡 | :RG58 | ||
机械参数
| 重量 | 0.01681 | 材料（通用） | :Brass |
| 包装方式 | Bulk | 电缆类型 | :Belden 9907, RG58C, RG141A, URM43, URM76 |
| 本体表面处理 | Silver | 电缆组 | RG-58C, 141A, Belden 9907 |
| 方向 | straight | 端接方式 | Solder |
| 基体材料 | Brass | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Plug, Male Pin |
| 接触镀层 | Silver | 紧固类型 | Bayonet Lock |
| 安装样式 | CableMount | 壳体镀层 | :Silver |
| 连接器样式 | BNC | 触头材料 | Brass |
| 包装数量 | 1 | 主要材料 | BNC |
| 连接器 - 电缆 | plug | 屏蔽层端接方式 | Clamp |
| 接触件端接 | Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 绝缘材料 - 材质 | teflon | 中心触点镀层工艺 | Silver |
| 中心触点材料 | Brass | 供应商器件封装 | :Straight Plug |
| 触点材料 - 镀层 | silver plated | 第一连接器安装类型 | :Cable |
产品信息
| SPG | 1 | 类型 | BNC |
| 连接器性别 | PL | 连接类型 | Coaxial Cable |
| 单元数量 | 1 | 射频系列/标准 | 1478401 |
环境参数
| 插拔次数 | :500 | 工作温度 | :165°C |
