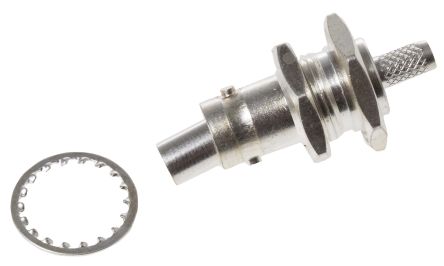

1-1337434-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn BNC RCP 0Hz to 4GHz 50Ohm Crimp ST Panel Mount Silver Individual BNC RF Connectors CONN BNC JACK STR 50 OHM SOLDER BNC straight jack,crimp, Ag, RG58, RG141 RF Connectors / Coaxial Connectors BNC RM BHJ HEX 50OHM SLVR PLTD RG58C/U JACK BNC, BULKHEAD, RG58 GreenparcrimpBNCbulkheadjack-RG58 TE Connectivity 直 50Ω 面板安装 BNC 连接器, 插口, 压接 端接, RG141 A/U, RG58 C/U电缆, 镀银本体 BNC RM BHJ Hex 50Ohm Silver Pltd RG58C/U |
| 分类 |
商业参数
| 产品 | Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 电压 | :500V | 频率 | 0 to 4 GHz |
| 阻抗 | 50 Ohm | 额定电压 | 500V |
| 最大频率 | 4GHz | 工作电压 | :500V |
| 接触电阻 | :1.5mohm | 击穿电压 | :1500V |
| 绝缘电阻 | :5000Mohm | 阻抗 - 不平衡/平衡 | :RG58 |
机械参数
| 重量 | 0.02001 | 材料（通用） | :Brass |
| 包装方式 | Bulk | 电缆类型 | :Belden 9907, RG58C, RG141A, URM43, URM76 |
| 本体表面处理 | Silver | 电缆组 | RG-58C, 141A, Belden 9907 |
| 端接方式 | Crimp | 基体材料 | Brass |
| 安装类型 | Panel Mount | 行程角度 | Straight |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Silver |
| 紧固类型 | Bayonet Lock | 安装样式 | PanelMount |
| 壳体镀层 | :Silver | 连接器样式 | BNC |
| 触头材料 | Brass | 主要材料 | BNC |
| 端接样式 | Solder | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Brass |
| 供应商器件封装 | :Straight Bulkhead Jack | 第一连接器安装类型 | :Panel |
产品信息
| 类型 | BNC | 连接器性别 | RCP |
| 系列 | :- | 连接类型 | Coaxial Cable |
| 射频系列/标准 | 1337434 | ||
环境参数
| 插拔次数 | :500 | 工作温度 | -65°C ~ 165°C |
文档与媒体
