点击放大查看

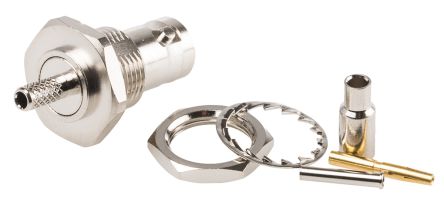

1-1337548-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn BNC RCP 0Hz to 4GHz 50Ohm Crimp ST Panel Mount Gold Individual BNC RF Connectors CONN BNC JACK STR 50 OHM SOLDER BNC bulkhead jack crimp RG174A/U 50Ohm RF Connectors / Coaxial Connectors 50 Ohms Female Conn BNC RCP 0Hz to 4GHz 50Ohm Crimp ST Panel Mount Gold Individual Product Highlights:Connector - RFJackHousing Gender = JackTerminate To Coaxial CableCoaxial Cable Termination Type = CrimpSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 JACK BNC, BULKHEAD, RG174 BNCbulkheadjackcrimpRG174A/U50Ohm TE Connectivity 直 50Ω 面板安装 BNC 连接器, 插口, 压接 端接, RG174 A/U, RG188 A/U, RG316/U电缆, 镀镍本体 BNC RM BHJ Hex 50Ohm Nickel Pltd RG174A/ |
| 分类 |
商业参数
| 产品 | Connectors | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 电压 | :500V | 频率 | 0 to 4 GHz |
| 阻抗 | 50 Ohm | 额定电压 | 500V |
| 最大频率 | 4GHz | 工作电压 | :500V |
| 接触电阻 | :1.5mohm | 击穿电压 | :1500V |
| 绝缘电阻 | 5000 MOhms | 阻抗 - 不平衡/平衡 | :RG174 |
机械参数
| 重量 | 0.01789 | 材料（通用） | :Brass |
| 包装方式 | Bulk | 电缆类型 | KX22A, KX3B, RG-174A/U, RG-188A/U, RG-316/U |
| 本体表面处理 | Nickel | 电缆组 | RG-174A, 188A, 316 |
| 方向 | Straight | 端接方式 | Crimp |
| 基体材料 | Brass | 安装类型 | Panel Mount |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 壳体镀层 | :Nickel |
| 连接器样式 | BNC | 触头材料 | Brass |
| 端接样式 | Crimp | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Brass |
| 供应商器件封装 | Bulkhead | 第一连接器安装类型 | :Cable |
产品信息
| 类型 | BNC | 连接器性别 | RCP |
| 系列 | :- | 极性 | Standard |
| 连接类型 | Coaxial Cable | 射频系列/标准 | 1337548 |
环境参数
| 插拔次数 | :500 | 工作温度 | -65°C ~ 165°C |
文档与媒体
相关型号
1-1337503-0
te connectivity / amp
Conn BNC PL 0Hz to 4GHz 50Ohm Solder RA Cable Mount Silver Individual BNC RF Connectors CONN BNC PLUG R/A 50 OHM SOLDER RF Connectors / Coaxial Connectors R/A Plg PS 50 Ohm Conn BNC PL 0Hz to 4GHz 50Ohm Solder RA Cable Mount Silver Individual Product Highlights:ConnectorConnector Type = BNCPlugTerminate To Coaxial CableCoaxial Cable Termination Type = Solder/ClampSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012
330620
TE Connectivity AMP Connectors
Connector Accessories BNC Insulating Bushing Nylon BNC RF Connectors CONN BUSHING INSULATE BNC BLKHD RF Connector Accessories INSULATION BUSHING Connector Accessories BNC Insulating Bushing Nylon Product Highlights:Insulating BushingConnector Type = BNCNot StackedInsulating Bushing Outside Diameter = 17.45 mmSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 INSULATIONBUSHING,BNC,17.45MMOUTSIDEDIAMETER TE Connectivity BNC系列 天然色 尼龙 绝缘衬套, 适用于射频同轴连接器 INSUL BUSHING BNC BLKHD PHEN
1-1337427-0
te connectivity / amp
Conn BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Silver Individual BNC RF Connectors CONN BNC PLUG STR 50 OHM SOLDER Crimp BNC straight plug-RG58 cable,50ohm RF Connectors / Coaxial Connectors RF BNC 50 Ohm STR PLUG HEX Conn BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Silver Individual Product Highlights:ConnectorConnector Type = BNCPlugTerminate To Coaxial CableCoaxial Cable Termination Type = CrimpSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 PLUG, BNC, STRAIGHT, RG58 CrimpBNCstraightplug-RG58cable,50ohm Plug; BNC; male; straight; 50Ω; RG141,RG58C/U, URM43,URM76; crimped TE Connectivity 直 50Ω 电缆安装 BNC 连接器 插头, 压接 端接, RG141 A/U, RG58 C/U电缆, 镀银本体 BNC Str Plg Hex 50Ohm Silver P
1-1478154-0
te connectivity / amp
Conn BNC PL 0Hz to 4GHz 50Ohm Solder ST Cable Mount Silver Individual BNC RF Connectors CONN BNC PLUG STR 50 OHM SOLDER BNC straight MIL clamp plug, 50 ohm RF Connectors / Coaxial Connectors Str Plg MC 50 Ohm PLUG, BNC, STRAIGHT, RG174 BNCstraightMILclampplug,50ohm
1-1478075-0
te connectivity / amp
Conn BNC PL 0Hz to 4GHz 50Ohm Crimp RA Cable Mount Silver Individual BNC RF Connectors CONN BNC PLUG R/A 50 OHM SOLDER Crimp BNC elbow plug-RG58 cable,75ohm RF Connectors / Coaxial Connectors BNC R/A Plg Hex 50 Ohm Silver P Conn BNC PL 0Hz to 4GHz 50Ohm Crimp RA Cable Mount Silver Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 PLUG, BNC, ELBOW, RG58 CrimpBNCelbowplug-RG58cable,75ohm TE Connectivity 直角 50Ω 电缆安装 BNC 连接器 插头, 压接 端接, RG141 A/U, RG58 C/U电缆, 镀银本体 BNC R/A Plg Hex 50Ohm Silver Pltd RG58C/

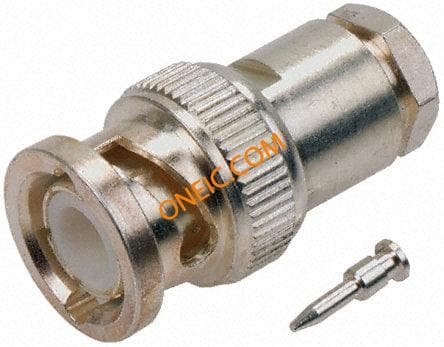

1-1478400-0
