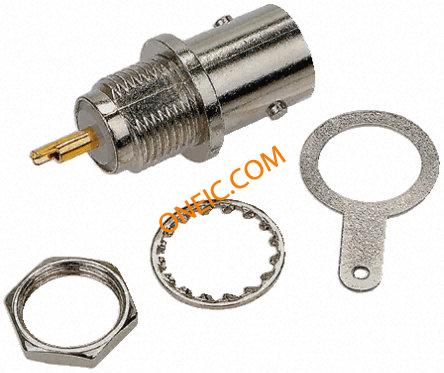

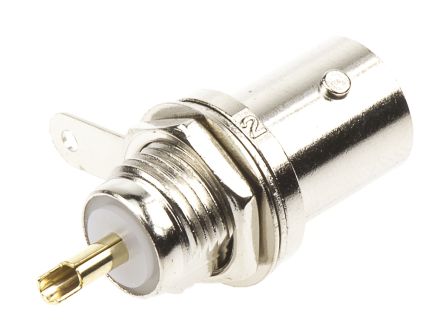

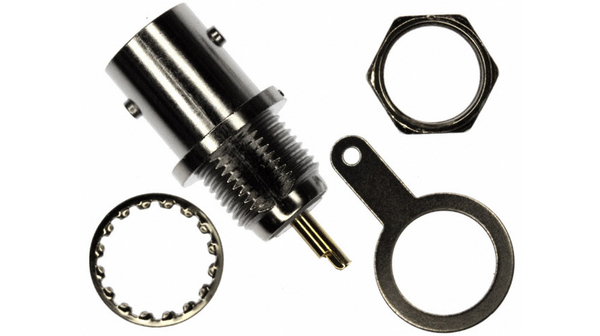

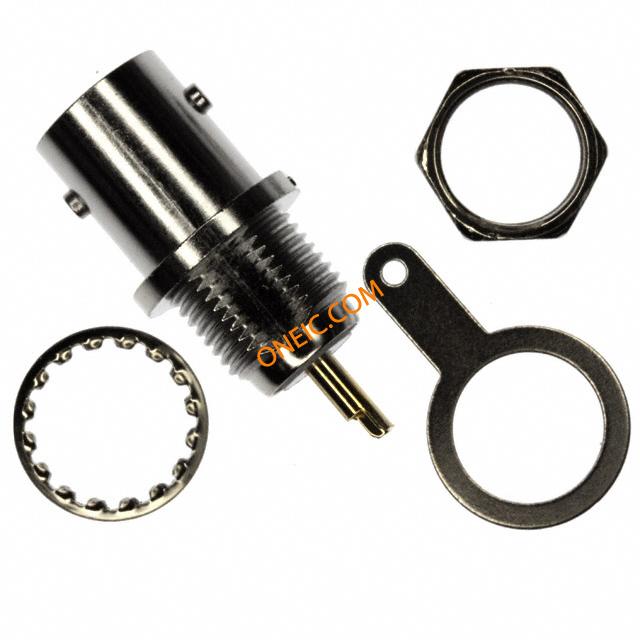

5-1634523-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder Cup ST Panel Mount Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK STR 50 OHM SOLDER BNC Ni-pl tag bulkhead socket, 50 ohm RF Connectors / Coaxial Connectors BH Skt W/TAG Nickel 50Ohm Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder Cup ST Panel Mount Gold Over Nickel Over Copper Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, BULKHEAD, 50R BNCBHSKT+TAG50OHMNICKELPLTD BNC appliance socket, straight 50 Ohm, 5-1634523-1, TE Connectivity TE Connectivity Greenpar 直 50Ω 面板安装 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC BHSkt + TAG 50Ohm Nickel Pltd |
| 分类 |
商业参数
| 产品 | Connectors | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Hand solderable with lead free solder |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
电气参数
| VSWR | :1.15 | 频率 | 0 to 4 GHz |
| 阻抗 | 50 Ohm | 隔离电源 | No |
| 额定电压 | 500V | 最大频率 | 4GHz |
| 工作电压 | :500V | 接触电阻 | :1.5mohm |
| 连接器阻抗 | 50 | 击穿电压 | :1500V |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 尺寸 | Standard | 深度 | 13 mm |
| 形状 | Round | 高度 | Not Required mm |
| 密封型 | No | 重量 | 0.01 |
| 直径 | 12.6 mm | 包装方式 | Bulk |
| 电缆类型 | :- | 本体表面处理 | Nickel |
| 方向 | Straight | 端接方式 | Solder Cup |
| 基体材料 | Zinc Alloy | 外壳颜色 | Silver |
| 安装类型 | Panel Mount | 行程角度 | Straight |
| 连接器类型 | ZDC/BNC | 接触镀层 | Gold Over Nickel Over Copper |
| 紧固类型 | Bayonet Lock | 外壳涂层 | Nickel |
| 安装样式 | Panel | 壳体镀层 | Nickel |
| 连接器样式 | BNC | 面板厚度 | 1.50 â 3.00 [0.059 â 0.118] |
| 触头材料 | Phosphor Bronze | 总长度 | 27.3 mm |
| 包装数量 | Individual | 面板安装类型 | Hex Nut |
| 主要材料 | BNC | 尺寸/外形 | 11.0 A/F |
| 端接样式 | Solder | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder Cup | 介电材料 | Polymethylpentene |
| 绝缘材料 - 类型 | Polymethylpentene | 绝缘材料 - 材质 | :PMP (Polymethylpentene) |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Phosphor Bronze |
| 面板开孔尺寸（外形） | 8.2mm x 9.5mm Double D-Shape | 供应商器件封装 | Bulkhead, Straight |
| 表面贴装焊盘尺寸 | No | 第一连接器安装类型 | :Panel |
产品信息
| 备注 | With Solder Tag | 类型 | ZDC/BNC |
| 等级 | Commercial | 连接器性别 | RCP |
| 系列 | :- | 硬件配件 | Yes |
| 极性 | No | 方向 | Front |
| 制造商全称 | Tyco Electronics | 产品子类型 | Connector |
| 连接类型 | Wire | 端口数 | 1 |
| 射频系列/标准 | 1634523 | ||
环境参数
| 插拔次数 | :50 | 工作温度 | -55°C ~ 85°C |
文档与媒体
相关型号
1-1337494-0
te connectivity / amp
Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK R/A 50 OHM PCB ZDC/BNC R/A shielded PCB socket, 50 ohm RF Connectors / Coaxial Connectors R/A Shld PCB Skt Nickel 50Ohm Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJackTerminate To Printed Circuit BoardBody Style = ElbowSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, PCB, R/A, 50R, SHIELD BNCR/ASHLDPCBSKT50OHMNICKELPLTD Socket; BNC; female; angled 90°; 50Ω; THT; polyetylene; gold plated BNC appliance socket, right angle 50 Ohm, 1-1337494-0, TE Connectivity TE Connectivity Greenpar 直角 50Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC R/A Shld PCB Skt 50Ohm Nickel Pltd
5-1634513-1
te connectivity / amp

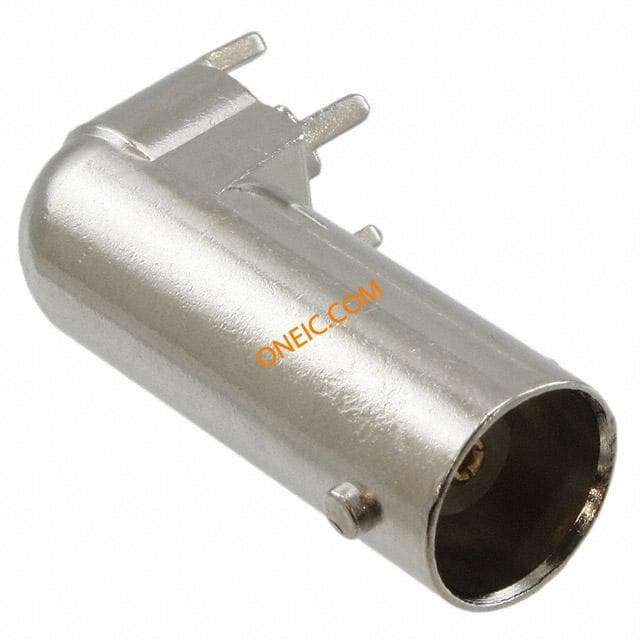

Conn ZDC/BNC RCP 0Hz to 2GHz 75Ohm Solder RA Thru-Hole Gold Individual BNC RF Connectors CONN BNC JACK R/A 50 OHM PCB BNC PCB socket 50ohm 28.0 RF Connectors / Coaxial Connectors SOCKET ELBOW 50 OHM Conn ZDC/BNC RCP 0Hz to 2GHz 75Ohm Solder RA Thru-Hole Gold Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJackTerminate To Printed Circuit BoardPCB Mount Angle = Right AngleSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 BNCLPPCBSKT50OHM28.0 TE Connectivity 直角 50Ω 通孔 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC LOW PROFILE ELBOW SOCKET 50 OHMS
5-1634534-1
te connectivity / amp
Conn ZDC/BNC Adapter RCP/RCP 0Hz to 4GHz 50Ohm ST Gold Over Nickel Over Copper Individual BNC RF Connectors CONN ADPT JACK-JACK BNC 50 OHM BNC Ni-pl jack to jack adaptor, 50 ohm RF Adapters - In Series Str Adp JK-JK Nickel 50Ohm Conn ZDC/BNC Adapter RCP/RCP 0Hz to 4GHz 50Ohm ST Gold Over Nickel Over Copper Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 ADAPTER, BNC JACK, BNC JACK, 50OHM BNCSTRADPJJ50OHMNICKELPLTD Coupler; BNC socket x2; straight; 50Ω; polymethylpentene (PMP) CONN ADAPT JACK-JACK BNC 50 OHM BNC adapter, female/female 50 Ohm, 5-1634534-1, TE Connectivity TE Connectivity 直 50Ω 射频适配器 , 0 → 4GHz, BNC 插座 到 BNC 插座 BNC Str Adp JJ 50Ohm Nickel Pltd
5-1634511-2
te connectivity / amp

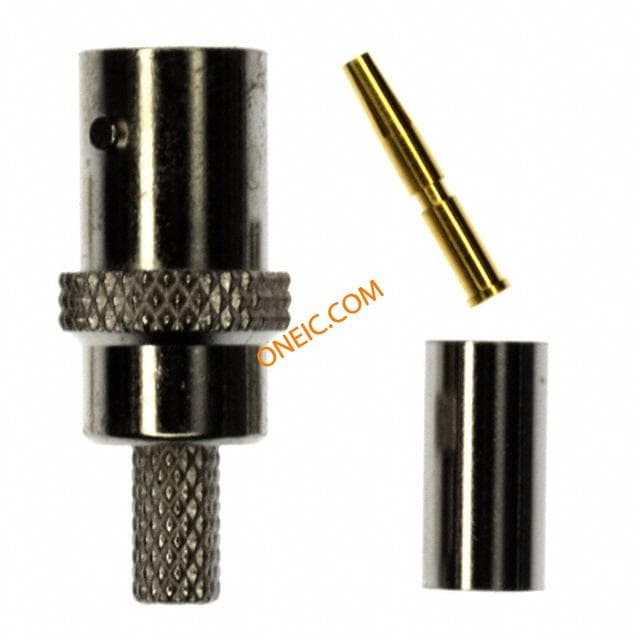

Conn ZDC/BNC RCP 0Hz to 4GHz 75Ohm Crimp ST Cable Mount Gold Tray BNC RF Connectors CONN BNC JACK STR 50 OHM CRIMP BNC Ni-pl straight jack, 50 ohm, RG58 RF Connectors / Coaxial Connectors Str Jk Hex 50 Ohm Nickel Conn ZDC/BNC RCP 0Hz to 4GHz 75Ohm Crimp ST Cable Mount Gold Tray Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 JACK, 50R, RG58C/U, STRAIGHT BNCSTRJKHEX50OHMNICKELPLTDRG58C/U,141A/U,URM43,76,KX15BULK Plug; BNC; female; straight; 50Ω; KX15,RG141,RG58C/U, RG76; crimped Cable socket BNC straight 50 Ohm, 5-1634511-2, TE Connectivity TE Connectivity 直 50Ω 电缆安装 BNC 连接器, 插口, 压接 端接, RG141 A/U, RG58 C/U电缆, 镀镍本体 BNC Str Jk Hex 50Ohm Nickel Pltd RG58C/U
5-1634516-1
te connectivity / amp
Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Crimp ST Panel Mount Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK STR 50 OHM CRIMP BNC Ni-pl bulkhead jack, 50 ohm, RG58 RF Connectors / Coaxial Connectors RG58 BH J Hex Nickel 50Ohm Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Crimp ST Panel Mount Gold Over Nickel Over Copper Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJackTerminate To Coaxial CableCoaxial Cable Termination Type = CrimpSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 JACK, BULKHEAD, 50R, RG58C/U BNCRMBHJHEX50OHMNICKELPLTDRG58C/U,141A/U,URM43,76,KX15 BNC appliance socket, straight 50 Ohm, 5-1634516-1, TE Connectivity TE Connectivity 直 50Ω 面板安装 BNC 连接器, 插口, 压接 端接, RG141 A/U, RG58 C/U电缆, 镀镍本体 BNC RM BHJ Hex 50Ohm Nickel Pltd RG58C/U
5-1634504-1
te connectivity / amp
Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder ST Panel Mount Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK STR 50 OHM SOLDER BNC Ni-pl insul bulkhead socket, 50 ohm RF Connectors / Coaxial Connectors BH Skt 50Ohm Nickel Gold Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder ST Panel Mount Gold Over Nickel Over Copper Individual Product Highlights:Connector - RFJackHousing Gender = JackTerminate To WireBody Style = StraightSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 RF COAXIAL, BNC, JACK, BULKHEADER, 50OHM BNCINSBHSKT50OHMNICKELGOLDPLTD Socket; BNC; female; insulated; straight; 50Ω; soldering; polyester BNC appliance socket, straight 50 Ohm, 5-1634504-1, TE Connectivity TE Connectivity Greenpar 直 50Ω 面板安装 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins BHSkt 50Ohm Nickel Gold Pltd
1-1634816-0
te connectivity / amp
Connector Accessories Jam Nut Brass BNC RF Connectors CONN BNC/TNC NUT HEXAGONAL BNC/TNC hexagonal nut Screws & Fasteners Hexagonal Nut Connector Accessories Jam Nut Brass Product Highlights:Jam NutConnector Type = ZDC/BNCCommercial GradeBrass Body MaterialNickel Body PlatingSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 NUT, BNC / TNC BNC/TNCHEXAGONALNUT BNC / TNC Hexagonal Nut Hex Nut BNC, 1-1634816-0, TE Connectivity TE Connectivity Greenpar系列 螺母, 使用于BNC 和 TNC 连接器
5-1634500-2
te connectivity / amp

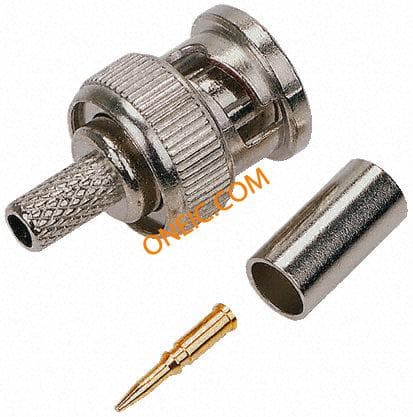

Conn ZDC/BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold Over Nickel Individual BNC RF Connectors BNCSTRPLGHEX50OHMNCKPLTDRG58C/ BNC Ni-pl straight plug, 50 ohm, RG58 RF Connectors / Coaxial Connectors Str Plg Hex Nickel 50Ohm Conn ZDC/BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold Over Nickel Individual Product Highlights:ConnectorConnector Type = ZDC/BNCPlugTerminate To Coaxial CableNot StackedSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 RF COAXIAL, BNC, PLUG, CRIMP, 50OHM CONN BNC PLUG STR 50 OHM CRIMP BNCSTRPLGHEX50OHMNICKELPLTDRG58C/U,141A/U,URM43,76,BELDEN9907,KX15 Plug; BNC; male; straight; 50Ω; KX15,RG141,RG58C/U, URM43,URM76 Cable plug BNC straight 50 Ohm, 5-1634500-2, TE Connectivity TE Connectivity 直 50Ω 电缆安装 BNC 连接器 插头, 压接 端接, RG141 A/U, RG303/U, RG58 C/U电缆, 镀镍本体 BNC Str Plg Hex 50Ohm Nickel Pltd RG58C/
