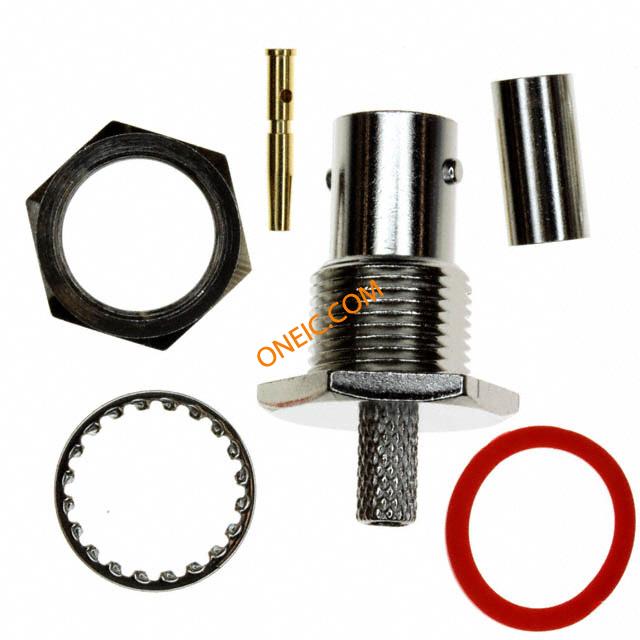

5-1634516-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Crimp ST Panel Mount Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK STR 50 OHM CRIMP BNC Ni-pl bulkhead jack, 50 ohm, RG58 RF Connectors / Coaxial Connectors RG58 BH J Hex Nickel 50Ohm Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Crimp ST Panel Mount Gold Over Nickel Over Copper Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJackTerminate To Coaxial CableCoaxial Cable Termination Type = CrimpSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 JACK, BULKHEAD, 50R, RG58C/U BNCRMBHJHEX50OHMNICKELPLTDRG58C/U,141A/U,URM43,76,KX15 BNC appliance socket, straight 50 Ohm, 5-1634516-1, TE Connectivity TE Connectivity 直 50Ω 面板安装 BNC 连接器, 插口, 压接 端接, RG141 A/U, RG58 C/U电缆, 镀镍本体 BNC RM BHJ Hex 50Ohm Nickel Pltd RG58C/U |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | A97573 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | ||
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 最大频率 | 4GHz |
| 工作电压 | :500V | 接触电阻 | :1.5mohm |
| 击穿电压 | :1500V | 绝缘电阻 | :5000Mohm |
| 阻抗 - 不平衡/平衡 | :RG58 | ||
机械参数
| 尺寸 | Standard | 深度 | 17.5 mm |
| 高度 | Not Required mm | 重量 | 0.01 |
| 直径 | 17.5 mm | 包装方式 | Bulk |
| 电缆类型 | RG-58C, RG-141A, Belden 9907, KX15, URM43, URM76 | 本体表面处理 | Nickel |
| 电缆组 | RG-58C, 141A, Belden 9907 | 端接方式 | Crimp |
| 基体材料 | Zinc Alloy | 外壳颜色 | Silver |
| 安装类型 | Panel Mount | 行程角度 | Straight |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold Over Nickel Over Copper |
| 紧固类型 | Bayonet Lock | 外壳涂层 | Nickel |
| 安装样式 | Panel | 壳体镀层 | Nickel Over Copper |
| 连接器样式 | BNC | 触头材料 | Brass |
| 总长度 | 30.64 mm | 主要材料 | BNC |
| 端接样式 | Crimp | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Crimp | 介电材料 | Polymethylpentene (PMP) |
| 绝缘材料 - 类型 | Polyphthalamide | 绝缘材料 - 材质 | :Zinc |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Brass |
| 供应商器件封装 | Bulkhead | 第一连接器安装类型 | :Panel |
产品信息
| 类型 | ZDC/BNC | 连接器性别 | RCP |
| 系列 | :- | 极性 | Normal |
| 连接类型 | Coaxial Cable | 射频系列/标准 | 1634516 |
环境参数
| 插拔次数 | :50 | 工作温度 | -55°C ~ 85°C |
文档与媒体
相关型号
1-1337543-0
te connectivity / amp
Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK R/A 50 OHM PCB BNC white r/a PCB socket, 50 ohm RF Connectors / Coaxial Connectors R/A PCB Skt White 50Ohm Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 BNC, JACK, PCB, R/A, 50OHM, WHITE BNCINSR/APCBSKT50OHMWHITE Socket; BNC; female; insulated; angled 90°; 50Ω; THT; polyester BNC appliance socket, right angle 50 Ohm, 1-1337543-0, TE Connectivity TE Connectivity Greenpar 直角 50Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins R/A PCB Skt 50Ohm White
1-1634613-0
te connectivity / amp
Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK R/A 50 OHM PCB BNC black low profile PCB skt, r/a,50ohm RF Connectors / Coaxial Connectors PCB Skt MP Black 50Ohm Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, INS, PCB, 50R, BLACK BNCINSLPPCBSKT50OHMMPBLACK Socket; BNC; female; insulated; angled 90°; 50Ω; THT; polyetylene TE Connectivity 直角 50Ω 通孔 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins LP PCB Skt 50Ohm Black
1-1337541-0
te connectivity / amp
Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder ST Thru-Hole Gold Individual RF Connectors Str PCB Skt MP White 50Ohm BNC RF Connectors CONN BNC JACK STR 50 OHM PCB BNC insulated PCB socket, white, 50 ohm RF Connectors / Coaxial Connectors Str PCB Skt MP White 50Ohm Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder ST Thru-Hole Gold Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJack ReceptacleTerminate To Printed Circuit BoardBody Style = StraightSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, INS, PCB, 50R, WHITE BNCINSSTRPCBSKT50OHMMPWHITE Socket; BNC; female; straight; 50Ω; THT; polyetylene; gold plated TE Connectivity Greenpar 直 50Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins Str PCB Skt 50Ohm White
1-1337494-0
te connectivity / amp
Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK R/A 50 OHM PCB ZDC/BNC R/A shielded PCB socket, 50 ohm RF Connectors / Coaxial Connectors R/A Shld PCB Skt Nickel 50Ohm Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJackTerminate To Printed Circuit BoardBody Style = ElbowSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, PCB, R/A, 50R, SHIELD BNCR/ASHLDPCBSKT50OHMNICKELPLTD Socket; BNC; female; angled 90°; 50Ω; THT; polyetylene; gold plated BNC appliance socket, right angle 50 Ohm, 1-1337494-0, TE Connectivity TE Connectivity Greenpar 直角 50Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC R/A Shld PCB Skt 50Ohm Nickel Pltd
1-1634505-0
te connectivity / amp
Conn ZDC/BNC RCP 50Ohm Solder ST Thru-Hole Gold Individual BNC RF Connectors CONN BNC JACK STR 50 OHM PCB BNC black insul straight socket, 50 ohm RF Connectors / Coaxial Connectors Str PCB Skt MP Black 50Ohm Conn ZDC/BNC RCP 50Ohm Solder ST Thru-Hole Gold Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJackTerminate To Printed Circuit BoardBody Style = StraightSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, INS, PCB, 50R, BLACK BNCINSSTRPCBSKT50OHMMPBLACK TE Connectivity Greenpar 直 50Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins Str PCB Skt 50Ohm Black
1-1337542-0
te connectivity / amp
Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK R/A 50 OHM PCB BNC white low profile PCB skt,r/a, 50ohm RF Connectors / Coaxial Connectors PCB Skt 50Ohm MP White Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 RF COAXIAL, BNC, JACK, RA, SOLDER, 50OHM BNCINSLPPCBSKT50OHMMPWHITE Socket; BNC; female; insulated; angled 90°; 50Ω; THT; polyetylene TE Connectivity Greenpar 直角 50Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins LP PCB Skt 50Ohm White
1-1634612-0
te connectivity / amp
Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK R/A 50 OHM PCB BNC Ni-pl r/a PCB socket, 50 ohm RF Connectors / Coaxial Connectors PCB Skt 50Ohm MP Black Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 RF COAXIAL, BNC, JACK, THT, R/A, 50OHM BNCINSPCBSKT50OHMMPBLACK Socket; BNC; female; insulated; angled 90°; 50Ω; THT; polyetylene TE Connectivity Greenpar 直角 50Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins R/A PCB Skt 50Ohm Black
5-1634504-1
te connectivity / amp
Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder ST Panel Mount Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK STR 50 OHM SOLDER BNC Ni-pl insul bulkhead socket, 50 ohm RF Connectors / Coaxial Connectors BH Skt 50Ohm Nickel Gold Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder ST Panel Mount Gold Over Nickel Over Copper Individual Product Highlights:Connector - RFJackHousing Gender = JackTerminate To WireBody Style = StraightSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 RF COAXIAL, BNC, JACK, BULKHEADER, 50OHM BNCINSBHSKT50OHMNICKELGOLDPLTD Socket; BNC; female; insulated; straight; 50Ω; soldering; polyester BNC appliance socket, straight 50 Ohm, 5-1634504-1, TE Connectivity TE Connectivity Greenpar 直 50Ω 面板安装 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins BHSkt 50Ohm Nickel Gold Pltd
1-1634816-0
te connectivity / amp
Connector Accessories Jam Nut Brass BNC RF Connectors CONN BNC/TNC NUT HEXAGONAL BNC/TNC hexagonal nut Screws & Fasteners Hexagonal Nut Connector Accessories Jam Nut Brass Product Highlights:Jam NutConnector Type = ZDC/BNCCommercial GradeBrass Body MaterialNickel Body PlatingSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 NUT, BNC / TNC BNC/TNCHEXAGONALNUT BNC / TNC Hexagonal Nut Hex Nut BNC, 1-1634816-0, TE Connectivity TE Connectivity Greenpar系列 螺母, 使用于BNC 和 TNC 连接器

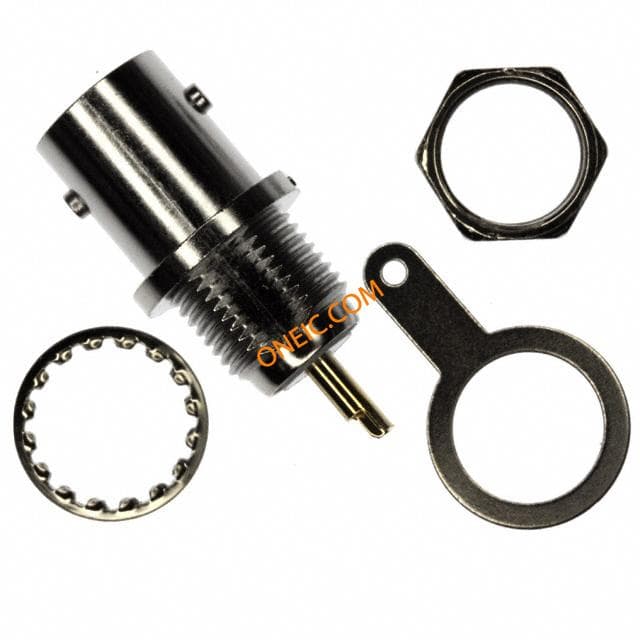

5-1634523-1
