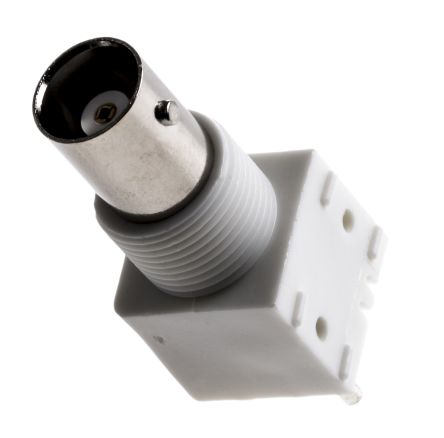

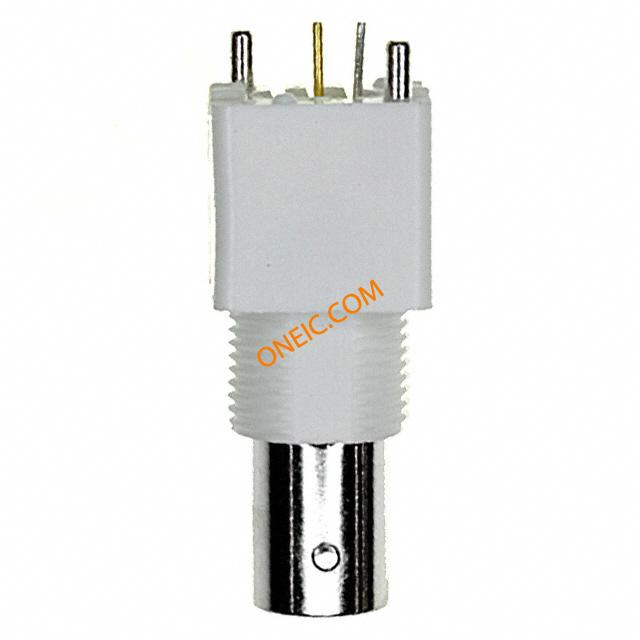

1-1337541-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder ST Thru-Hole Gold Individual RF Connectors Str PCB Skt MP White 50Ohm BNC RF Connectors CONN BNC JACK STR 50 OHM PCB BNC insulated PCB socket, white, 50 ohm RF Connectors / Coaxial Connectors Str PCB Skt MP White 50Ohm Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder ST Thru-Hole Gold Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJack ReceptacleTerminate To Printed Circuit BoardBody Style = StraightSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, INS, PCB, 50R, WHITE BNCINSSTRPCBSKT50OHMMPWHITE Socket; BNC; female; straight; 50Ω; THT; polyetylene; gold plated TE Connectivity Greenpar 直 50Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins Str PCB Skt 50Ohm White |
| 分类 |
商业参数
| 产品 | Connectors | 产品类别 | RF Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant By Exemption | 海关税号 | 85369010 |
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 最大频率 | 4 GHz | 工作电压 | :500V |
| 接触电阻 | :1.5mohm | 击穿电压 | :1500V |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 尺寸 | Standard | 重量 | 0.01 |
| 包装方式 | Bulk | 电缆类型 | :- |
| 本体表面处理 | Nickel | 方向 | Straight |
| 端接方式 | Solder | 基体材料 | Zinc Alloy |
| 安装类型 | Through Hole | 外壳镀层 | Nickel |
| 行程角度 | Straight | 连接器类型 | Socket |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 外壳涂层 | Nickel | 安装样式 | PCBMount |
| 壳体镀层 | :Nickel | 连接器样式 | BNC |
| 触头材料 | Brass | 壳体材料 | Zinc |
| 包装数量 | 1 | 主要材料 | BNC |
| 连接器 - 电缆 | socket | 端接样式 | Solder |
| 连接器颜色 | :White | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder | 介电材料 | Polyethylene (PE) |
| 绝缘材料 - 材质 | :Zinc | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Brass | 供应商器件封装 | Straight |
| 触点材料 - 镀层 | gold plated | 第一连接器安装类型 | :PCB |
产品信息
| SPG | 1 | 类型 | ZDC/BNC |
| 连接器性别 | RCP | 系列 | :- |
| 产品特性 | Board Guide | 极性 | Normal |
| 连接类型 | PCB | 单元数量 | 1 |
| 射频系列/标准 | 1337541 | ||
环境参数
| 插拔次数 | :50 | 工作温度 | - 55 C to + 85 C |
