点击放大查看
5-103166-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tube .100 inch AMPMODU Headers CONN HEADER R/A .100 10POS 30AU TE Connectivity AMPMODU Series 2.54mm Pitch 10 Way 2 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings SHROUDED RA DUAL 10 detent windows Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 10Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, RIGHT ANGLE, 2ROW, 10WAY 2.54mm,Header,shrd,DR,10W,90°,Sn TE Connectivity AMPMODU Mod II 系列 2.54mm节距 10路 (2排) 直角 PCB 针座, 焊接端接, 3A , 通孔 10 MODII HDR DRRA SHRD LF |
| 分类 |
商业参数
| 商标名 | AMPMODU | 其他名称 | A33081 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Trays |
| 工厂包装数量 | 160 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
| 无铅定义 | Wave solder capable to 240°C | 认证机构 | :CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 量程（°/s） | :TE - AMPMODU Mod II Series | 额定电压 | :250V |
| 开关功能 | Detent Windows | 工作电压 | :250V |
| 击穿电压 | 750 | 最大额定电流 | 3A |
| 绝缘电阻 | 5,000 | ||
机械参数
| 颜色 | Black | 深度 | 16.23 mm |
| 间距 | 2.54 mm | 高度 | 10.49 mm |
| 重量 | 0.002 | 包装方式 | Tray |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚间距 | :2.54mm |
| 第一连接器 | No | 第二连接器 | With |
| 触点形状 | Square | 外壳颜色 | Black |
| 安装类型 | Right Angle | 连接器类型 | Shrouded |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Detent Lock |
| 安装样式 | Through Hole | 排数 | 2 |
| 封装形式 | 4-Sided | 锁定特性 | Detent Windows |
| 外形（宽 x 高） | Standard | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 总长度 | 1.68 [0.066] |
| 安装特性 | Without | 面板安装类型 | Without |
| 主要材料 | Connector | 尺寸/外形 | 0.64 [.025] |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 10 | 接触件端接 | :Through Hole Right Angle |
| 位数 | 10 | 柱体长度（配合） | 8.08 mm |
| 中心触点材料 | 2.54 x 2.54 [.100 x .100] | 接触长度 - 配合 | 8.08 [0.318] |
| 表面贴装焊盘尺寸 | No | 端子柱长度 | 3.43 [0.135] |
| 接触镀层厚度 | 30µin (0.76µm) | 安装面板厚度 | With |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | AMPMODU | 制造商全称 | Tyco Electronics |
| 产品子类型 | Header | 选择性装载 | No |
| 加载位置数 | All | ||
环境参数
| 温度 | No | 工作温度 | -55 â +105 |
相关型号
87977-3
te connectivity / amp
Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 10POS .100 POL DUAL Headers & Wire Housings 10P HOUSING Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 10Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING. RECEPTACLE, 10WAY CONNECTOR,HOUSING,RECEPTACLE,MODIV,10POS,DUALROW,MARKED,POLARIZED Crimp housing Pitch2.54 mm Poles 10 Contact DesignStamped Double row / straight / with polarization AMPMODU MOD IV, 87977-3, TE Connectivity 10 MODIV HSG DR MRKD .100 POL
1-102694-0
te connectivity / amp
Conn IDC Connector RCP 10 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 10POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 10P 26-22 Conn IDC Connector RCP 10 POS 2.54mm IDT ST Cable Mount Product Highlights:ConnectorNot PreloadedHousing Gender = Connector - ReceptacleAccepts Contact Gender = Receptacle2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 10 AMPMODU MT ASSY DR .100CL

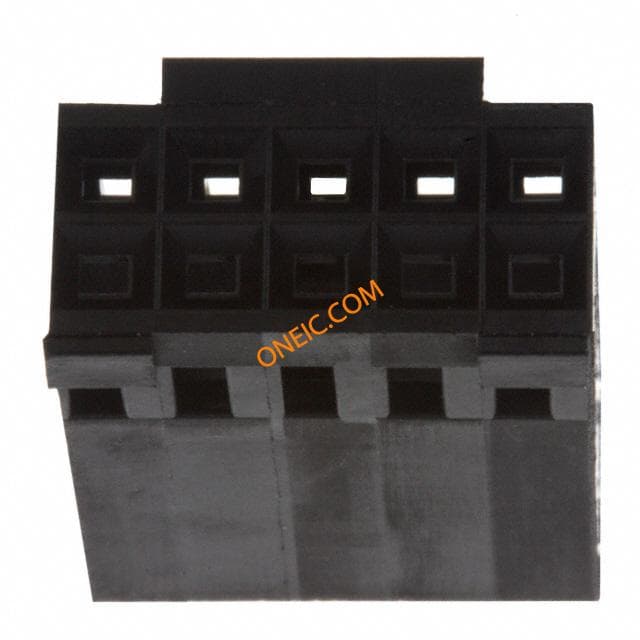

3-87977-0
