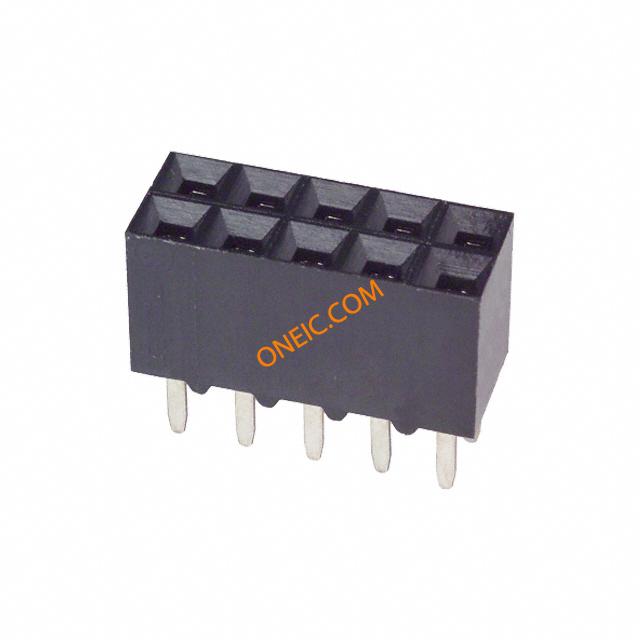

534998-5

制造商	TE Connectivity Ltd.
描述	Conn Socket Strip RCP 10 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 10POS .100 VERT DUAL Headers & Wire Housings CONN RECEPT 10P VRT 2700 Conn Socket Strip RCP 10 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IVNumber of Positions = 10Number of Rows = DualLow ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, VERTIVDRCERECASY,10MODIVVRTDRCE100/125 10 MODIV VRT DR CE 100/125
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Rail / Tube	工厂包装数量	45

合规参数

RoHS	Contains lead / RoHS non-compliant	MIL-C-55032	否
标准编号	CSA LR7189, UL E28476	材料阻燃等级	UL 94V-0

电气参数

接触电阻	12 mohm	输入电阻	5000
钳位电压	750	额定交流电压	333
最大额定电流	2 A

机械参数

颜色	Black	深度	5.03 mm
间距	2.54 mm	高度	6.73 mm
包装方式	Tube	引脚样式	圆形, 圆形
排间距	0.100" (2.54mm)	端接方式	Solder
触头类型	Female Socket	外壳颜色	Black
安装类型	Through Hole	连接器类型	Receptacle, Bottom or Top Entry
接触镀层	Gold Over Nickel	安装样式	Through Hole
排数	2	压力（PSI）	标准
端子样式	短点	连接器用途	闭合入口, 顶部
插入件材料	磷青铜	触头材料	Phosphor Bronze
壳体材料	Polycyclohexylenedimethylene Terephthalate (PCT)	总长度	12.7 mm
包装数量	45	面板安装类型	通孔 - 焊接
端接样式	Through Hole	触点数	10
接触件尾部长度	3.18	位数	10
衬套/护套类型	不带	兼容外壳尺寸（如TM-700等）	与接头配合
端子柱长度	3.77 mm [ .148 in ]	接触镀层厚度	30µin (0.76µm)

产品信息

备注	TE 建议使用接合金或带双层电镀母端配件的双层电镀公端。, 为了获得最小接合柱长度，在最大触点尺寸上增加 .51 [.020]（不包含斜面上的柱引线）。	类型	Socket Strip
连接器性别	RCP	系列	AMPMODU MOD IV
已删除	Not Compliant	可密封	否
可堆叠	是	产品子类型	Receptacles / Sockets - PCB
装配配置	板支座	加载位置数	All

环境参数

测试温度	否	工作温度	- 65 C to + 105 C
封装热阻	1.57 mm [ .062 in ]
