103168-3

点击放大查看

103168-3

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 10POS 30AU TE Connectivity AMPMODU Series 2.54mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings SHROUDED VER DUAL 10 detent windows Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 10Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, MODUTHRUDRHDRSHRD,10MODIIHDRDRSTSHRD.100CL TE Connectivity AMPMODU Mod II 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 3A , 通孔 10 MODII HDR DRST SHRD .100CL
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU产品类别Headers & Wire Housings
标准包装数量Trays工厂包装数量160

合规参数

RoHSContains lead / RoHS non-compliant无铅定义Wave solder capable to 240°C
标准编号CSA LR7189, UL E28476RoHS/ELV合规状态ELV compliant, 5 of 6 Compliant
材料阻燃等级UL 94V-0

电气参数

开关功能Detent Windows连接器阻抗制动器窗口
最大额定电流3A保护额定电压（VPR）750 Vrms

机械参数

颜色Black深度10.16 mm
间距2.54 mm高度11.18 mm
底座类型不带锁定类型带有
包装方式Tray壳体颜色黑色
引脚样式正方形稳定器不带
方向直排间距0.100" (2.54mm)
端接方式Solder触头类型Male Pin
第一连接器No第二连接器With
触点形状Square外壳颜色Black
安装类型Straight连接器类型Shrouded
接触镀层Gold Over Nickel紧固类型Detent Lock
安装样式Through Hole排数2
封装形式4-Sided外壳材料（壳体）4- 面
插入件材料磷青铜锁定特性Detent Windows
外形（宽 x 高）Standard触头材料Phosphor Bronze
壳体材料Thermoplastic总长度1.68 [0.066]
安装特性Without包装数量160
面板安装类型Without主要材料InterconnectSystem
尺寸/外形0.64 [.025]端接排数焊接
端接样式Through Hole第一连接器类型带罩
第一触头极性Pin (Male)外径.64 mm [ .025 in ]
触点数10端接表面处理带有
位数10柱体长度（配合）8.08 mm
安装孔直径带有中心触点材料2.54 x 2.54 [.100 x .100]
接触长度 - 配合8.08 [0.318]表面贴装焊盘尺寸No
端子柱长度3.18 [0.125]接触镀层厚度30µin (0.76µm)
静电放电屏蔽不带外壳尺寸，连接器布局1.68 mm [ .066 in ]
第一连接器安装特征否

产品信息

类型Shrouded Header连接器性别HDR
系列AMPMODU覆盖范围覆盖
钥匙类型否制造商全称AMP
产品子类型Header选择性装载No
加载位置数All

环境参数

密封等级不带温度No
防护等级带罩工作温度-55 – +105
结工作温度否

文档与媒体

在线文档
103168-3

相关型号

87977-3

87977-3

te connectivity / amp

Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 10POS .100 POL DUAL Headers & Wire Housings 10P HOUSING Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 10Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING. RECEPTACLE, 10WAY CONNECTOR,HOUSING,RECEPTACLE,MODIV,10POS,DUALROW,MARKED,POLARIZED Crimp housing Pitch2.54 mm Poles 10 Contact DesignStamped Double row / straight / with polarization AMPMODU MOD IV, 87977-3, TE Connectivity 10 MODIV HSG DR MRKD .100 POL

¥4.6240
详情
1-102694-0

1-102694-0

te connectivity / amp

Conn IDC Connector RCP 10 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 10POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 10P 26-22 Conn IDC Connector RCP 10 POS 2.54mm IDT ST Cable Mount Product Highlights:ConnectorNot PreloadedHousing Gender = Connector - ReceptacleAccepts Contact Gender = Receptacle2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 10 AMPMODU MT ASSY DR .100CL

¥21.6920
详情

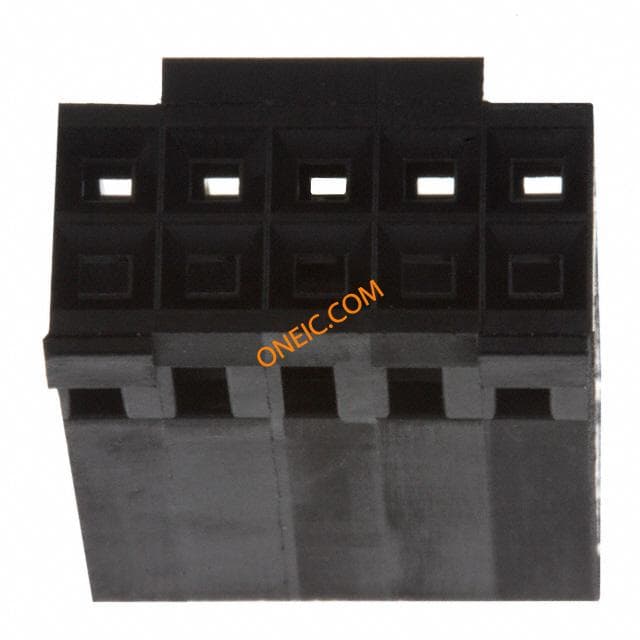

3-87977-0
