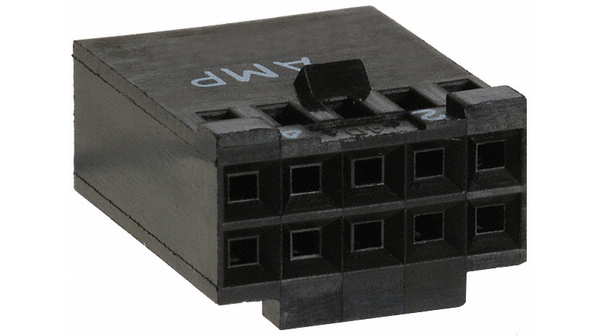

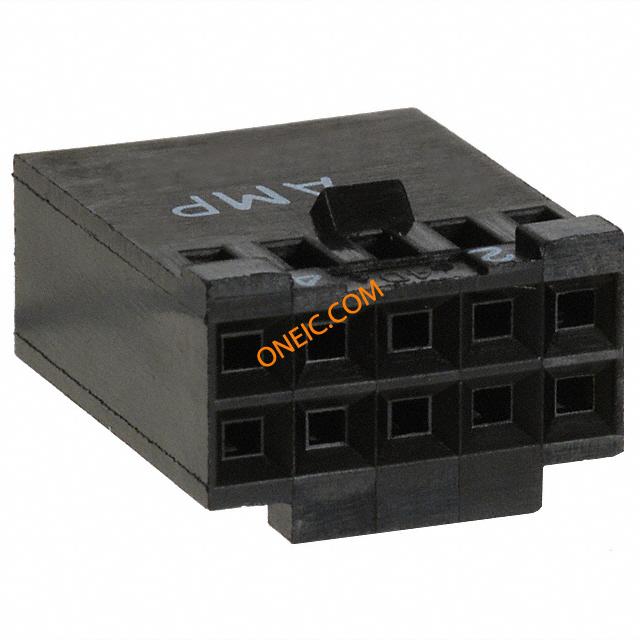

87631-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 10POS .100 POL DUAL 2.54mm,housing,10W,Mod IV,DR,snap in Headers & Wire Housings POLARIZED HSG 10 DBL detent latching Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 10Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 2 ROW, 2X5WAY Housing,Connector;Crimp-Snap;Dual;10;250VAC;3A;750V Crimp housing Pitch2.54 mm Poles 10 Contact DesignStamped Double row / straight / without polarization AMPMODU MOD IV, 87631-6, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 10 路 直 母 电缆安装 PCB 壳体 10 MODIV HSG DR MRKD .100 POL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | ULE28476,CSALR7189,RoHSCompliant,ELVCompliant |
| 海关税号 | 85369010 | 认证机构 | :CSA, UL |
电气参数
| 量程（°/s） | :TE - AMPMODU Mod IV Series | 额定电压 | 250 V |
| 开关功能 | Detent Latching | 击穿电压 | 750V |
| 最大额定电流 | 3 A | 绝缘电阻 | :500Mohm |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Black | 深度 | 15.24mm |
| 间距 | 2.54 mm | 长度 | 12.7mm |
| 重量 | 0.01 | 包装方式 | Bulk |
| 导线线规 | 20-30 AWG | 排间距 | 0.100" (2.54mm) |
| 端接方式 | :Crimp | 触头类型 | Female Socket |
| 极化 | Yes | 外壳颜色 | Black |
| 安装类型 | Straight | 行程角度 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | :Gold |
| 紧固类型 | Locking Ramp | 排数 | 2 |
| 封装形式 | :Black Thermoplastic UL94V-0 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon | 总长度 | 12.7 mm |
| 主要材料 | InterconnectSystem | 连接器 - 电缆 | Yes |
| 插针孔直径 | 0.1" | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 10 |
| 接触件端接 | Crimp | 绝缘直径 | 0.069or0.046" |
| 位数 | 10 | 第一连接器安装类型 | :PC Board |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Mod IV |
| 制造商全称 | AMPMODU/MODIVSeries | 产品子类型 | Receptacles / Sockets - Housings |
| 应用细节 | Board to Board | 矩阵（列×行） | 0.100x0.100in. |
| 适用产品/相关产品 | Centerline Double-Row Connector | ||
环境参数
| 工作温度 | - 65 C to + 105 C | ||
文档与媒体
相关型号
