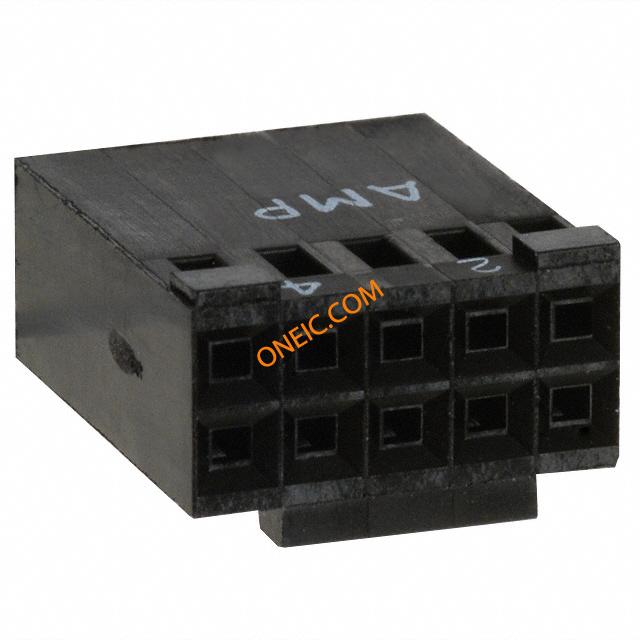

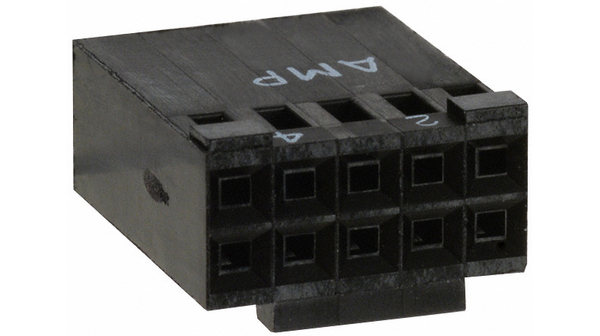

87977-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 10POS .100 POL DUAL Headers & Wire Housings 10P HOUSING Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 10Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING. RECEPTACLE, 10WAY CONNECTOR,HOUSING,RECEPTACLE,MODIV,10POS,DUALROW,MARKED,POLARIZED Crimp housing Pitch2.54 mm Poles 10 Contact DesignStamped Double row / straight / with polarization AMPMODU MOD IV, 87977-3, TE Connectivity 10 MODIV HSG DR MRKD .100 POL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | ULListed,CSACertified,RoHSCompliant,ELVCompliant |
| 海关税号 | 85369010 | 认证机构 | CSA,UL |
电气参数
| 量程（°/s） | :TE - AMPMODU Mod IV Series | 额定电压 | 250 VAC |
| 开关功能 | Detent Latching | 击穿电压 | 750V |
| 最大额定电流 | 3 A | 绝缘电阻 | 5000Megohms |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Black | 深度 | 15.24 mm |
| 间距 | 2.54 mm | 重量 | 0.002 |
| 包装方式 | Bulk | 导线线规 | 20-30 AWG |
| 排间距 | 0.100" (2.54mm) | 端接方式 | :Crimp |
| 触头类型 | Female Socket | 引脚间距 | :2.54mm |
| 极化 | Yes | 外壳颜色 | Black |
| 安装类型 | Straight | 行程角度 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | :- |
| 紧固类型 | Locking Ramp | 排数 | 2 |
| 触头材料 | :- | 壳体材料 | Nylon |
| 总长度 | 12.7 mm | 主要材料 | InterconnectSystem |
| 连接器 - 电缆 | No | 插针孔直径 | 0.1" |
| 端接样式 | Through Hole | 第一触头极性 | Socket (Female) |
| 触点数 | 10 | 接触件端接 | Crimp |
| 位数 | 10 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | AMPMODU MOD IV |
| 制造商全称 | AMPMODU/MODIVSeries | 产品子类型 | Receptacles / Sockets - Housings |
| 矩阵（列×行） | 0.100x0.100in. | ||
环境参数
| 工作温度 | - 65 C to + 105 C | ||
文档与媒体
相关型号
