点击放大查看

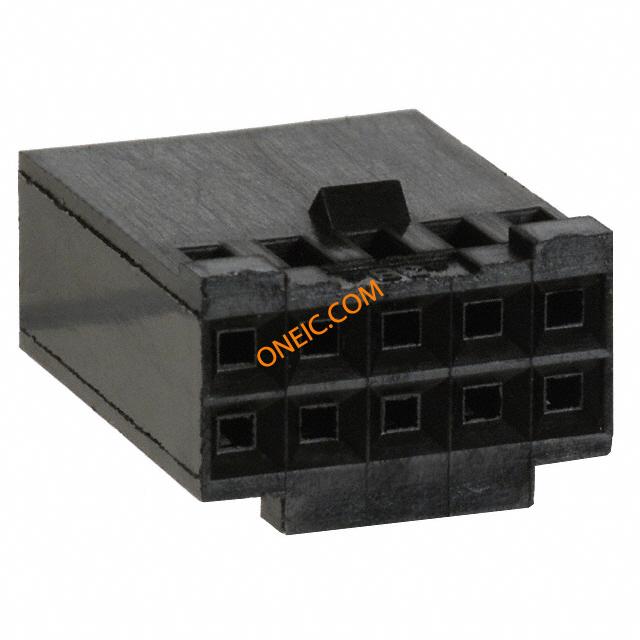

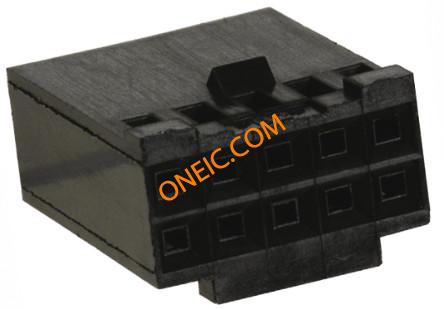

87631-5

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 10POS .100 POL DUAL CONNECTOR, HOUSING, RECEPTACLE, MOD IV Headers & Wire Housings 10P HOUSING Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 10Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONNECTOR,HOUSING,RECEPTACLE,MODIV,10POSITION,DUALROW,POLARIZED 10 MODIV HSG COMP DR .100 POL
分类	连接器解决方案矩形连接器FPC/FFC矩形连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	标准编号	CSA LR7189, UL E28476
材料阻燃等级	UL 94V-0

电气参数

额定电压	250 V	开关功能	Detent Latching
供电电压	250 VAC	接触电阻	12 mΩ
输入电阻	5000	连接器阻抗	压接
最大额定电流	3 A	最小供电电压	250VAC
保护额定电压（VPR）	750 V

机械参数

颜色	Black	深度	15.24 mm
间距	2.54 mm	高度	6.1 mm [ .24 in ]
长度	12.7 mm [ .5 in ]	锁定类型	带有
包装方式	Bulk	壳体颜色	黑色
导线线规	20-30 AWG	排间距	0.100" (2.54mm)
触头类型	Female Socket	外壳颜色	Black
安装类型	Straight	连接器类型	Receptacle
紧固类型	Locking Ramp	排数	2
插入件材料	铍铜	触头材料	Phosphor Bronze
壳体材料	Nylon	总长度	12.7 mm
包装数量	1	主要材料	InterconnectSystem
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	10	接触件端接	Crimp
位数	10	兼容外壳尺寸（如TM-700等）	公端
安装孔直径	带有	静电放电屏蔽	不带

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU/MOD IV
制造商全称	AMPMODU/MODIVSeries	产品子类型	Receptacles / Sockets - Housings
抽头/步进数	1	其他规格	否
应用细节	Board to Board

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

- 65 C to + 105 C
