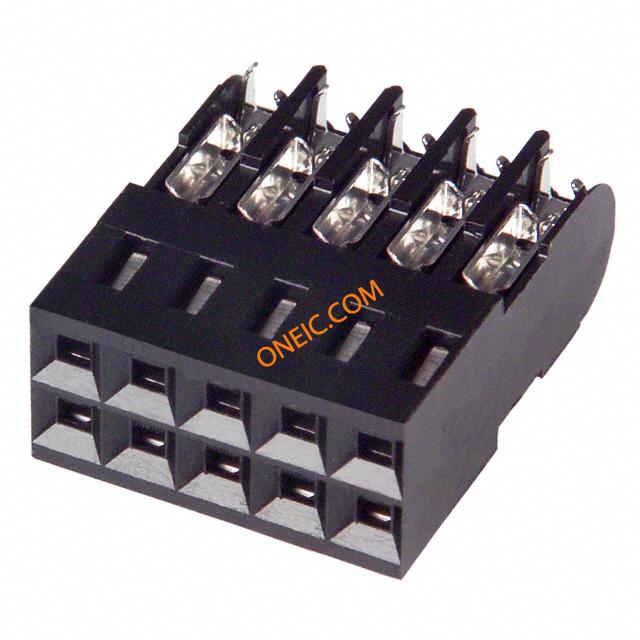

5-102448-3

制造商	TE Connectivity Ltd.
描述	Conn IDC Connector RCP 10 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 10POS .100 IDC GOLD 10 AMPMODU MT ASSY DR.100CL SN
分类	连接器解决方案矩形连接器FPC/FFC矩形连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

Trays

合规参数

RoHS	Lead free / RoHS Compliant	标准	CSA LR7189, UL E28476
材料阻燃等级	UL 94V-0

电气参数

输入电阻	5000	连接器阻抗	刺破式压接 (IDC)
最大额定电流	3	保护额定电压（VPR）	600 V

机械参数

颜色	Black	间距	2.54 mm
高度	6.1 mm [ .24 in ]	长度	12.7 mm [ .5 in ]
包装方式	Tray	导线类型	Discrete or Ribbon Cable
壳体颜色	黑色	导线线规	20-22 AWG
排间距	0.100" (2.54mm)	端接方式	IDT
触头类型	Female Socket	第二连接器	Without
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
接触镀层	Gold Over Nickel	排数	2
插入件材料	铜合金	操作力	Standard
壳体材料	PBT	包装数量	250
电缆端接方式	IDC	连接器 - 电缆	Yes
端接样式	插座	触点数	10
绝缘直径	1.27 mm	位数	10
兼容外壳尺寸（如TM-700等）	公端	安装孔直径	不带
接触镀层厚度	30µin (0.76µm)

产品信息

类型	IDC Connector	连接器性别	RCP
产品特性	Closed End	产品子类型	连接器

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

-65 – 105

相关型号

103168-3

te connectivity / amp

Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 10POS 30AU TE Connectivity AMPMODU Series 2.54mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings SHROUDED VER DUAL 10 detent windows Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 10Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, MODUTHRUDRHDRSHRD,10MODIIHDRDRSTSHRD.100CL TE Connectivity AMPMODU Mod II 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 3A , 通孔 10 MODII HDR DRST SHRD .100CL

¥7.8880

详情

104352-5

te connectivity / amp

Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 10POS DUAL TIN Headers & Wire Housings 10 MODII HDR DRST B/ 6400 10 MODII HDR DRST B/A W/HD 10 MODII HDR DRST B/A W/HD Search Keywords:board to board, AMPMODU, pcb connectors,

¥1.6320

详情

5-102617-3

te connectivity / amp

Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole CONN HEADER R/A .100 10POS 15AU Headers & Wire Housings HDR 2X05P R/A T/H Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 10Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, RIGHT ANGLE, 2ROW, 10WAY 10 MODII HDR DRRA SHRD LF

¥5.7800

详情

104351-5

te connectivity / amp

Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tube .100 inch AMPMODU Headers CONN HDR BRKWAY 10POS DUAL 15AU Headers & Wire Housings MOD II HEADER 10P 640 10 MODII HDR DRST B/A W/HD

¥2.7064

详情

5-146130-4

te connectivity / amp

Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST SMD .100 inch AMPMODU Headers CONN HDR BRKWAY 10P STR DUAL SMT TE Connectivity AMPMODU Series 2.54mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings VT 2X05P .1 230/SMT 30AU Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST SMD Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = DualNumber of Positions = 10Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, BOARD-BOARD CONN, HEADER, 10WAY, 2ROW Headervertsmt10w2row2.54mmAmpModu TE Connectivity AMPMODU Mod II 系列 2.54mm节距 10路 (2排) 直引脚管座, 焊接端接, 3A , 表面安装 10 MODII HDR DRST SFMNT B/A LF

¥2.9852

详情

5-146256-5

te connectivity / amp

Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER B/A 10POS DUAL GOLD TE Connectivity AMPMODU Series 2.54mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings VT 2X05P .1 230/110 15AU Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = DualNumber of Positions = 10Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, BOARD-BOARD CONN, HEADER, 10WAY, 2ROW Header;Breakaway;0.100x0.100in.;PCBoard;Dual;10;0.025in.;0.12in. TE Connectivity AMPMODU Mod II 系列 2.54mm节距 10路 (2排) 直引脚管座, 焊接端接, 3A , 通孔 10 MODII HDR DRST B/A .100CL L

¥2.6384

详情

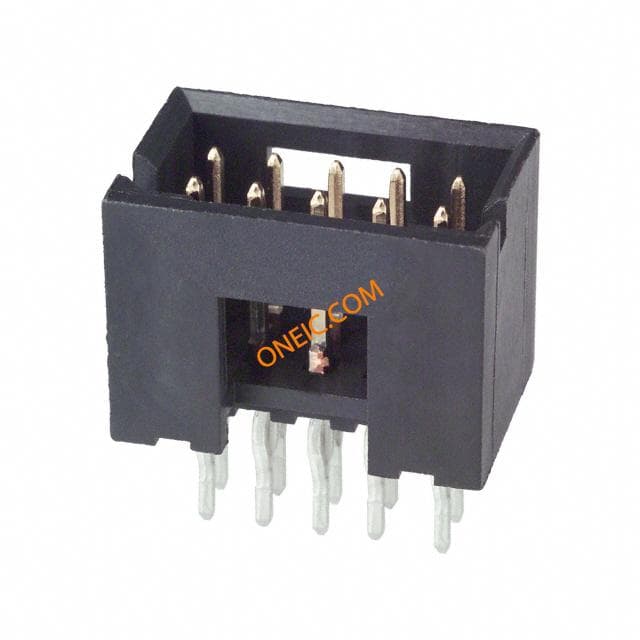

5-102699-4
