535598-6

制造商	TE Connectivity Ltd.
描述	Conn Socket Strip SKT 10 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Receptacles CONN RCPT 10POS .100 DUAL T/H AU Headers & Wire Housings 10 MODIV VRT DR CE RCPT ASSY 10 MODIV VRT DR CE RCPT ASSY 10 MODIV VRT DR CE RCPT ASSY Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal,
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	标准包装规格	45
产品类别	Headers & Wire Housings	标准包装数量	Rail / Tube
工厂包装数量	45

合规参数

RoHS	Contains lead / RoHS non-compliant	MIL-C-55032	否
标准编号	CSA LR7189, UL E28476	材料阻燃等级	UL 94V-0

电气参数

接触电阻	12	输入电阻	5000
钳位电压	750	额定交流电压	333
最大额定电流	2 A

机械参数

颜色	Black	间距	2.54 mm
高度	5.03 mm [ .198 in ]	包装方式	Tube
壳体颜色	黑色	排间距	0.100" (2.54mm)
端接方式	Solder	触头类型	Female Socket
安装类型	Through Hole	连接器类型	Receptacle
接触镀层	Gold Over Nickel	安装样式	低
排数	2	压力（PSI）	标准
端子样式	短点	连接器用途	闭合入口, 顶部
插入件材料	磷青铜	触头材料	Phosphor Bronze
壳体材料	Polycyclohexylenedimethylene Terephthalate (PCT)	包装数量	45
面板安装类型	通孔 - 焊接	端接样式	Through Hole
触点数	10	接触件尾部长度	3.18
位数	10	衬套/护套类型	不带
兼容外壳尺寸（如TM-700等）	与接头配合	端子柱长度	3.18 mm [ .125 in ]
接触镀层厚度	10µin (0.25µm)

产品信息

备注	TE 建议使用接合金或带双层电镀母端配件的双层电镀公端。, 为了获得最小接合柱长度，在最大触点尺寸上增加 .51 [.020]（不包含斜面上的柱引线）。	类型	Socket Strip
连接器性别	SKT	系列	AMPMODU MOD IV
可密封	否	可堆叠	是
产品子类型	Receptacles / Sockets - PCB	装配配置	板支座
加载位置数	All

环境参数

测试温度	否	工作温度	- 65 C to + 105 C
封装热阻	1.57 mm [ .062 in ]

相关型号

146145-5

te connectivity / amp

Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKAWY 10POS DL .100 Headers & Wire Housings 10 MODII HDR DRST B/A W/HD Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Search Keywords:board to board, AMPMODU, pcb connectors, 10 MODII HDR DRST B/A W/HD

¥2.0536

详情

暂无图片

3-146220-2

TE Connectivity / AMP

Headers & Wire Housings OBSOLETE CONN HDR BRKWAY 9/10POS DUAL

详情

103168-3

te connectivity / amp

Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 10POS 30AU TE Connectivity AMPMODU Series 2.54mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings SHROUDED VER DUAL 10 detent windows Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 10Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, MODUTHRUDRHDRSHRD,10MODIIHDRDRSTSHRD.100CL TE Connectivity AMPMODU Mod II 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 3A , 通孔 10 MODII HDR DRST SHRD .100CL

¥7.8880

详情

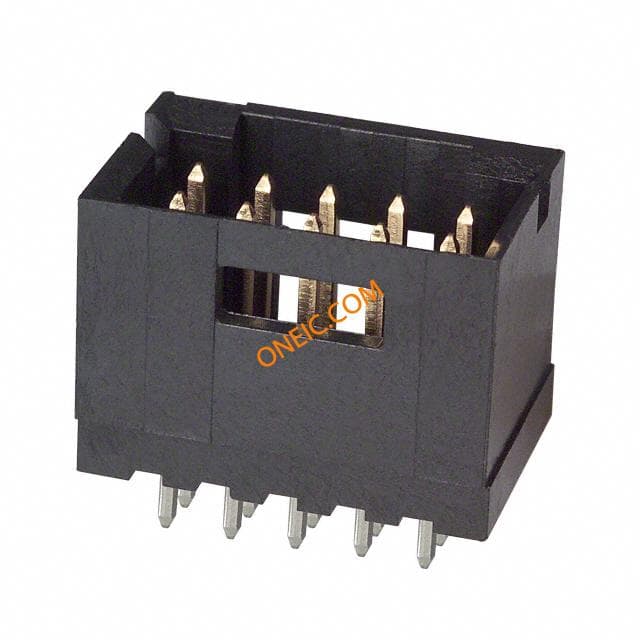

104352-5

te connectivity / amp

Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 10POS DUAL TIN Headers & Wire Housings 10 MODII HDR DRST B/ 6400 10 MODII HDR DRST B/A W/HD 10 MODII HDR DRST B/A W/HD Search Keywords:board to board, AMPMODU, pcb connectors,

¥1.6320

详情

5-102617-3

te connectivity / amp

Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole CONN HEADER R/A .100 10POS 15AU Headers & Wire Housings HDR 2X05P R/A T/H Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 10Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, RIGHT ANGLE, 2ROW, 10WAY 10 MODII HDR DRRA SHRD LF

¥5.7800

详情

104351-5

te connectivity / amp

Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tube .100 inch AMPMODU Headers CONN HDR BRKWAY 10POS DUAL 15AU Headers & Wire Housings MOD II HEADER 10P 640 10 MODII HDR DRST B/A W/HD

¥2.7064

详情

5-146256-5

te connectivity / amp

Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER B/A 10POS DUAL GOLD TE Connectivity AMPMODU Series 2.54mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings VT 2X05P .1 230/110 15AU Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = DualNumber of Positions = 10Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, BOARD-BOARD CONN, HEADER, 10WAY, 2ROW Header;Breakaway;0.100x0.100in.;PCBoard;Dual;10;0.025in.;0.12in. TE Connectivity AMPMODU Mod II 系列 2.54mm节距 10路 (2排) 直引脚管座, 焊接端接, 3A , 通孔 10 MODII HDR DRST B/A .100CL L

¥2.6384

详情

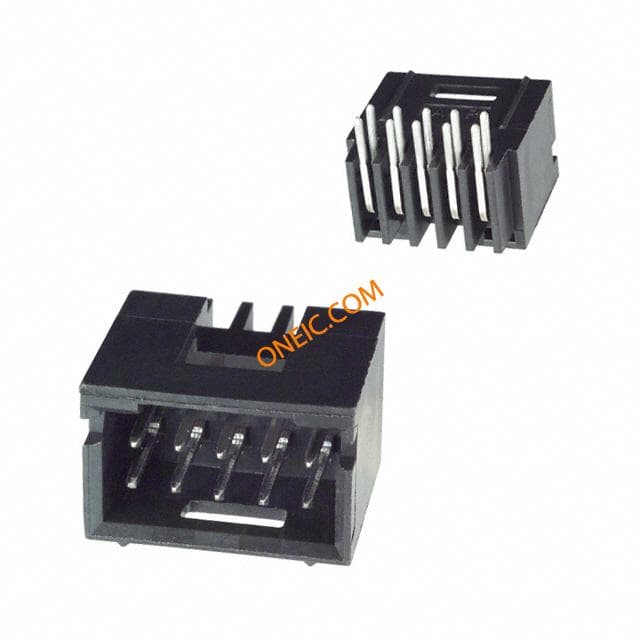

5-87579-2
