3-146220-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Headers & Wire Housings OBSOLETE CONN HDR BRKWAY 9/10POS DUAL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 160 | 工厂包装数量 | 160 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | ||
机械参数
| 间距 | 0.100" (2.54mm) | 包装方式 | Tray |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Unshrouded, Breakaway | 接触镀层 | Gold |
| 排数 | 2 | 位数 | 10 |
| 接触长度 - 配合 | 0.230" (5.84mm) | 接触镀层厚度 | 5µin (0.127µm) |
产品信息
| 系列 | AMPMODU MOD II | 产品子类型 | Headers - Breakaway |
| 加载位置数 | 9 | ||
环境参数
| 机械寿命 | Obsolete | ||
文档与媒体
相关型号
147102-5
te connectivity / amp
Conn Socket Strip SKT 10 POS 2.54mm Solder ST SMD Gang of Tubes .100 inch AMPMODU Receptacles CONN RCPT 10POS DUAL RECPT .1 Headers & Wire Housings 10 MODIV VRT DR 100/ 1600 Conn Socket Strip SKT 10 POS 2.54mm Solder ST SMD Gang of Tubes Product Highlights:ReceptacleMod IVNumber of Positions = 10Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 10 Position Dual Row MOD IV 2.54 mm Pitch Vertical Receptacle
534267-3
te connectivity / amp
Conn Socket Strip RCP 10 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RCPT 10POS .100 DAUL T/H AU Headers & Wire Housings VERT DBL 10P 2250 10 MODIV VRT DR OE 100/125 10 MODIV VRT DR OE 100/125 Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal,

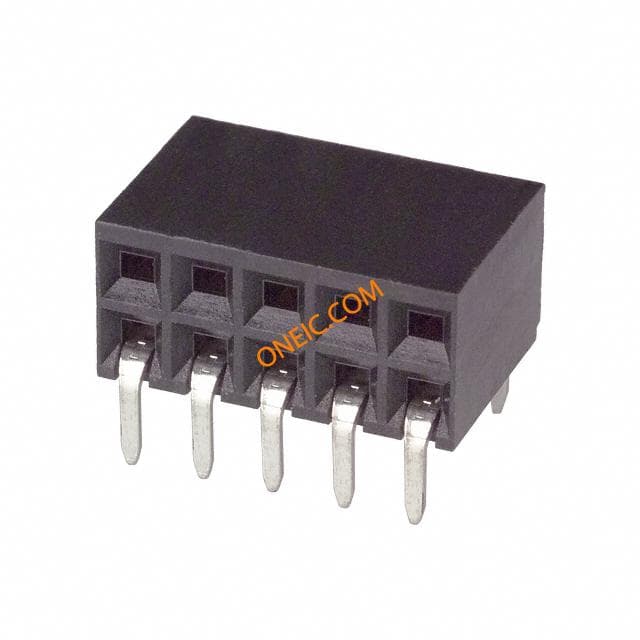

6-535512-4
