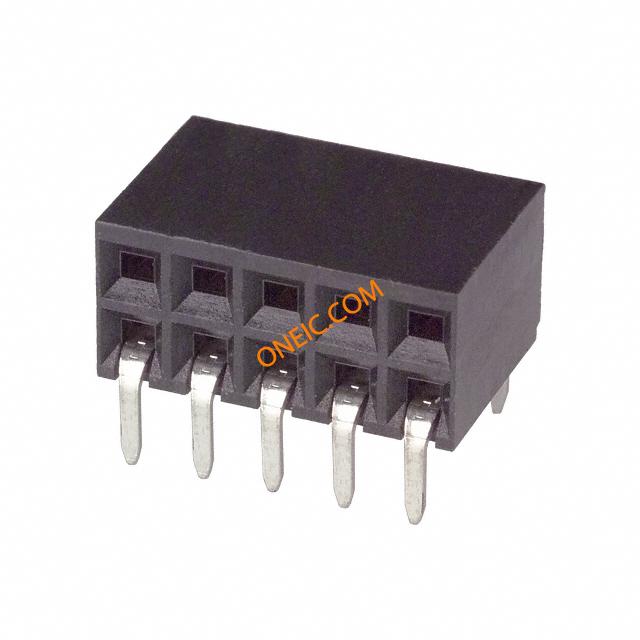

6-535512-4

制造商	TE Connectivity Ltd.
描述	Conn Socket Strip SKT 10 POS 2.54mm Solder RA Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 10POS .100 RT/A DUAL Headers & Wire Housings 10P MODIV R/A PCB 1800 Conn Socket Strip SKT 10 POS 2.54mm Solder RA Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IINumber of Positions = 10Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 10 MODII HORZ DR CE EESS .100
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Rail / Tube	工厂包装数量	45

合规参数

RoHS	Contains lead / RoHS non-compliant	MIL-C-55032	否
标准编号	CSA LR7189, UL E28476	材料阻燃等级	UL 94V-0

电气参数

接触电阻	12 mohm	输入电阻	5000
钳位电压	750	额定交流电压	333
最大额定电流	2 A

机械参数

颜色	Black	深度	8.13 mm
间距	2.54 mm	高度	6.05 mm
包装方式	Tube	排间距	0.100" (2.54mm)
端接方式	Solder	触头类型	Female Socket
外壳颜色	Black	安装类型	Through Hole, Right Angle
连接器类型	Receptacle	接触镀层	Gold Over Nickel
安装样式	Through Hole	排数	2
压力（PSI）	标准, 高	端子样式	短点
连接器用途	侧, 闭合入口	插入件材料	磷青铜
触头材料	Phosphor Bronze	壳体材料	Polycyclohexylenedimethylene Terephthalate (PCT)
总长度	12.7 mm	包装数量	45
面板安装类型	通孔 - 焊接	连接器间距	.31
端接样式	Through Hole	触点数	10
接触件尾部长度	2.92	位数	10
衬套/护套类型	不带	兼容外壳尺寸（如TM-700等）	与接头配合
端子柱长度	3 mm [ .1 in ]	接触镀层厚度	30µin (0.76µm)

产品信息

备注	TE 建议使用接合金或带双层电镀母端配件的双层电镀公端。, 停止使用最小为 6.50 [.256] 的正极插针，以防止行与行之间发生短路。	类型	Socket Strip
连接器性别	SKT	系列	AMPMODU MOD II
可密封	否	可堆叠	是
产品子类型	Receptacles / Sockets - PCB	装配配置	板支座
加载位置数	All

环境参数

测试温度	是	工作温度	- 55 C to + 125 C
封装热阻	1.4 – 2.4 mm [ .055 – .094 in ]
