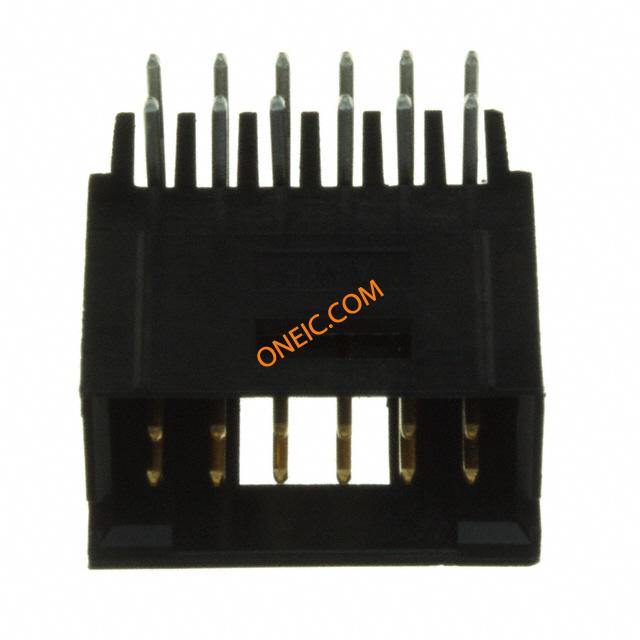

5-102617-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 12POS 15AU Headers & Wire Housings 100X100 HDR 2X06P R/A T/H SHRD Conn Shrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 12Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, RIGHT ANGLE, 2ROW, 12WAY 12 MODII HDR DRRA SHRD LF |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Trays | 工厂包装数量 | 272 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 量程（°/s） | :TE - AMPMODU Mod II Series | 额定电压 | :300V |
| 开关功能 | Detent Windows | 工作电压 | :300V |
| 最大额定电流 | 3 A | 绝缘电阻 | 5000 MOhms |
机械参数
| 颜色 | Black | 深度 | 16.23 mm |
| 间距 | 2.54 mm | 高度 | 10.49 mm |
| 重量 | 0.002 | 包装方式 | Tray |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚间距 | :2.54mm |
| 外壳颜色 | Black | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Detent Lock | 安装样式 | Through Hole |
| 排数 | 2 | 封装形式 | :Black Thermoplastic UL94V-0 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 总长度 | 18.08 mm | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 触点数 | 12 |
| 接触件端接 | :Through Hole Right Angle | 位数 | 12 |
| 柱体长度（配合） | 8.08 mm | 接触长度 - 配合 | 0.318" (8.08mm) |
| 端子柱长度 | 3.43 mm | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | AMPMODU MOD II | 产品子类型 | Headers |
| 加载位置数 | All | ||
环境参数
| 工作温度 | - 55 C to + 105 C | ||
文档与媒体
相关型号
5-534206-6
te connectivity / amp
