点击放大查看

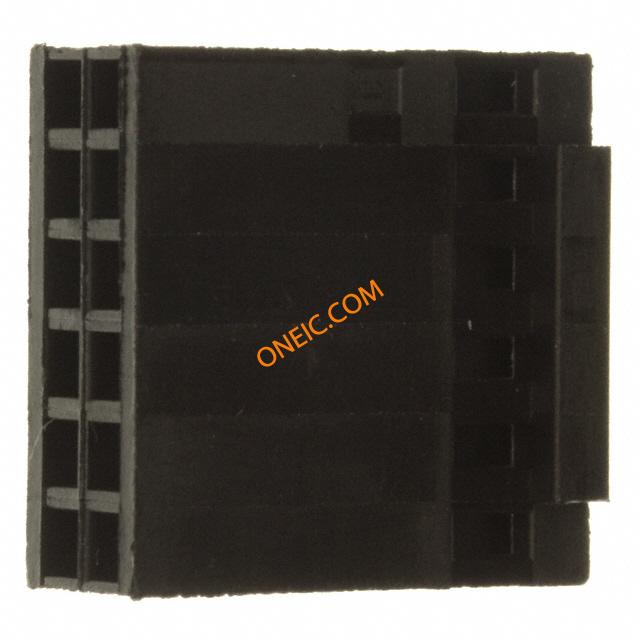

87977-4

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 12POS .100 POL DUAL Headers & Wire Housings 12 MODIV HSG DR MRKD Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 12Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 12 MODIV HSG DR MRKD .100 POL
分类	集成电路通用IC存储器控制器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	250

合规参数

RoHS	Lead free / RoHS Compliant	标准编号	CSA LR7189, UL E28476
材料阻燃等级	UL 94V-0

电气参数

额定电压	250 VAC	开关功能	Detent Latching
供电电压	250 VAC	接触电阻	12 mΩ
输入电阻	5000	连接器阻抗	压接
最大额定电流	3 A	最小供电电压	250VAC
保护额定电压（VPR）	750 V

机械参数

颜色	Black	深度	15.24 mm
间距	0.100" (2.54mm)	高度	6.096 mm [ .24 in ]
长度	15.4 mm [ .61 in ]	锁定类型	带有
包装方式	Bulk	壳体颜色	黑色
导线线规	20-30	排间距	0.100" (2.54mm)
触头类型	Female Socket	外壳颜色	Black
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
紧固类型	Locking Ramp	排数	2
插入件材料	铍铜	壳体材料	Nylon
总长度	15.24 mm	包装数量	250
端接样式	Through Hole	第一触头极性	Socket (Female)
触点数	12	接触件端接	Crimp
位数	12	安装孔直径	带有
静电放电屏蔽	不带

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU MOD IV
产品子类型	Receptacles / Sockets - Housings	其他规格	是

环境参数

工作温度

- 65 C to + 105 C

文档与媒体

在线文档

87977-4?RQPN=87977-4
