102617-4

点击放大查看

102617-4

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole AMPMODU Shrouded Headers CONN HEADER R/A .100 12POS 15AU Headers & Wire Housings SHROUDED RA DUAL 12 detent windows 12 MODII HDR DRRA SHRD .100CL
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU其他名称A26766
产品类别Headers & Wire Housings标准包装数量Trays
工厂包装数量272

合规参数

RoHSLead free / RoHS Compliant标准编号CSA LR7189, UL E28476
材料阻燃等级UL 94 V-0

电气参数

开关功能Detent Windows连接器阻抗制动器窗口
击穿电压750.0最大额定电流3
绝缘电阻5000.0保护额定电压（VPR）750 Vrms

机械参数

颜色Black间距2.54 mm
底座类型不带锁定类型带有
包装方式Tray壳体颜色黑色
端部尺寸（如SMD/SMT、14mm等）1.68引脚样式正方形
稳定器不带排间距0.100" (2.54mm)
端接方式Solder触头类型Male Pin
第一连接器否第二连接器With
触点形状Square安装类型Without
连接器类型Shrouded接触镀层Gold Over Nickel
紧固类型Detent Lock安装样式标准
排数2封装形式4-Sided
外壳材料（壳体）4- 面插入件材料磷青铜
锁定特性Detent Windows外形（宽 x 高）Standard
触头材料Phosphor Bronze壳体材料Thermoplastic - GF
安装特性Without包装数量272
面板安装类型Without主要材料Phosphor Bronze
尺寸/外形0.64 [.025]端接样式Through Hole
第一连接器类型带罩第一触头极性Pin (Male)
外径.64 mm [ .025 in ]触点数12
端接表面处理带有位数12
排距 - 配合2.54中心触点表面处理2.54
柱体长度（配合）8.08安装孔直径带有
接触长度 - 配合0.318" (8.08mm)表面贴装焊盘尺寸No
端子柱长度3.43接触镀层厚度15µin (0.38µm)
安装面板厚度Without触点材料 - 配合Gold (15)
静电放电屏蔽不带外壳尺寸，连接器布局1.68 mm [ .066 in ]
第一连接器安装特征否

产品信息

类型Shrouded Header连接器性别HDR
系列AMPMODU MOD II钥匙类型否
产品子类型Connector选择性装载No
加载位置数All

环境参数

密封等级不带防护等级带罩
工作温度- 55 C to + 105 C封装热阻1.397 mm [ .055 in ]
结工作温度否

相关型号

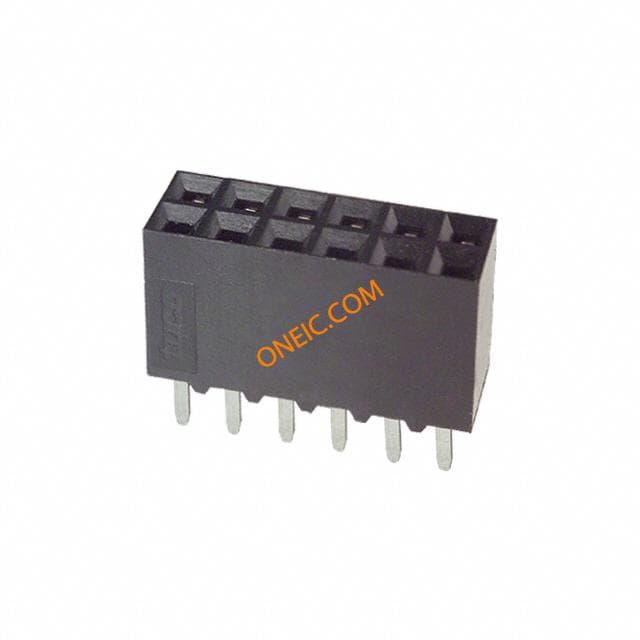

5-534206-6

5-534206-6

te connectivity / amp

Conn Socket Strip SKT 12 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 12POS .100 VERT DUAL Headers & Wire Housings REC 2X06P VRT T/H VERT DUAL Conn Socket Strip SKT 12 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IINumber of Positions = 12Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 12 MODII VRT DR CE 100/115

¥6.1200
详情
87922-2

87922-2

te connectivity / amp

Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSNG 12POS .100 POL W/STR Headers & Wire Housings MODIV HSG W/STR RLF Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 12Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 12POS, 2.54MM 12 MODIV HSG W/STR RLF DR MRKD

¥11.2880
详情
535598-7

535598-7

te connectivity / amp

Conn Socket Strip SKT 12 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Receptacles CONN RCPT 12POS .100 DUAL T/H AU 12 MODIV VRT DR CE RCPT ASSY

详情
3-87977-1

3-87977-1

te connectivity / amp

Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 12POS .100 POL DUAL Headers & Wire Housings 12 HSG COMP DR .1POL Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 12Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 12 MODIV HSG COMP DR .100 POL

¥6.0520
详情
5-102694-4

5-102694-4

te connectivity / amp

Conn IDC Connector RCP 12 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 12POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 12P 26-22 Conn IDC Connector RCP 12 POS 2.54mm IDT ST Cable Mount Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 12 ampmodu mt assy dr sn

¥14.4840
详情
535585-2

535585-2

te connectivity / amp

Conn Socket Strip SKT 12 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RCPT 12POS DUAL VERT .100 12 MODIV VRT DR CE RCPT ASSY 12 MODIV VRT DR CE RCPT ASSY Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal,

¥4.0800
详情
87631-7

87631-7

te connectivity / amp

Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 12POS .100 POL DUAL Headers & Wire Housings RECEPTACLE 12P DUAL Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 12Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RECEPTACLE,AMPMODU,MODIV,12POSITION,.100IN,DUALROW,LATCHED 12 MODIV HSG COMP DR .100 POL

¥3.4680
详情
87631-8

87631-8

te connectivity / amp

Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 12POS .100 POL DUAL 2.54mm,housing,12W,Mod IV,DR,snap in Headers & Wire Housings POLARIZED HSG 12 DBL detent latching Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 12Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 2 ROW, 2X6WAY Housing,Connector;Crimp-Snap;Dual;12;250VAC;3A;750V Crimp housing Pitch2.54 mm Poles 12 Contact DesignStamped Double row / straight / without polarization AMPMODU MOD IV, 87631-8, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 12 路 直 母 电缆安装 PCB 壳体 12 MODIV HSG DR MKRD .100 POL

¥3.8080
详情

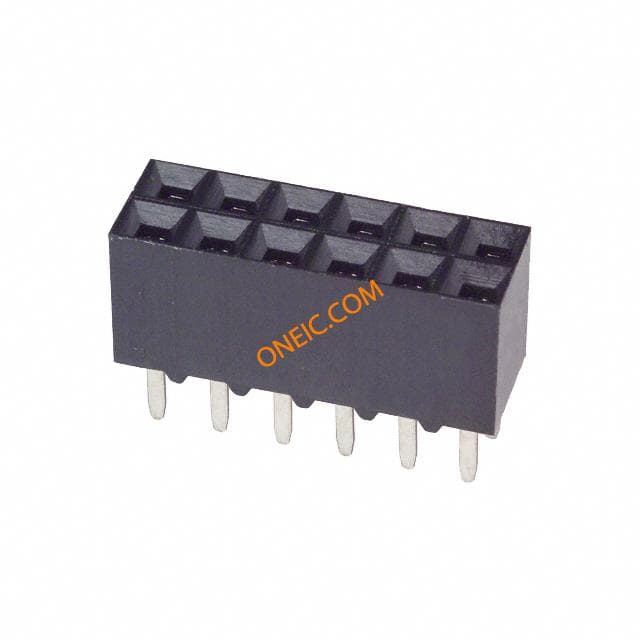

5-534998-6
