点击放大查看

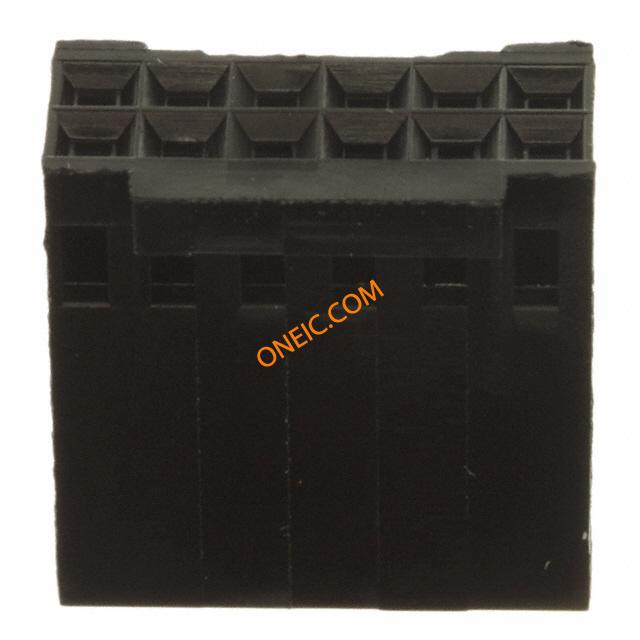

87631-7

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 12POS .100 POL DUAL Headers & Wire Housings RECEPTACLE 12P DUAL Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 12Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RECEPTACLE,AMPMODU,MODIV,12POSITION,.100IN,DUALROW,LATCHED 12 MODIV HSG COMP DR .100 POL
分类	连接器解决方案矩形连接器高可靠性矩形连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	标准编号	CSA LR7189, UL E28476
材料阻燃等级	UL 94V-0

电气参数

额定电压	250 V	开关功能	Detent Latching
供电电压	250 VAC	接触电阻	12 mΩ
输入电阻	5000	连接器阻抗	压接
最大额定电流	3 A	保护额定电压（VPR）	750 V

机械参数

颜色	Black	间距	2.54 mm
高度	6.1 mm [ .24 in ]	长度	15.24 mm [ .6 in ]
锁定类型	带有	包装方式	Bulk
壳体颜色	黑色	导线线规	20-30 AWG
排间距	0.100" (2.54mm)	触头类型	Female Socket
安装类型	Straight	连接器类型	Receptacle
紧固类型	Locking Ramp	排数	2
插入件材料	铍铜	触头材料	Phosphor Bronze
壳体材料	Nylon	包装数量	1
主要材料	InterconnectSystem	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	12
接触件端接	Crimp	位数	12
兼容外壳尺寸（如TM-700等）	公端	安装孔直径	带有
静电放电屏蔽	不带

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU MOD IV
制造商全称	AMPMODU/MODIVSeries	产品子类型	Receptacles / Sockets - Housings
抽头/步进数	1	其他规格	否
应用细节	Board to Board

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

- 65 C to + 105 C

文档与媒体

在线文档

TE.Connect?PN=87631-7&M=BYPN&C=1&LG=1&I=13

在线文档

87631-7?RQPN=87631-7

相关型号

102618-4

te connectivity / amp

Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 12POS 15AU TE Connectivity 2.54mm Pitch 12 Way 2 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings SHROUDED VER DUAL 12 detent windows Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 12Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, Headervert12way2row2.54mmAmpModu TE Connectivity AMPMODU Mod II 系列 2.54mm节距 12路 (2排) 直 PCB 针座, 焊接端接, 3A , 通孔 12 MODII HDR DRST SHRD .100CL

¥7.1400

详情

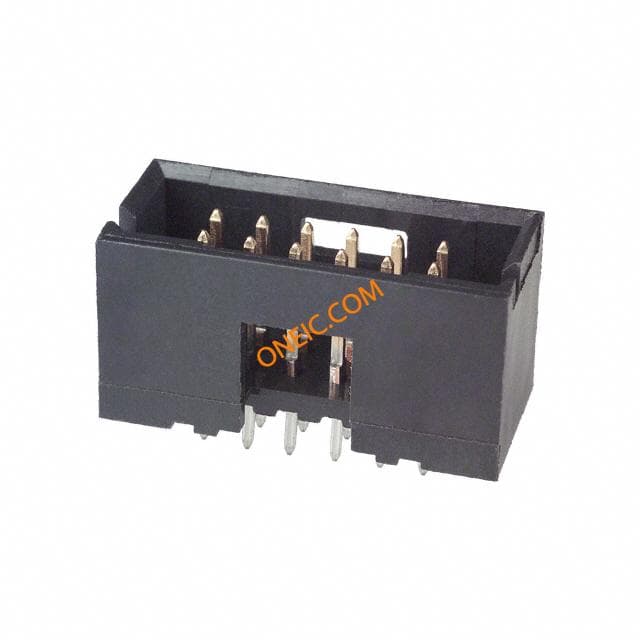

5-102619-4

te connectivity / amp

Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 12POS 15AU Headers & Wire Housings 12P HDR DRST SHRD 12 MODII HDR DRST SHRD .100CL 12 MODII HDR DRST SHRD .100CL Search Keywords:board to board, AMPMODU, pcb connectors,

¥9.3745

详情

826634-6

te connectivity / amp

Conn Unshrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWY 12POS R/A GOLD TE Connectivity AMPMODU Series 2.54mm Pitch 12 Way 2 Row Right Angle PCB Header, Solder Termination, 3A Conn Unshrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = DualNumber of Positions = 12Mating Post Length = 6.70 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 2X6R/APINHEADERGOLD TE Connectivity AMPMODU Mod II 系列 2.54mm节距 12路 (2排) 直角引脚管座, 焊接端接, 3A , 通孔 MODU HEADER

¥5.2700

详情

146308-6

te connectivity / amp

Conn Unshrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWAY 12POS DL R/A Headers & Wire Housings 12 MODII HDR DRRA B/A .100 12 MODII HDR DRRA B/A .100 12 MODII HDR DRRA B/A .100 Search Keywords:board to board, AMPMODU, pcb connectors,

¥4.1480

详情

103165-2

te connectivity / amp

Conn Shrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER 12POS DUAL R/A GOLD

详情

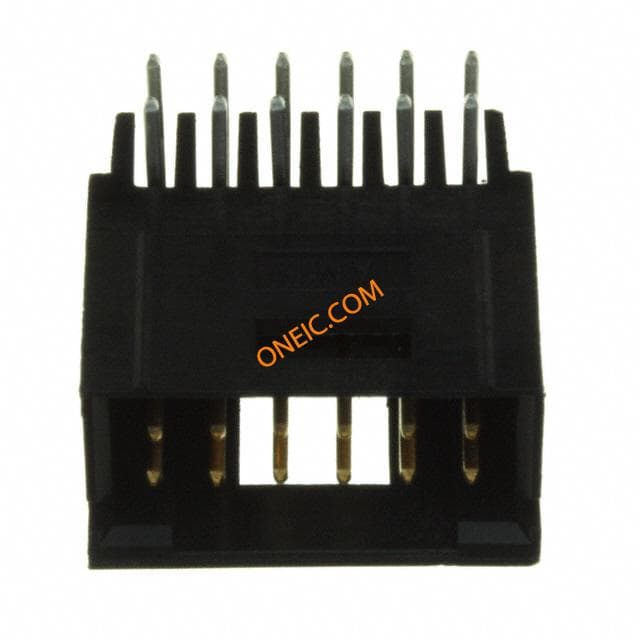

5-102617-4

te connectivity / amp

Conn Shrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 12POS 15AU Headers & Wire Housings 100X100 HDR 2X06P R/A T/H SHRD Conn Shrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 12Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, RIGHT ANGLE, 2ROW, 12WAY 12 MODII HDR DRRA SHRD LF

¥6.6640

详情

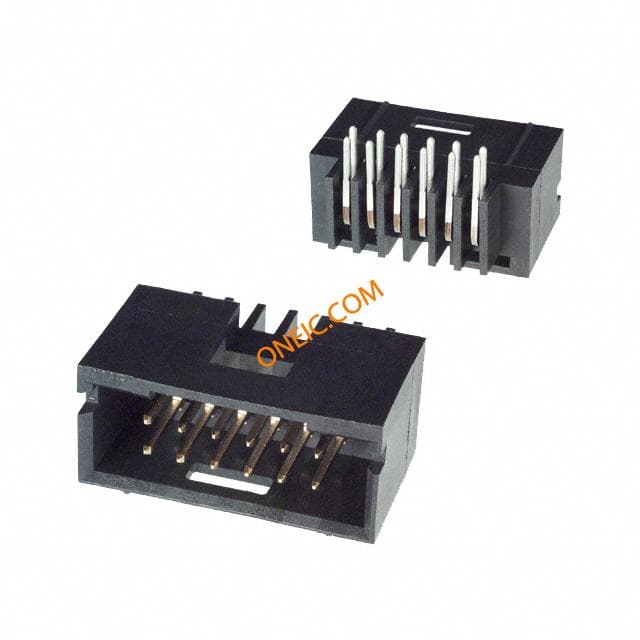

5-102570-4

te connectivity / amp

Conn Shrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 12POS 15AU Headers & Wire Housings HDR RA .100 12P 15AU 12 MODII HDR DRRA SHRD LF 12 MODII HDR DRRA SHRD LF Search Keywords:board to board, AMPMODU, pcb connectors,

¥6.6640

详情

102570-4

te connectivity / amp

Conn Shrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 12POS 15AU Headers & Wire Housings ACTION PIN R.A. 12P dual .150 end Conn Shrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 12Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 12 MODII HDR DRRA SHRD .100CL

¥6.6300

详情

104352-6

te connectivity / amp

Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 12POS DUAL TIN

详情

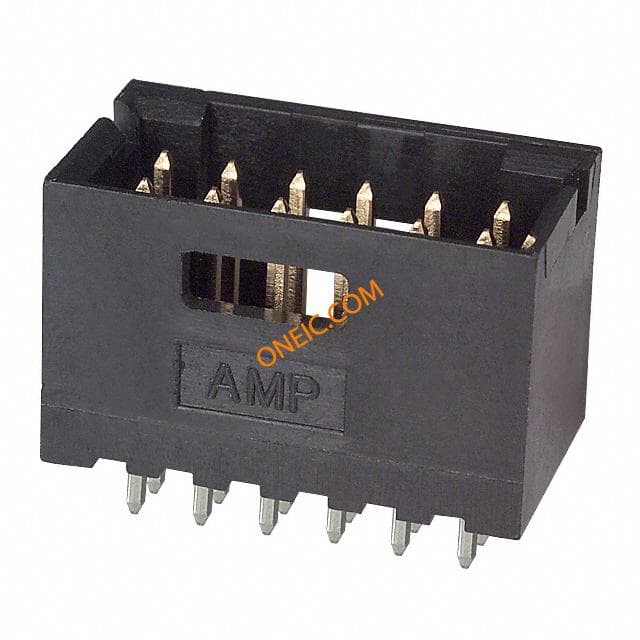

5-103168-4

te connectivity / amp

Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 12POS 30AU Headers & Wire Housings SHROUDED VER DUAL 12 detent windows Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = PinHeader Type = Shrouded12 PositionsSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, VERTICAL, 2ROW, 12WAY MODUTHRUDRHDRSHRD,12MODIIHDRDRSTSHRD.100CL 12 MODII HDR DRST SHRD .100CL

¥9.0600

详情

5-103169-4

te connectivity / amp

Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Headers CONN HEADER VERT .100 12POS 30AU Headers & Wire Housings ACTION PIN VERT 12P dual .150 end .100 inch AMPMODU Headers Product Highlights:ConnectorWith ContactsHousing Gender = Header - PinContact Gender = PinHeader Type = ShroudedSearch Keywords:board to board, AMPMODU, pcb connectors, 12 MODII HDR DRST SHRD .100CL

¥8.0240

详情

5-102618-4

te connectivity / amp

Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 12POS 15AU TE Connectivity AMPMODU Series 2.54mm Pitch 12 Way 2 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings SHROUDED VER DUAL 12 detent windows Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 12Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, VERTICAL, 2ROW, 12WAY MODUTHRUDRHDRSHRD,12MODIIHDRDRSTSHRD.100CL TE Connectivity AMPMODU Mod II 系列 12路 2.54mm节距 (2排) 直 PCB 针座 , 焊接端接, 3A, 通孔 12 MODII HDR DRST SHRD .100CL

¥9.0600

详情

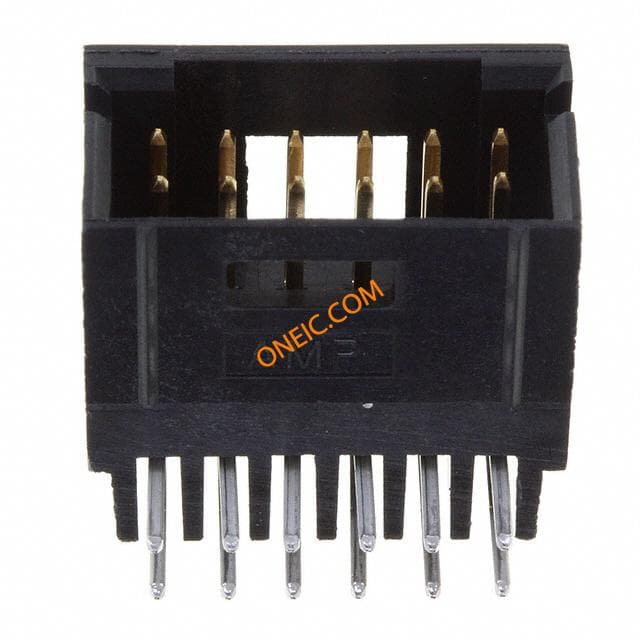

102617-4

te connectivity / amp

Conn Shrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole AMPMODU Shrouded Headers CONN HEADER R/A .100 12POS 15AU Headers & Wire Housings SHROUDED RA DUAL 12 detent windows 12 MODII HDR DRRA SHRD .100CL

¥8.6700

详情

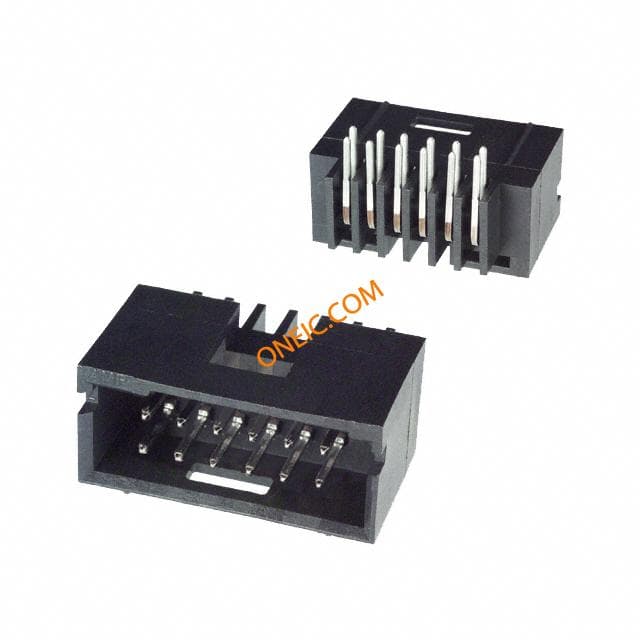

5-87579-3
