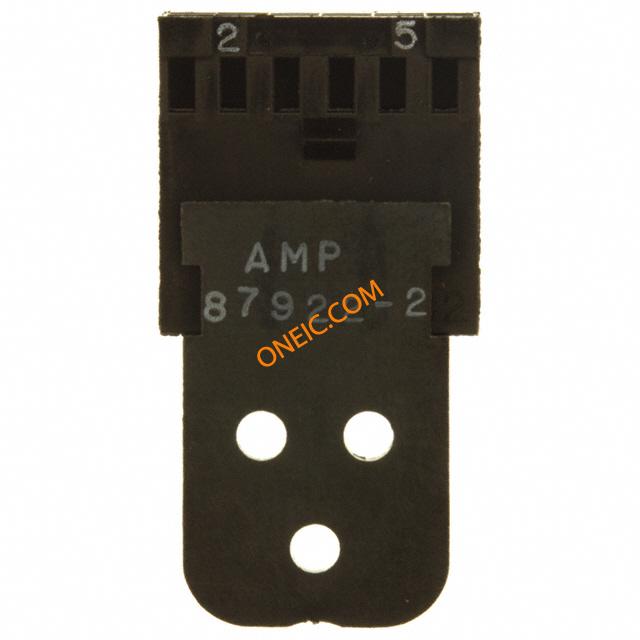

87922-2

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSNG 12POS .100 POL W/STR Headers & Wire Housings MODIV HSG W/STR RLF Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 12Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 12POS, 2.54MM 12 MODIV HSG W/STR RLF DR MRKD
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	100

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

00000000

电气参数

量程（°/s）	:TE - AMPMODU Mod IV Series	额定电压	250 VAC
开关功能	Detent Latching	最大额定电流	3 A
最小供电电压	250VAC

机械参数

颜色	Black	深度	29.21 mm
间距	2.54 mm	高度	7.32 mm
重量	0	包装方式	Bulk
导线线规	20-32 AWG	排间距	0.100" (2.54mm)
触头类型	Male or Female	外壳颜色	Black
安装类型	Straight	连接器类型	Receptacle
接触镀层	:-	紧固类型	Locking Ramp
排数	2	触头材料	:-
壳体材料	Thermoplastic	总长度	15.24 mm
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	12	接触件端接	Crimp
位数	12

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU MOD IV
产品特性	Strain Relief	产品子类型	Connectors
应用细节	Board-to-Board

环境参数

工作温度

- 65 C to + 105 C

文档与媒体

在线文档

87922-2?RQPN=87922-2

相关型号

102618-4

te connectivity / amp

Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 12POS 15AU TE Connectivity 2.54mm Pitch 12 Way 2 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings SHROUDED VER DUAL 12 detent windows Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 12Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, Headervert12way2row2.54mmAmpModu TE Connectivity AMPMODU Mod II 系列 2.54mm节距 12路 (2排) 直 PCB 针座, 焊接端接, 3A , 通孔 12 MODII HDR DRST SHRD .100CL

¥7.1400

详情

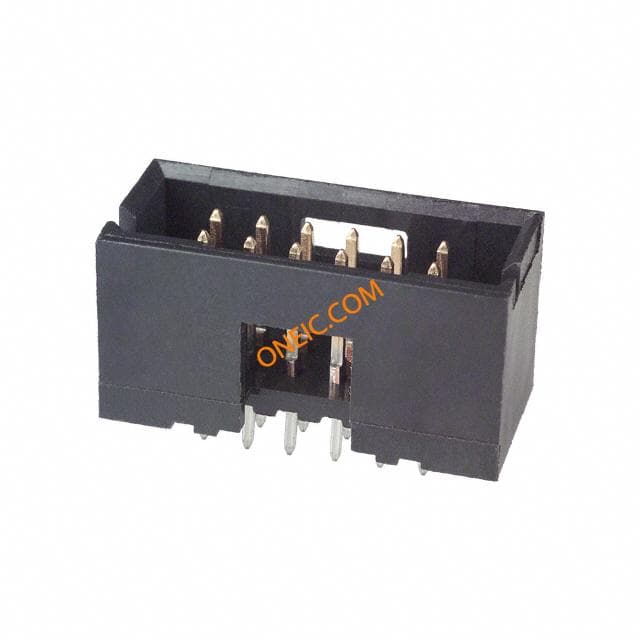

5-102619-4

te connectivity / amp

Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 12POS 15AU Headers & Wire Housings 12P HDR DRST SHRD 12 MODII HDR DRST SHRD .100CL 12 MODII HDR DRST SHRD .100CL Search Keywords:board to board, AMPMODU, pcb connectors,

¥9.3745

详情

826634-6

te connectivity / amp

Conn Unshrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWY 12POS R/A GOLD TE Connectivity AMPMODU Series 2.54mm Pitch 12 Way 2 Row Right Angle PCB Header, Solder Termination, 3A Conn Unshrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = DualNumber of Positions = 12Mating Post Length = 6.70 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 2X6R/APINHEADERGOLD TE Connectivity AMPMODU Mod II 系列 2.54mm节距 12路 (2排) 直角引脚管座, 焊接端接, 3A , 通孔 MODU HEADER

¥5.2700

详情

146308-6

te connectivity / amp

Conn Unshrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWAY 12POS DL R/A Headers & Wire Housings 12 MODII HDR DRRA B/A .100 12 MODII HDR DRRA B/A .100 12 MODII HDR DRRA B/A .100 Search Keywords:board to board, AMPMODU, pcb connectors,

¥4.1480

详情

103165-2

te connectivity / amp

Conn Shrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER 12POS DUAL R/A GOLD

详情

5-102617-4

te connectivity / amp

Conn Shrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 12POS 15AU Headers & Wire Housings 100X100 HDR 2X06P R/A T/H SHRD Conn Shrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 12Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, RIGHT ANGLE, 2ROW, 12WAY 12 MODII HDR DRRA SHRD LF

¥6.6640

详情

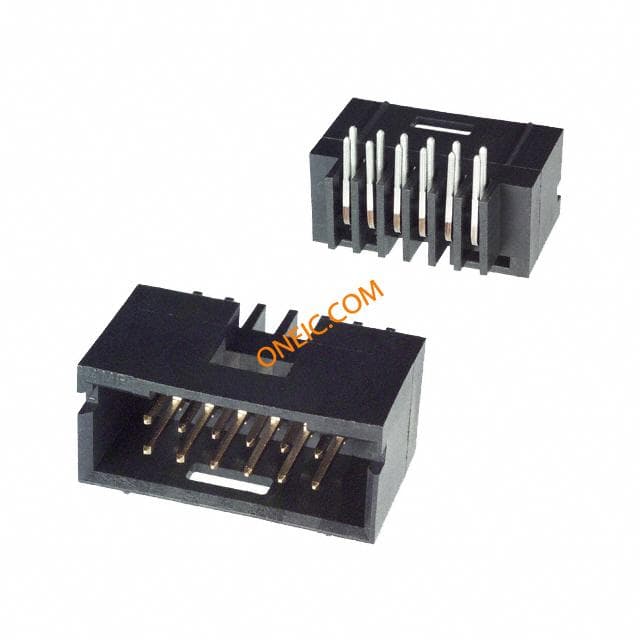

5-102570-4
