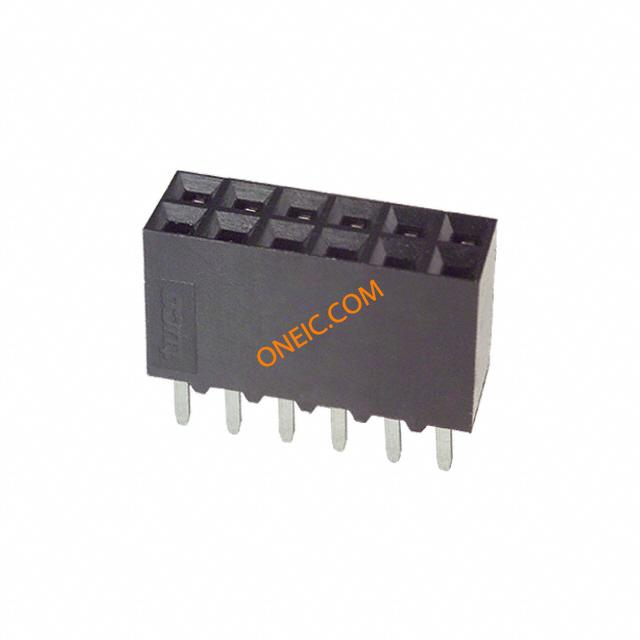

534206-6

制造商	TE Connectivity Ltd.
描述	Conn Socket Strip SKT 12 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 12POS .100 VERT DUAL Headers & Wire Housings REC 2X06P VRT T/H 2220 Conn Socket Strip SKT 12 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IINumber of Positions = 12Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 12 MODII VRT DR CE 100/115
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Rail / Tube	工厂包装数量	37

合规参数

RoHS	Contains lead / RoHS non-compliant	MIL-C-55032	否
标准编号	CSA LR7189, UL E28476	材料阻燃等级	UL 94V-0

电气参数

接触电阻	12	输入电阻	5000
额定交流电压	333	最大额定电流	2 A

机械参数

颜色	Black	间距	2.54 mm
高度	5.03 mm [ .198 in ]	包装方式	Tube
壳体颜色	黑色	引脚样式	正方形
排间距	0.100" (2.54mm)	端接方式	Solder
触头类型	Female Socket	安装类型	Through Hole
连接器类型	Receptacle	接触镀层	Gold Over Nickel
安装样式	标准	排数	2
压力（PSI）	标准	端子样式	短点
连接器用途	闭合入口, 顶部	插入件材料	磷青铜
触头材料	Phosphor Bronze	壳体材料	Polycyclohexylenedimethylene Terephthalate (PCT)
包装数量	37	面板安装类型	通孔 - 焊接
端接样式	Through Hole	触点数	12
接触件尾部长度	2.92	位数	12
衬套/护套类型	不带	兼容外壳尺寸（如TM-700等）	与接头配合
端子柱长度	2.92 mm [ .115 in ]	接触镀层厚度	30µin (0.76µm)

产品信息

备注	TE 建议使用接合金或带双层电镀母端配件的双层电镀公端。, 为了获得最小接合柱长度，在最大触点尺寸上增加 .51 [.020]（不包含斜面上的柱引线）。	类型	Socket Strip
连接器性别	SKT	系列	AMPMODU MOD II
可密封	否	可堆叠	是
产品子类型	Receptacles / Sockets - PCB	装配配置	板支座
加载位置数	All

环境参数

测试温度	否	工作温度	- 65 C to + 105 C
封装热阻	1.57 mm [ .062 in ]
