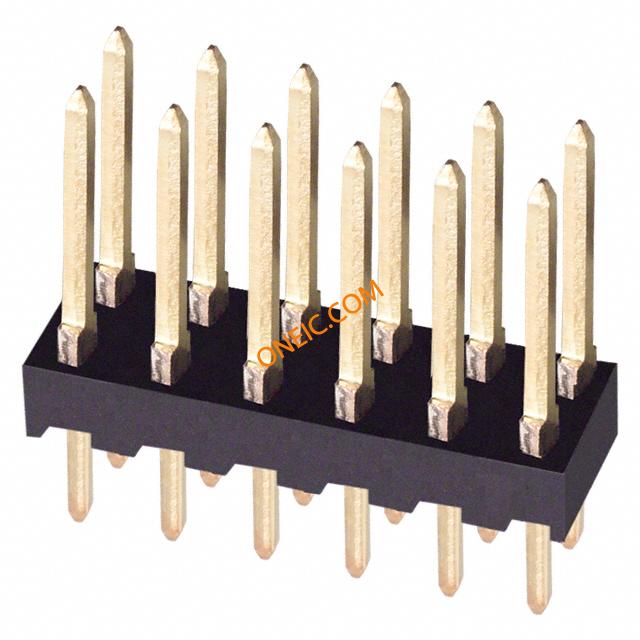

87215-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 12POS 30AU Headers & Wire Housings UNSHRD VERT DUAL 12 Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = StandardNumber of Rows = DualNumber of Positions = 12Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 12 MODII HDR DRST UNSHRD .100 |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 120 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 标准编号 | CSA LR7189, UL E28476 | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 最大额定电流 | 3 A | 绝缘电阻 | 5000 MOhms |
| 保护额定电压（VPR） | 750 Vrms | ||
机械参数
| 颜色 | Black | 深度 | 4.87 mm |
| 间距 | 2.54 mm | 高度 | 10.36 mm |
| 底座类型 | 不带 | 锁定类型 | 不带 |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 引脚样式 | 正方形 | 稳定器 | 不带 |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 第一连接器 | 否 |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Gold Over Nickel |
| 安装样式 | Through Hole | 排数 | 2 |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 总长度 | 14.83 mm |
| 包装数量 | 120 | 面板安装类型 | 通孔 |
| 端接样式 | Through Hole | 第一连接器类型 | 不带罩 |
| 第一触头极性 | Pin (Male) | 外径 | .64 mm [ .025 in ] |
| 触点数 | 12 | 端接表面处理 | 不带 |
| 位数 | 12 | 柱体长度（配合） | 8.08 mm |
| 安装孔直径 | 不带 | 接触长度 - 配合 | 0.318" (8.08mm) |
| 端子柱长度 | 3.18 mm | 接触镀层厚度 | 30µin (0.76µm) |
| 静电放电屏蔽 | 不带 | 第一连接器安装特征 | 否 |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | AMPMODU MOD II | 钥匙类型 | 否 |
| 产品子类型 | Headers | 加载位置数 | All |
环境参数
| 密封等级 | 不带 | 工作温度 | - 65 C to + 105 C |
| 封装热阻 | 1.397 mm [ .055 in ] | 结工作温度 | 否 |
文档与媒体
相关型号
