点击放大查看

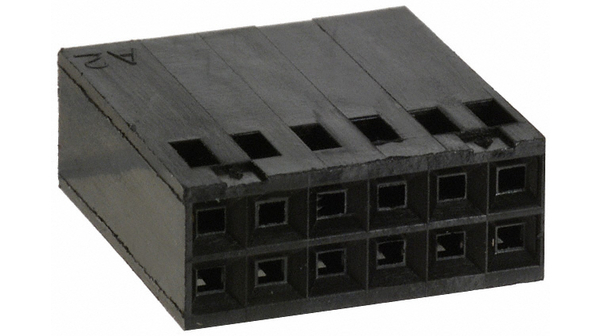

87456-8

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 12POS .100 DUAL 2.54mm,housing,12W,Mod IV,DR,snap in Headers & Wire Housings NON-PLRZD HSG 12 DBL .605 width Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 12Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 2 ROW, 2X6WAY CONNECTOR,HOUSING,RECEPTACLE,MODIV,12POSITION,DUALROW,MARKED Crimp housing Pitch2.54 mm Poles 12 Contact DesignStamped Double row / straight / without polarization AMPMODU MOD IV, 87456-8, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 12 路直母 PCB 壳体 12 MODIV HSG DR MRKD .100CL
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	海关税号	85369010
认证机构	:CSA, UL

电气参数

量程（°/s）	:TE - AMPMODU Mod IV Series	额定电压	250 VAC
最大额定电流	3/Contact A	绝缘电阻	5000 MOhms
最小供电电压	250VAC	连接器类型 - 电压输入	Receptacle

机械参数

颜色	Black	深度	15.24mm
间距	2.54 mm	宽度	6.1mm
高度	6.1 mm	长度	17.78mm
重量	0.002	包装方式	Bulk
排间距	0.100" (2.54mm)	端接方式	:Crimp
触头类型	Female Socket	外壳颜色	Black
安装类型	Straight	连接器类型	Receptacle
接触镀层	:Gold	排数	2
封装形式	:Black Thermoplastic UL94V-0	触头材料	:Beryllium Copper
壳体材料	Nylon	总长度	17.78 mm
主要材料	InterconnectSystem	触点数	12
接触件端接	Crimp	位数	12
第一连接器安装类型	:Socket

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	Mod IV
制造商全称	AMPMODU/MODIVSeries	产品子类型	Wire Housings
应用细节	Wire-to-Board	适用产品/相关产品	Centerline Double-Row Connector

环境参数

工作温度

- 65 C to + 105 C

文档与媒体

在线文档

TE.Connect?M=BYPN&C=1&PN=87456-8&LG=1&I=13

PDF 文档

1650916.pdf

在线文档

87456-8?RQPN=87456-8
