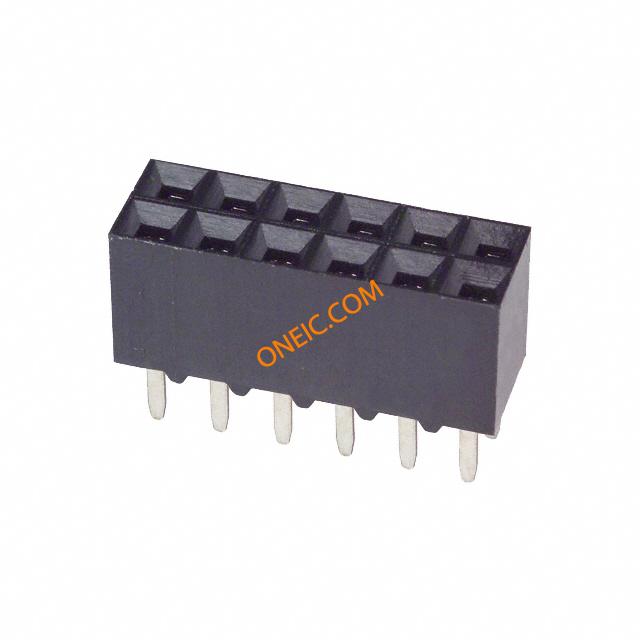

534998-6

制造商	TE Connectivity Ltd.
描述	Conn Socket Strip RCP 12 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 12POS .100 VERT DUAL .100 inch AMPMODU Receptacles Product Highlights:ReceptacleMod IVNumber of Positions = 12Number of Rows = DualLow ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 12 MODIV VRT DR CE 100/125
分类	电阻器与电位器旋转电位器旋转电位器

对参数有疑问？问 AI 助手

商业参数

标准包装规格

标准包装数量

Rail / Tube

合规参数

RoHS	Contains lead / RoHS non-compliant	MIL-C-55032	否
标准编号	CSA LR7189, UL E28476	材料阻燃等级	UL 94V-0

电气参数

接触电阻	12	输入电阻	5000
钳位电压	750	额定交流电压	333
最大额定电流	2

机械参数

颜色	Black	间距	2.54 mm
高度	5.03 mm [ .198 in ]	包装方式	Tube
引脚样式	圆形, 圆形	排间距	0.100" (2.54mm)
端接方式	Solder	触头类型	Female Socket
安装类型	Through Hole	连接器类型	Receptacle, Bottom or Top Entry
接触镀层	Gold Over Nickel	安装样式	低
排数	2	压力（PSI）	标准
端子样式	短点	连接器用途	闭合入口, 顶部
插入件材料	磷青铜	壳体材料	热塑性
包装数量	37	面板安装类型	通孔 - 焊接
端接样式	插座	触点数	12
接触件尾部长度	3.18	位数	12
衬套/护套类型	不带	兼容外壳尺寸（如TM-700等）	与接头配合
端子柱长度	3.77 mm [ .148 in ]	接触镀层厚度	30µin (0.76µm)

产品信息

备注	TE 建议使用接合金或带双层电镀母端配件的双层电镀公端。, 为了获得最小接合柱长度，在最大触点尺寸上增加 .51 [.020]（不包含斜面上的柱引线）。	类型	Socket Strip
连接器性别	RCP	系列	AMPMODU, MOD IV
可密封	否	可堆叠	是
产品子类型	连接器	装配配置	板支座
加载位置数	All

环境参数

测试温度	否	工作温度	-65 – 125
封装热阻	1.57 mm [ .062 in ]
