点击放大查看

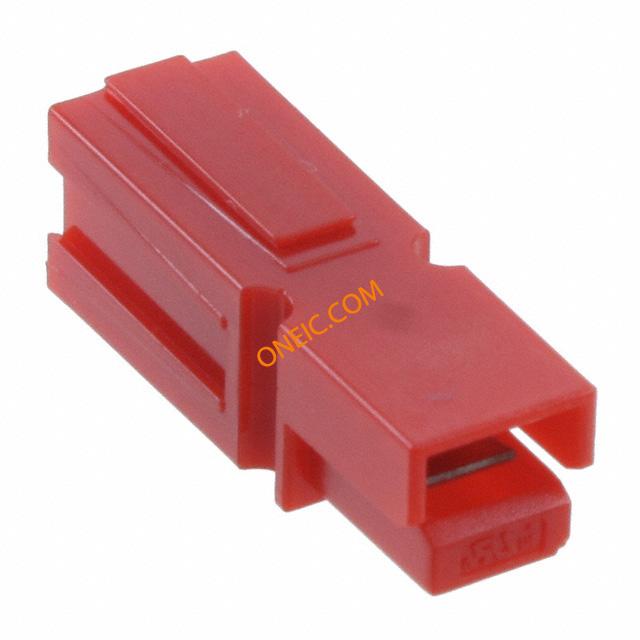

1445957-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 1 POS ST Bulk Power Connectors CONN HOUSING 1POS RED Power to the Board HSG SUB ASY RED Conn Housing RCP 1 POS ST Bulk Product Highlights:Housing15 AMP Series, 30 AMP Series, 45 AMP SeriesConnector Type = Single-Pole Modular ConnectorCurrent = 20 Amps., 30 Amps., 40 Amps.Housing Color = RedSearch Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant PLUG, CONNECTOR, HOUSING, AMP Plug; wire-wire; AMP Power Series 15/30/45; hermaphrodite; PIN:1 HSG SUB ASY,RED |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL94V-0 | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 40A |
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 颜色 | Red | 重量 | 0.002 |
| 包装方式 | Bulk | 导线线规 | 10-20 AWG |
| 触头类型 | Non Gendered | 安装类型 | Straight |
| 连接器类型 | Non Gendered | 紧固类型 | Spring Retention |
| 安装样式 | for cable | 排数 | 1 |
| 锁定特性 | lock | 壳体材料 | Polycarbonate (PC) |
| 包装数量 | 150 | 连接器 - 电缆 | plug |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male), Socket (Female) |
| 连接器颜色 | red | 接触件端接 | Crimp |
| 位数 | 1 | 绝缘材料 - 材质 | Polycarbonate (PC) |
| 线规或范围 - AWG | 20-10 | 外壳与棱镜材料 | polycarbonate |
产品信息
| SPG | 150 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | 15 AMP | 产品特性 | Stackable |
| 产品子类型 | Plug Housings | 适配器系列 | AMP Power Series 15/30/45 |
| 单元数量 | 1 | 适用产品/相关产品 | :AMP Power Series 15 Connectors |
