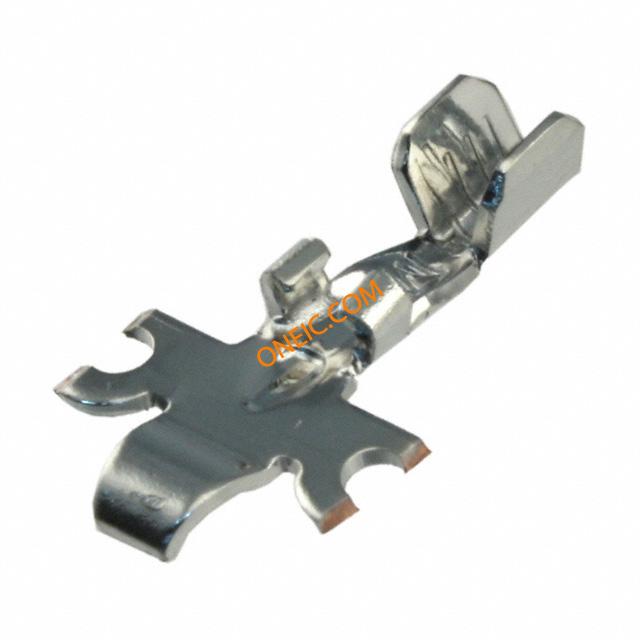

1604113-2

点击放大查看

1604113-2

制造商
TE Connectivity Ltd.
描述Contact PIN Crimp ST Cable Mount Loose Piece Power Connectors CONN TERM NON GENDERED 16-20AWG Power to the Board CONTACT 15A 1604113-2 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:Contact15 AMP SeriesWire Size (AWG/CM) = 16 AWG, 18 AWG, 20 AWGCurrent = 20 Amps.Wire Insulation Diameter, Max. = 11.18 mmSearch Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant CONT,15A PWR PROD,STRIP,TIN
分类
连接器解决方案接触件接触件（通用）
对参数有疑问？问 AI 助手

商业参数

其他名称A100461CT产品类别Power to the Board
标准包装数量Tape & Reel工厂包装数量5000

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
UL档案号E28476标准编号UL
UL阻燃等级UL 94V-0

电气参数

额定电压600 V供电电压600
最大额定电流20 A连接器类型 - 电压输入冷间锻造

机械参数

镀层锡包装方式Tape & Reel (TR)
电缆类型分离式导线导线线规16-20 AWG
触头类型Non Gendered触点形状直式
安装类型开式压线筒释放力带有
电缆直径993 – 2800连接器类型线到线
接触镀层Tin外壳材料（壳体）镍
插入件材料铜合金触头材料Copper
包装数量5000端接样式Crimp
第一触头极性Pin (Male)接触件端接Crimp
接触镀层厚度30 – 150 µm [ .76 – 3.81 µin ]线规或范围 - AWG20-16
护套（绝缘）厚度50 µm [ 1.27 µin ]

产品信息

类型Stamped产品子类型Contacts
应用细节Power

环境参数

工作温度-40 – 105 °C [ -40 – 221 °F ]

文档与媒体

PDF 文档
1650929.pdf
