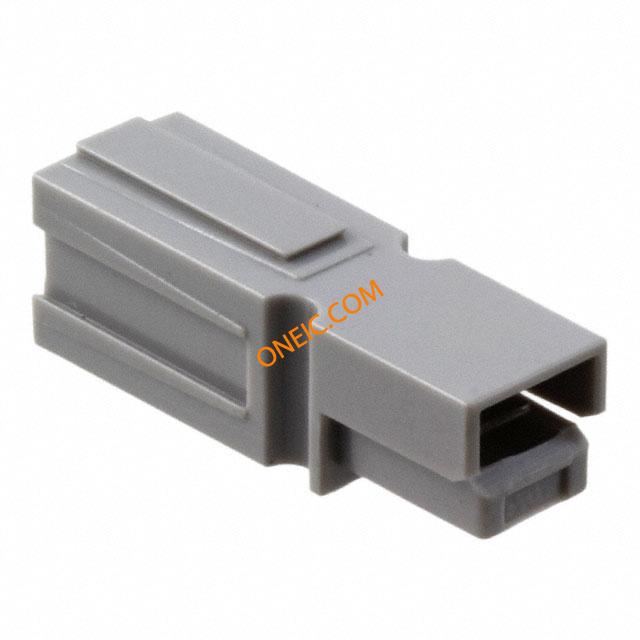

点击放大查看
1445957-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 1 POS ST Bulk Power Connectors CONN HOUSING 1POS GRAY Power to the Board HSG SUB ASY GRAY Power Connectors Product Highlights:Housing15 AMP Series, 30 AMP Series, 45 AMP SeriesConnector Type = Single-Pole Modular ConnectorCurrent = 20 Amps., 30 Amps., 40 Amps.Housing Color = GraySearch Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant HSG SUB ASY,GRAY |
| 分类 |
商业参数
| 标准包装规格 | 1,000 | 产品类别 | Power to the Board |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 标准编号 | UL |
| UL阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 600 | ||
机械参数
| 颜色 | Gray | 宽度 | 7.4 mm [ .291 in ] |
| 高度 | 7.4 mm [ .291 in ] | 长度 | 24.6 mm [ .968 in ] |
| 密封型 | 不密封 | 包装方式 | Bulk |
| 壳体颜色 | 灰色 | 电缆类型 | 分离式导线 |
| 导线线规 | 10-20 AWG | 触头类型 | Non Gendered |
| 安装类型 | Straight | 电缆直径 | 993 – 12066 |
| 连接器类型 | Non Gendered | 接触镀层 | Tin Lead |
| 紧固类型 | Spring Retention | 安装样式 | Wire |
| 排数 | 1 | 壳体材料 | Polycarbonate (PC) |
| 包装数量 | 1000 | 面板安装类型 | 不带 |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 接触件端接 | Crimp | 位数 | 1 |
| 外壳尺寸-插件 | 插头/插座 | 绝缘材料 - 材质 | Polycarbonate (PC) |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | AMP Power |
| 产品特性 | Stackable | 产品子类型 | Plug Housings |
| 应用细节 | Power | ||
