点击放大查看

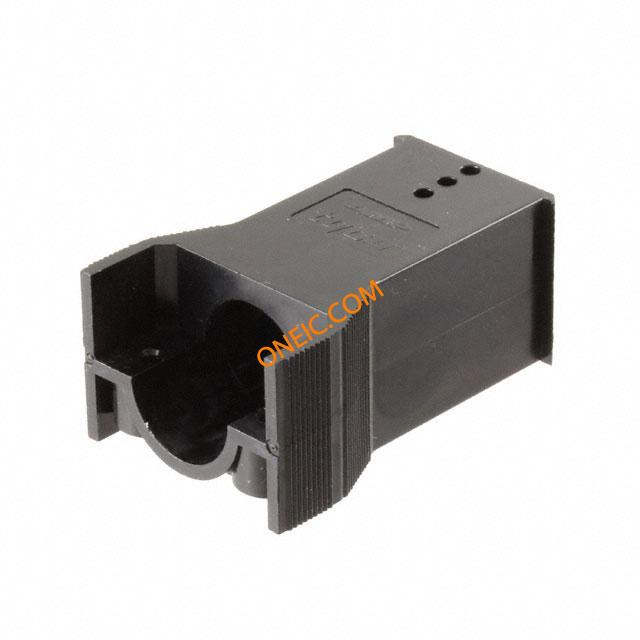

1604080-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 4 POS 19.05mm ST Power Connectors ACCESSORY PLUG FRAME BLACK Power to the Board PLUG FRAME W/OUT LATCH Conn Housing PL 4 POS 19.05mm ST Search Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant HSG,2X2 PWR PROD PLUR W/O LATC |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 最大额定电流 | 20 A, 30 A, 40A | 最小供电电压 | 600VDC/600VAC |
机械参数
| 颜色 | Black | 深度 | 48.9 mm |
| 间距 | 19.05 mm | 宽度 | 30.9 mm [ 1.22 in ] |
| 高度 | 21.85 mm | 长度 | 49.8 mm [ 1.9606 in ] |
| 材料（通用） | Polycarbonate (PC) | 包装方式 | Strip |
| 导线线规 | 12-16 AWG | 安装类型 | Straight |
| 连接器类型 | 线到线 | 安装样式 | Wire |
| 排数 | 1 | 壳体材料 | Polycarbonate (PC) |
| 总长度 | 30.9 mm | 包装数量 | 1 |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 触点数 | 4 | ||
产品信息
| 类型 | Housing | 连接器性别 | PL |
| 系列 | AMP Power | 产品子类型 | Plug Housings |
| 附件类型 | Plug Frame | 适用产品/相关产品 | Power Series 15/30/45 |
相关型号
1445957-4
te connectivity / amp
Conn Housing RCP 1 POS ST Bulk Power Connectors CONN HOUSING 1POS GREEN Power to the Board HSG SUB ASY GREEN Conn Housing RCP 1 POS ST Bulk Product Highlights:Housing15 AMP Series, 30 AMP Series, 45 AMP SeriesConnector Type = 1-Pole Modular ConnectorCurrent = 20 A, 30 A, 40 AHousing Color = GreenSearch Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant HSG SUB ASY,GREEN
1744188-2
te connectivity / amp
HSG ASY,ULTRASON WELD, 15/30/4 Power to the Board HSG ASY ULTRASON WELD 15/30/45 CONN HOUSING 3POS
1445957-2
te connectivity / amp
Conn Housing RCP 1 POS ST Bulk Power Connectors CONN HOUSING 1POS BLACK Power to the Board HSG SUB ASY BLACK Conn Housing RCP 1 POS ST Bulk Product Highlights:Housing15 AMP Series, 30 AMP Series, 45 AMP SeriesConnector Type = Single-Pole Modular ConnectorCurrent = 20 Amps., 30 Amps., 40 Amps.Housing Color = BlackSearch Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant HSGSUBASY,BLACK Plug; wire-wire; AMP Power Series 15/30/45; hermaphrodite; PIN:1 HSG SUB ASY,BLACK
1445957-5
te connectivity / amp
Conn Housing RCP 1 POS ST Bulk Power Connectors CONN HOUSING 1POS RED Power to the Board HSG SUB ASY RED Conn Housing RCP 1 POS ST Bulk Product Highlights:Housing15 AMP Series, 30 AMP Series, 45 AMP SeriesConnector Type = Single-Pole Modular ConnectorCurrent = 20 Amps., 30 Amps., 40 Amps.Housing Color = RedSearch Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant PLUG, CONNECTOR, HOUSING, AMP Plug; wire-wire; AMP Power Series 15/30/45; hermaphrodite; PIN:1 HSG SUB ASY,RED

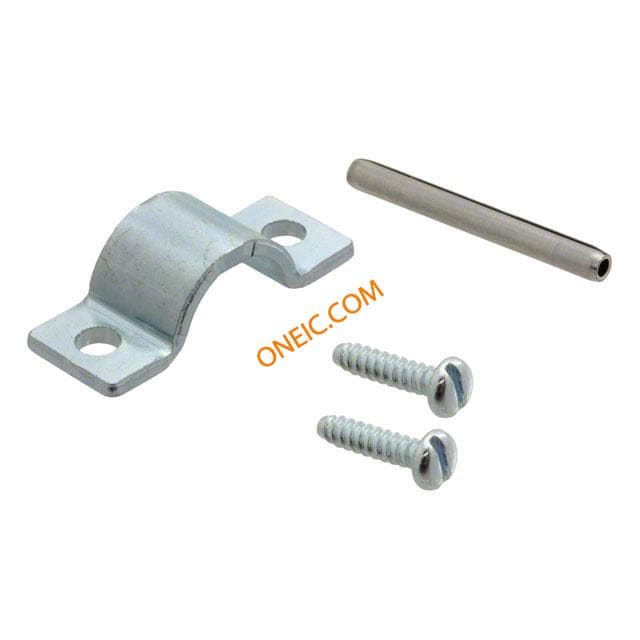

647747-3
