点击放大查看

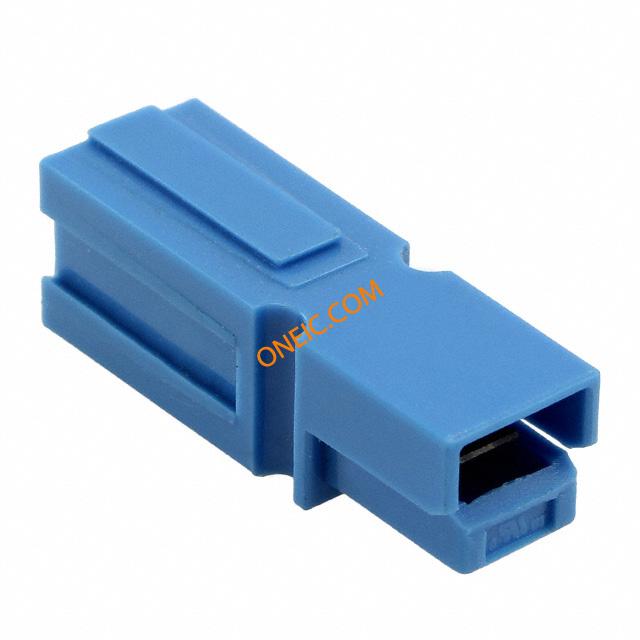

1445957-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 1 POS ST Bulk Power Connectors CONN HOUSING 1POS BLUE Power to the Board HSG SUB ASY BLUE Power Connectors Product Highlights:Housing15 AMP Series, 30 AMP Series, 45 AMP SeriesConnector Type = Single-Pole Modular ConnectorCurrent = 20 Amps., 30 Amps., 40 Amps.Housing Color = BlueSearch Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant HSG SUB ASY,BLUE |
| 分类 |
商业参数
| 标准包装规格 | 1,000 | 产品类别 | Power to the Board |
| 标准包装数量 | Bag | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 标准编号 | UL |
| UL阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
机械参数
| 颜色 | Blue | 宽度 | 7.4 mm [ .291 in ] |
| 高度 | 7.4 mm [ .291 in ] | 长度 | 24.6 mm [ .968 in ] |
| 密封型 | 不密封 | 包装方式 | Bulk |
| 壳体颜色 | 蓝色 | 电缆类型 | 分离式导线 |
| 导线线规 | 20 – 10 | 触头类型 | Non Gendered |
| 安装类型 | Free Hanging (In-Line) | 电缆直径 | 993 – 12066 |
| 连接器类型 | Non Gendered | 接触镀层 | Tin Lead |
| 紧固类型 | Spring Retention | 排数 | 1 |
| 壳体材料 | Polycarbonate (PC) | 包装数量 | 1000 |
| 面板安装类型 | 不带 | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male), Socket (Female) | 接触件端接 | Crimp |
| 位数 | 1 | 外壳尺寸-插件 | 插头/插座 |
| 绝缘材料 - 材质 | Polycarbonate (PC) | 线规或范围 - AWG | 20-10 |
产品信息
| 备注 | Contacts Not Provided | 产品特性 | Stackable |
| 产品子类型 | Housings | 应用细节 | Power |
