1744042-1

点击放大查看

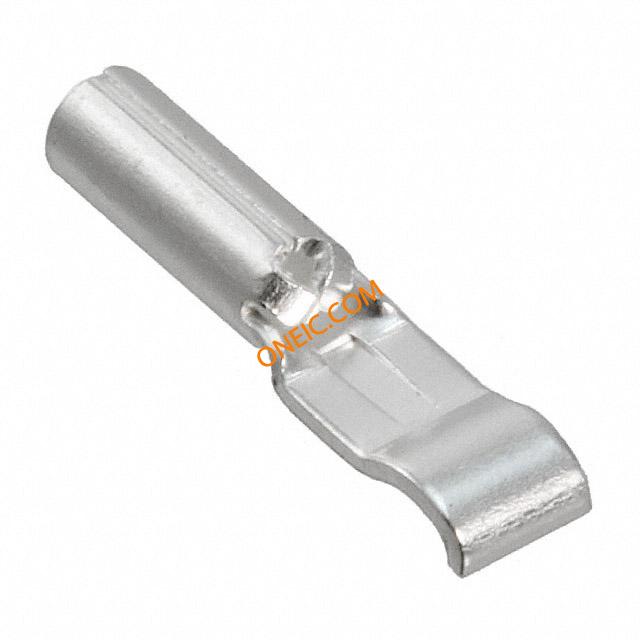

1744042-1

制造商
TE Connectivity Ltd.
描述Contact SKT Crimp ST Cable Mount Loose Piece Power Connectors CONN TERM NON GENDERED 16-20AWG Heavy Duty Power Connectors L/P CONTACT,16-20AWG Power Connectors Product Highlights:Contact15 AMP SeriesWire Size (AWG/CM) = 16 AWG, 18 AWG, 20 AWGCurrent = 20 Amps.Wire Insulation Diameter, Max. = 11.18 mmSearch Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant AMP Power 15 Series 16-20 AWG Discrete Wire Crimp Closed Barrel Contact L/P CONTACT,16-20AWG
分类
连接器解决方案接触件接触件（通用）
对参数有疑问？问 AI 助手

商业参数

其他名称17440421标准包装规格2,000
标准包装数量Bag工厂包装数量500

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
UL档案号E28476标准编号UL
UL阻燃等级UL 94V-0

电气参数

供电电压600最大额定电流20 A
连接器类型 - 电压输入冷间锻造

机械参数

镀层银包装方式Bulk
电缆类型分离式导线导线线规16-20 AWG
触头类型Non Gendered触点形状直式
安装类型闭式压线筒释放力带有
电缆直径993 – 2800连接器类型线到线
接触镀层Silver壳体镀层Nickel
插入件材料铜合金触头材料Copper
包装数量2000端接样式插针/插座
接触件端接Crimp接触镀层厚度150 µm [ 3.81 µin ]
护套（绝缘）厚度50 µm [ 1.27 µin ]

产品信息

类型Stamped系列16 AMP
产品子类型Contacts应用细节Power

环境参数

工作温度-40 – 105 °C [ -40 – 221 °F ]
