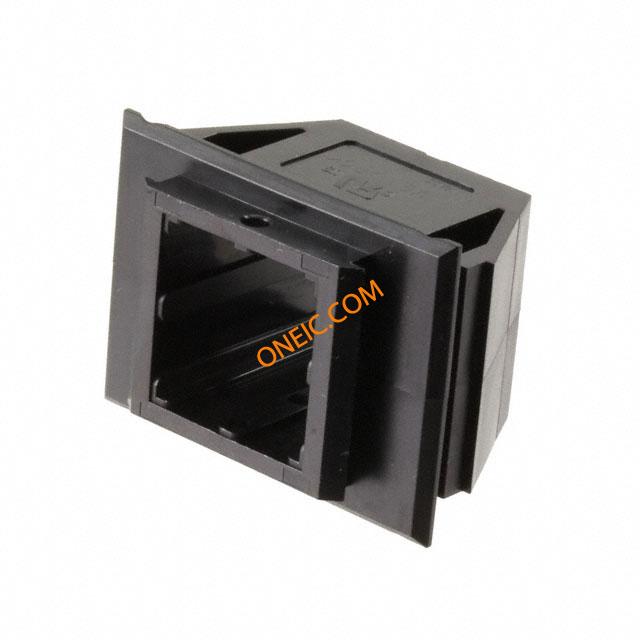

1604077-1

点击放大查看

1604077-1

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 1 POS ST Power Connectors ACCESSORY RCPT FRAME BLACK Power to the Board RECEPT HOUSING 2 3 and 4 POLE Conn Housing RCP 1 POS ST Search Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant 15/30/45 Power Series 2 x 2 inch Wire to Panel Receptacle Frame Housing HSG,2X2 POWER PROD RECPT
分类
连接器解决方案压接与焊接端子/接头压接插座
对参数有疑问？问 AI 助手

商业参数

产品类别Power to the Board标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant

电气参数

连接器阻抗180°最大额定电流20 A, 30 A, 40A

机械参数

颜色Black宽度25.8
高度28.1 mm [ 1.11 in ]长度38.6 mm [ 1.52 in ]
材料（通用）Polycarbonate (PC)包装方式包装
安装类型Straight连接器类型母端
安装样式Wire排数1
壳体材料Polycarbonate (PC)包装数量1
面板安装类型带有端接样式Crimp
第一触头极性Socket (Female)触点数2, 4, 3

产品信息

类型Housing连接器性别RCP
系列AMP Power产品子类型Connectors
附件类型Receptacle Frame适用产品/相关产品Power Series 15/30/45

文档与媒体

PDF 文档
1650929.pdf
