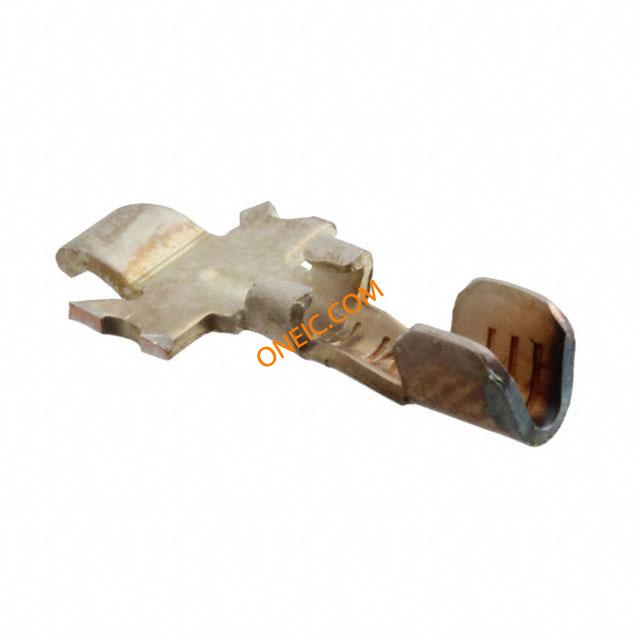

点击放大查看
1604113-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece Power Connectors CONN TERM NON GENDERED 16-20AWG Power to the Board CONT,15A PWR PROD STRIP,SILVER Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:Contact15 AMP SeriesWire Size (AWG/CM) = 16 AWG, 18 AWG, 20 AWGCurrent = 20 Amps.Wire Insulation Diameter, Max. = 11.18 mmSearch Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant TERM BLADE NON-GENDR 16-20AWG CONT,15A PWR PROD,STRIP,SILVER |
| 分类 |
商业参数
| 其他名称 | A111013CT | 产品类别 | Power to the Board |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 5000 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| UL档案号 | E28476 | 标准编号 | UL |
| UL阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 20 A | 连接器类型 - 电压输入 | 冷间锻造 |
机械参数
| 镀层 | 银 | 包装方式 | Tape & Reel (TR) |
| 电缆类型 | 分离式导线 | 导线线规 | 16-20 AWG |
| 端接方式 | Crimp | 触头类型 | Power |
| 触点形状 | 直式 | 安装类型 | 开式压线筒 |
| 释放力 | 带有 | 电缆直径 | 993 – 2800 |
| 连接器类型 | Connector Power | 接触镀层 | Silver |
| 外壳材料（壳体） | 镍 | 插入件材料 | 铜合金 |
| 触头材料 | Copper | 包装数量 | 3000 |
| 端接样式 | 插针/插座 | 接触件端接 | Crimp |
| 接触镀层厚度 | 200 µm [ 5.08 µin ] | 线规或范围 - AWG | 20-18-16 |
| 护套（绝缘）厚度 | 50 µm [ 1.27 µin ] | ||
产品信息
| 类型 | Stamped | 连接器性别 | PIN |
| 产品子类型 | 端子 | 应用细节 | Power |
环境参数
| 工作温度 | -40 – 105 °C [ -40 – 221 °F ] | ||
